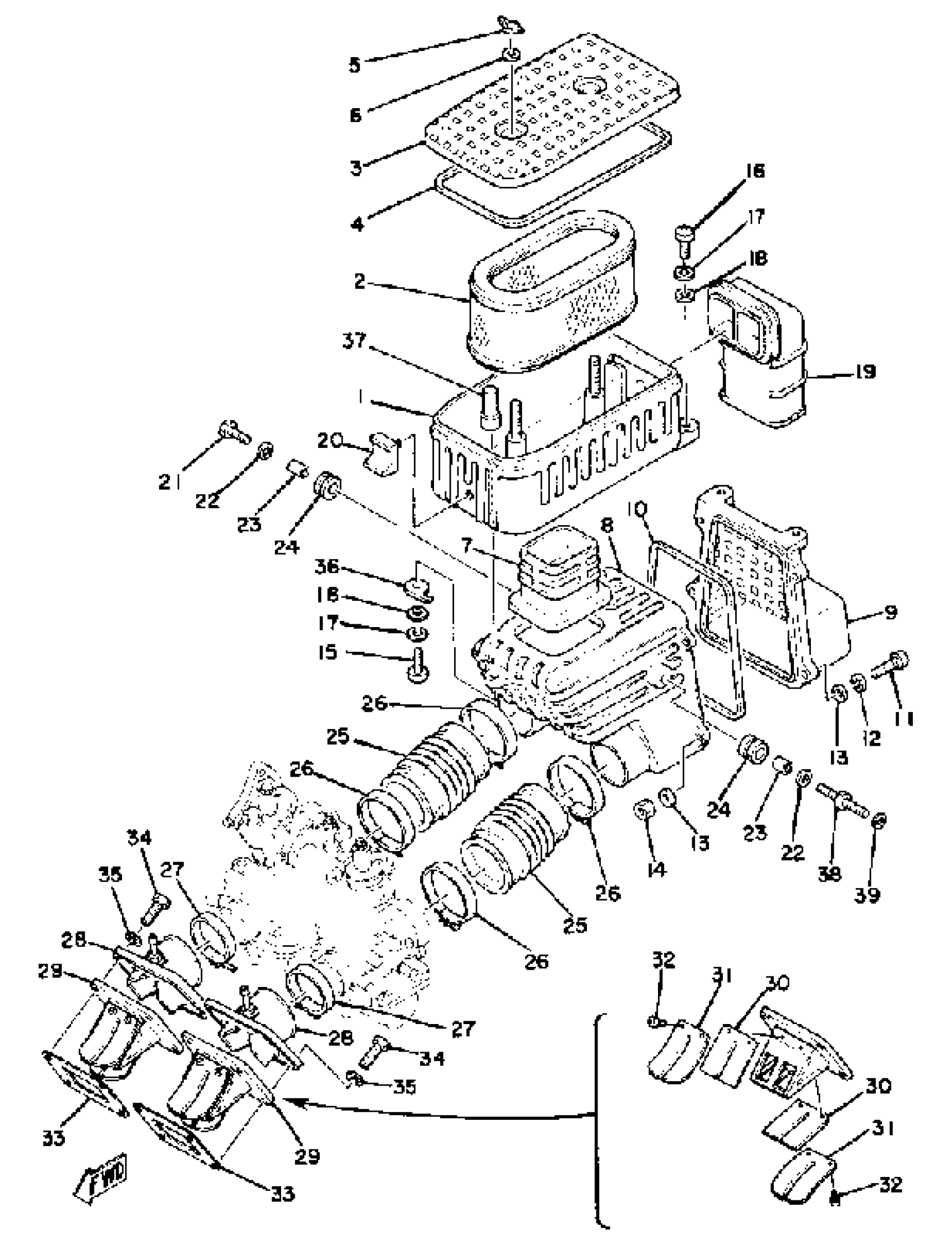

Yamaha RD400F (RD400) 1979 INTAKE Diagram
#
1
CASE, AIR CLEANER 1
(2V0-14411-00-00)
Unavailable
2
ELEMENT, AIR CLNR
(2V0-14451-00-00)
Unavailable
3
CAP, CLEANER CASE 1
1A0-14412-01-00
Unavailable
6
WASHER, PLATE
90202-05101-00
Unavailable
7
PIPE
2R9-14419-00-00
Unavailable
8
SILENCER, INTAKE 1
(1A0-14431-00-00)
Unavailable
9
SILENCER, INTAKE 2
(1A0-14441-00-00)
Unavailable
13
. WASHER, PLAIN
92990-05200-00
Unavailable
16
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
WASHER, PLAIN (646)
92990-06600-00
Unavailable
19
DUCT
(3J7-14437-00-00)
Unavailable
20
GROMMET
(1A0-14435-01-00)
Unavailable
21
BOLT, HEXAGON
97017-06020-00
Unavailable
22
WASHER, PLATE
90201-06380-00
Unavailable
23
COLLAR
90387-07020-00
Unavailable
24
GROMMET 839774310000
90480-14023-00
Unavailable
25
JOINT, AIR CLNR 1
(2V0-14453-00-00)
Unavailable
26
CLAMP HOSE 278144550000
90460-49058-00
Unavailable
27
CLAMP, HOSE (5H0)
90460-43179-00
Unavailable
28
JOINT, CARBURETOR
2V0-13565-00-00
Unavailable
29
REED VALVE ASSEMBLY
2V0-13610-00-00
Unavailable
30
REED, VALVE
(2V0-13613-00-00)
Unavailable
31
. STOPPER, REED VALVE
345-13616-70-00
Unavailable
32
SCREW, PN/HD.W/WSHR
(97602-03110-00)
Unavailable
33
GASKET, VALVE SEAT
87A-13621-00-00
Unavailable
34
BOLT, HEXAGON
97017-06025-00
Unavailable
35
WASHER, PLAIN (646)
92990-06600-00
Unavailable
36
CLAMP
(90464-10033-00)
Unavailable
37
FILTER
(2V0-14827-00-00)
Unavailable
38
BOLT
(2V0-14428-00-00)
Unavailable
39
WASHER, SPRING
92995-06100-00
Unavailable
