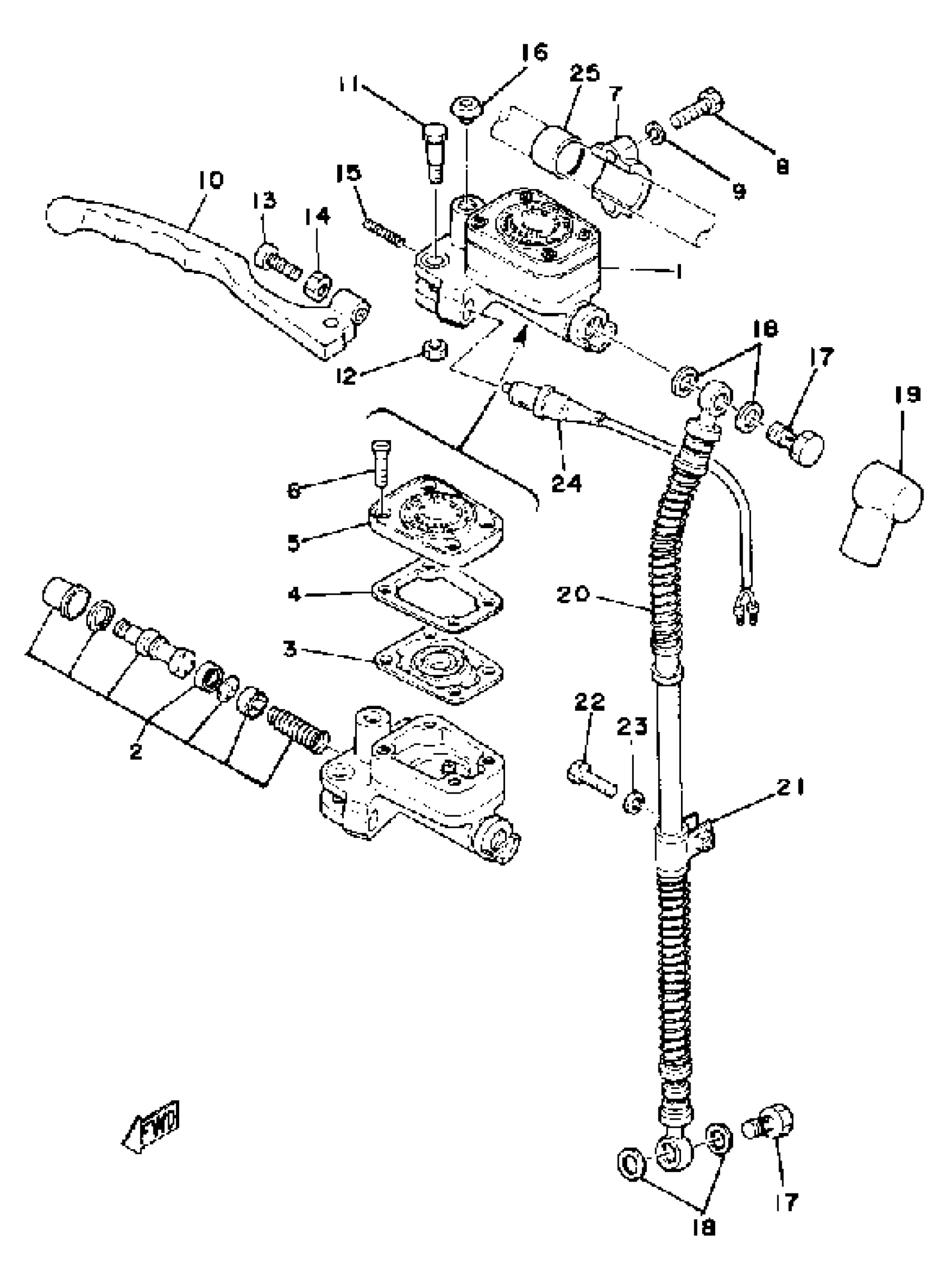

Yamaha RD400F (RD400) 1979 FRONT MASTER CYLINDER - BRAKE HOSE Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

1E7-25850-02-00

Unavailable

2

. CYLINDER KIT, MASTER (REF NO 3~9)

535-W0041-10-00

Unavailable

3

. DIAPHRAGM RESERVOR

1A0-25854-01-00

Unavailable

4

. BUSH, DIAPHRAGM

1A0-25855-01-00

Unavailable

5

. RESERVOIR CAP ASSEMBLY

1A0-25893-01-00

Unavailable

6

YBS53-525 SCREW,FLAT HEAD

98780-05525-00

Unavailable

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92995-06100-00

Unavailable

10

LEVER, (R.H)

2W1-83922-00-00

$31.99

11

BOLT (4L0)

90109-06577-00

$5.60

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

SCREW (2L0)

90149-06131-00

$8.49

14

NUT HEXAGON 306839270000

90170-06010-00

$8.49

15

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

16

PLUG (341-26329-00)

90338-09012-00

Unavailable

17

BOLT, UNION(3GM)

90401-10159-00

Unavailable

18

WASHER, PLATE(481)

90201-10118-00

Unavailable

19

BOOT, MASTER CYLINDER

360-25862-00-00

Unavailable

20

HOSE, BRAKE 1

2R8-25872-00-00

Unavailable

21

HOLDER, BRKE HOSE 2

(2R8-25876-00-00)

Unavailable

22

BOLT, HEXAGON

97017-06025-00

$4.24

23

WASHER, SPRING

92995-06100-00

Unavailable

24

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable

25

COLLAR

(90387-22591-00)

Unavailable
