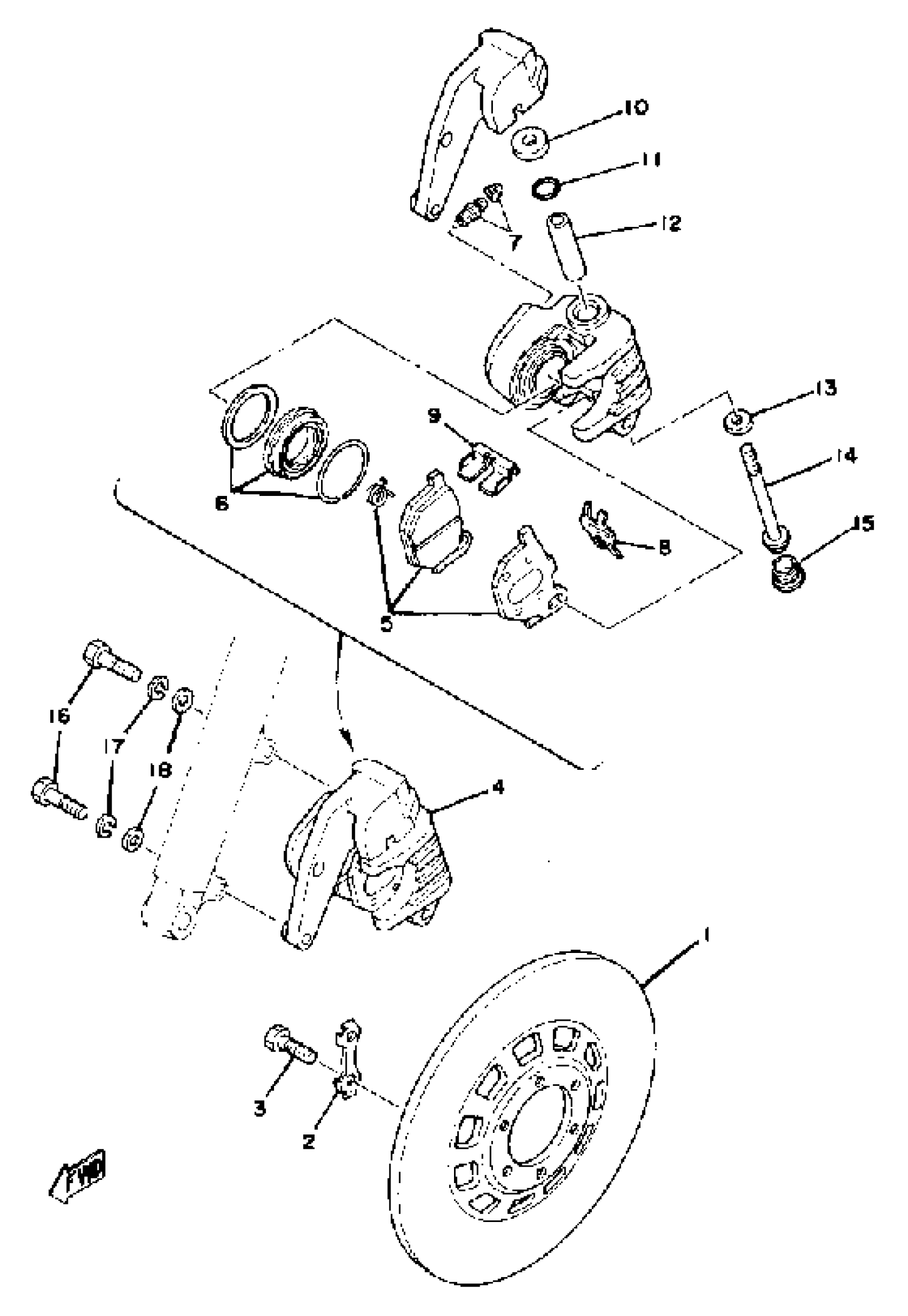

Yamaha RD400F (RD400) 1979 FRONT DISC BRAKE - CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

1L9-25831-00-00

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY

(2V0-25810-00-00)

Unavailable

5

. BRAKE PAD KIT, FRNT

2R8-W0045-00-00

Unavailable

6

CALIPER SEAL KIT

2G2-W0047-03-00

$40.99

7

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

8

. SUPPORT, PAD

2G2-25919-00-00

Unavailable

9

RETAINER, CALIPER

(2V0-25849-00-00)

Unavailable

10

. WASHER, PLATE

90201-08689-00

Unavailable

11

. O-RING KIT, CALIPER

2G2-W0044-00-00

Unavailable

12

. SLEEVE, CALIPER

2G2-25838-00-00

Unavailable

13

. WASHER, PLATE

90201-09690-00

Unavailable

14

. BOLT 1

2G2-25821-00-00

Unavailable

15

. PLUG

2G2-25916-00-00

Unavailable

16

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

18

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable
