Description

Price

1

FRONT FLASHER ASSEMBLY

4G5-83310-90-00

Unavailable

2

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

LENS, FLASHER

341-83312-70-00

Unavailable

5

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

6

. BOLT, STUD

360-83367-09-00

Unavailable

7

COLLAR, FLASHER 1

360-83316-00-00

Unavailable

8

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

9

WASHER, PLAIN

92990-08200-00

Unavailable

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

NUT(6L2)

95333-08600-00

$2.49

12

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

Unavailable

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

15

LENS, FLASHER

341-83312-70-00

Unavailable

16

. SCREW, LENS FITTING

341-83337-00-0

Unavailable

17

. BOLT, STUD

360-83367-09-00

Unavailable

18

COLLAR, FLASHER 2

360-83326-00-00

Unavailable

19

GROMMET(3BC)

90480-18488-00

Unavailable

20

WASHER, PLATE (1A0)

90201-08612-00

Unavailable

21

CORD

256-83336-01-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

23

NUT(6L2)

95333-08600-00

$2.49

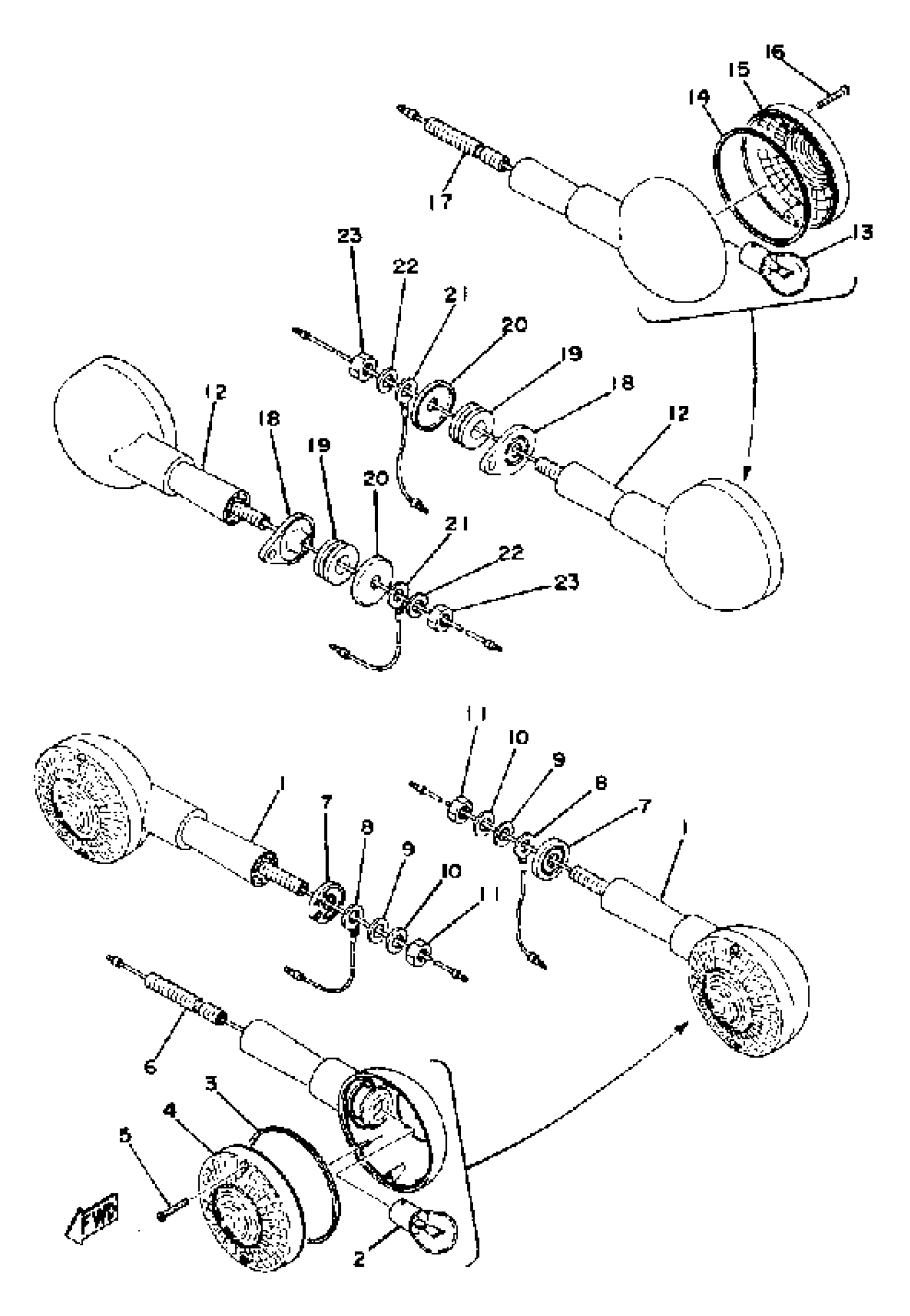

Yamaha RD400F (RD400) 1979 FLASHER LIGHT Diagram

FRONT FLASHER ASSEMBLY

. BULB (12V-32CP)

GASKET, FLASHER LENS

LENS, FLASHER

SCREW, COUNTERSUNK

. BOLT, STUD

COLLAR, FLASHER 1

WIRE, EARTH (GROUND)

WASHER, PLAIN

YBS67-8 WASHER, SPRING

NUT(6L2)

R FLSHR LITE ASSEMBLY

. BULB (12V-32CP)

GASKET, FLASHER LENS

LENS, FLASHER

. SCREW, LENS FITTING

. BOLT, STUD

COLLAR, FLASHER 2

GROMMET(3BC)

WASHER, PLATE (1A0)

CORD

YBS67-8 WASHER, SPRING

NUT(6L2)
