BRAKE PEDAL - REAR MASTER CYLINDER

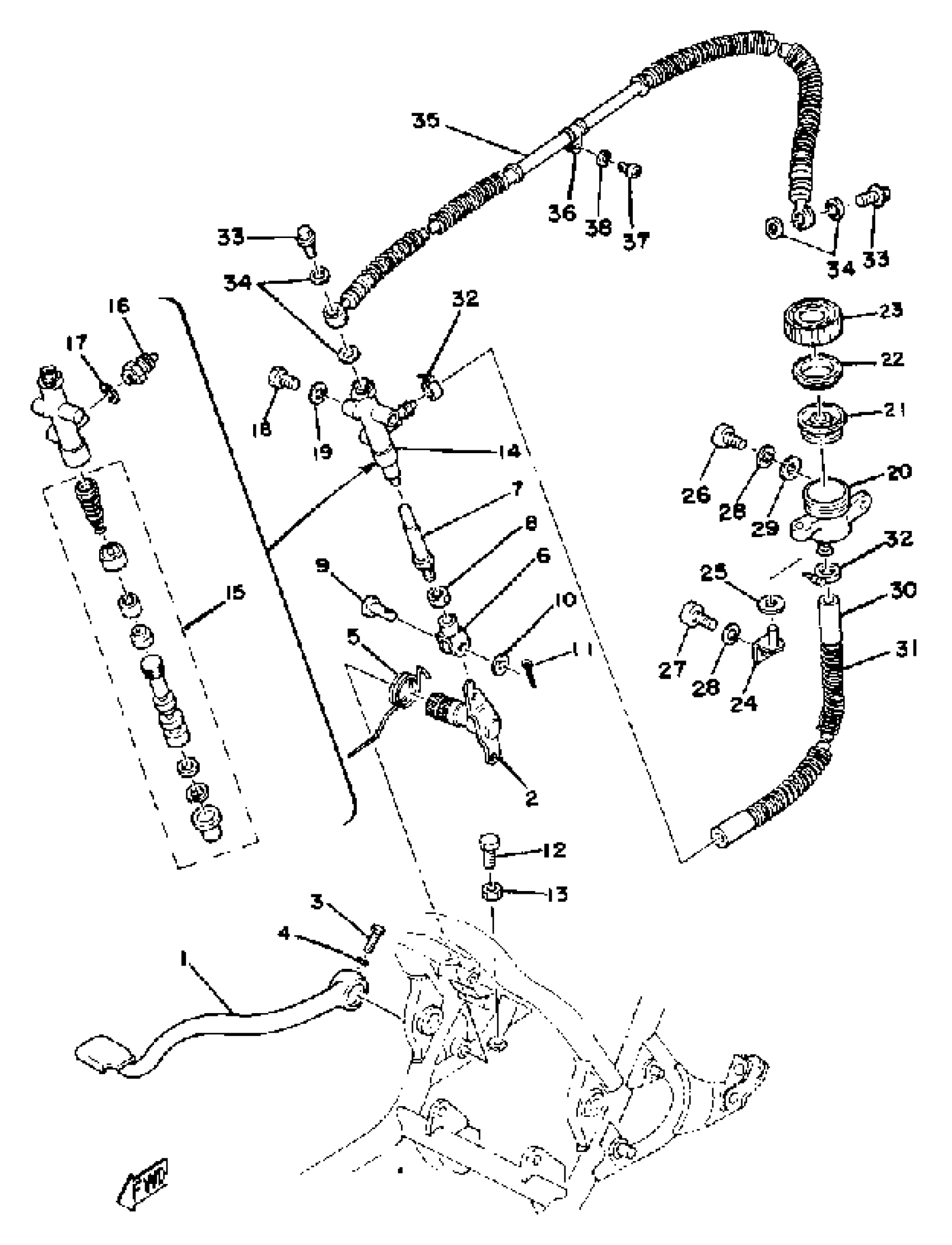

Yamaha RD400F (RD400) 1979 BRAKE PEDAL - REAR MASTER CYLINDER Diagram
#
1
PEDAL, BRAKE
(2R8-27211-00-33)
Unavailable
2
SHAFT, BRAKE PEDAL
(2V0-27212-00-00)
Unavailable
4
WASHER, SPRING
92995-06100-00
Unavailable
5
SPRING, BRAKE PEDAL
(2R8-27216-00-00)
Unavailable
6
JOINT
1A1-27222-01-00
Unavailable
7
ROD, BRAKE
1A1-27231-01-00
Unavailable
8
. NUT
95380-08700-00
Unavailable
11
PIN, COTTER
91490-16020-00
Unavailable
14
MSTR CYLINDER ASSEMBLY
(2V0-25850-50-00)
Unavailable
15
. CYLINDER KIT
1A1-20000-50-00
Unavailable
16
BOLT, UNION
(1A1-25899-50-00)
Unavailable
17
GASKET
(1A1-25898-50-00)
Unavailable
18
BOLT, HEXAGON
97017-08016-00
Unavailable
19
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
20
TANK, RESERVOIR
1A1-25894-01-00
Unavailable
21
DIAPHRAGM, RESERVER
360-25854-01-00
Unavailable
22
BUSH,DIAPHRAGM
2GU-25855-00-00
Unavailable
23
CAP, RESERVOIR
2KF-25852-50-00
Unavailable
24
BRACKET, DAMPER
(1A1-21798-00-00)
Unavailable
25
. WASHER, PLATE
90201-06050-00
Unavailable
26
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
27
SCREW, PAN
98507-06014-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, PLAIN (646)
92990-06600-00
Unavailable
30
HOSE, RESERVOIR
1A1-25895-00-00
Unavailable
31
SPRING, COMPRESSION
(90501-10406-00)
Unavailable
32
BAND, HOSE 15
90601-11525-00
Unavailable
33
BOLT, UNION(3GM)
90401-10159-00
Unavailable
34
WASHER, PLATE(481)
90201-10118-00
Unavailable
35
HOSE, BRAKE 1
(2R8-25872-50-00)
Unavailable
36
CLAMP 1
90461-08031-00
Unavailable
37
SCREW, PAN
98517-06012-00
Unavailable
38
WASHER, SPRING
92995-06100-00
Unavailable
