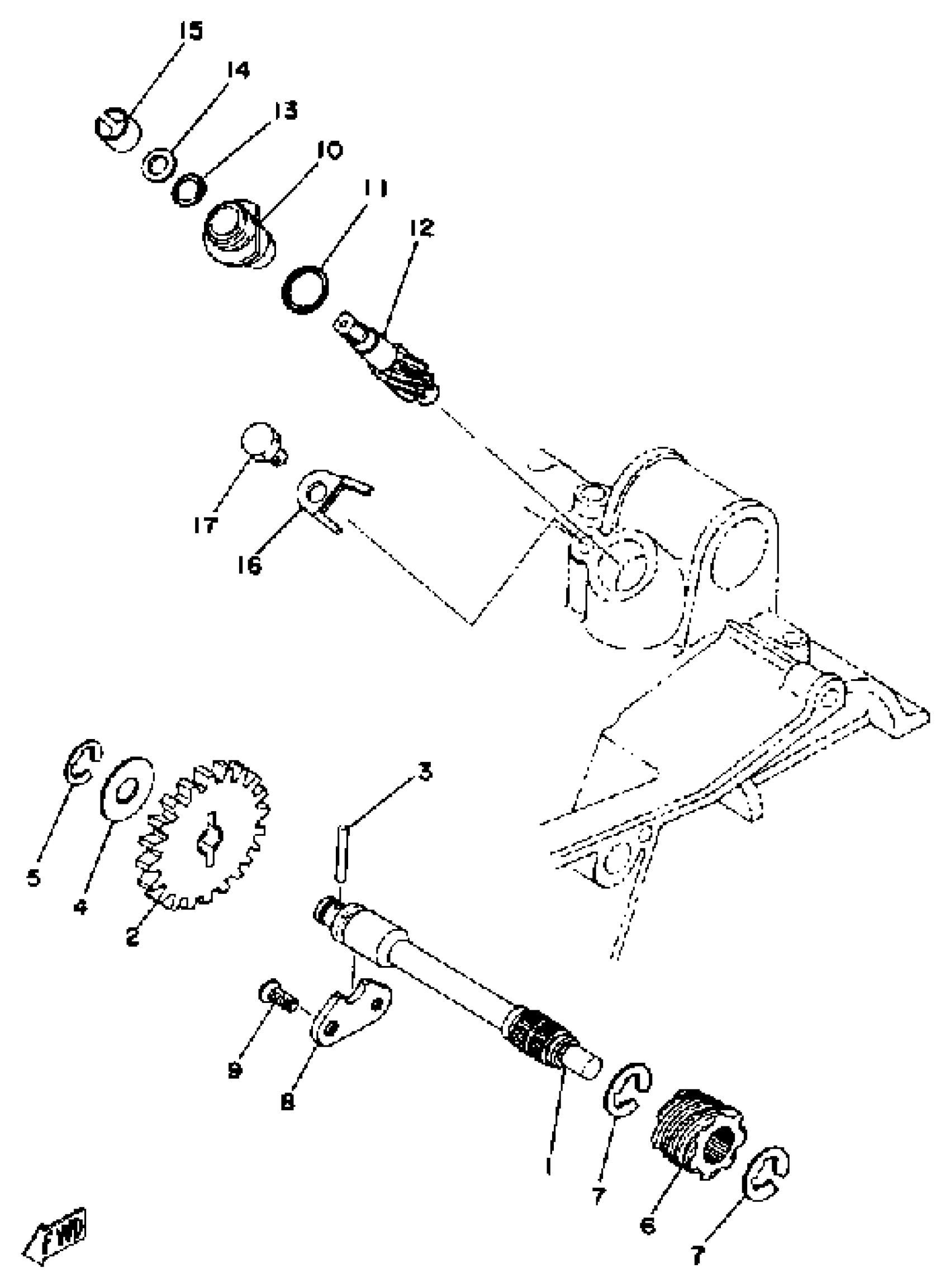

Yamaha RD400E (RD400) 1978 TACHOMETER GEAR Diagram

INACTIVE PART NUMBER

278-17861-00-00

Unavailable

GEAR, PRIMARY (20T)

278-17851-00-00

Unavailable

PIN,DOWEL (137)

93603-22028-00

$3.76

WASHER, PLATE(52H)

90201-105J4-00

$9.49

CIRCLIP(2R6)

99001-08600-00

$8.49

INACTIVE PART NUMBER

278-17831-00-00

Unavailable

CIRCLIP

99006-10600-00

$9.49

INACTIVE PART NUMBER

278-17812-00-00

Unavailable

SCREW, FLAT

98707-05012-00

$1.71

HOUSING ASSEMBLY, TACH (214-17811-01)

353-17810-00-00

Unavailable

O-RING (137)

93210-13016-00

$7.49

GEAR, DRIVEN

214-17841-01-00

Unavailable

O-RING (214)

93210-07100-00

$7.49

SHIM (7.5-10.8-0.4)

214-17847-00-00

Unavailable

BUSH, FORMED (214-17815-00) 001

90383-10005-00

Unavailable

STOPPER

5U7-17812-00-00

Unavailable

BOLT(3JP)

97017-06010-00

Unavailable
