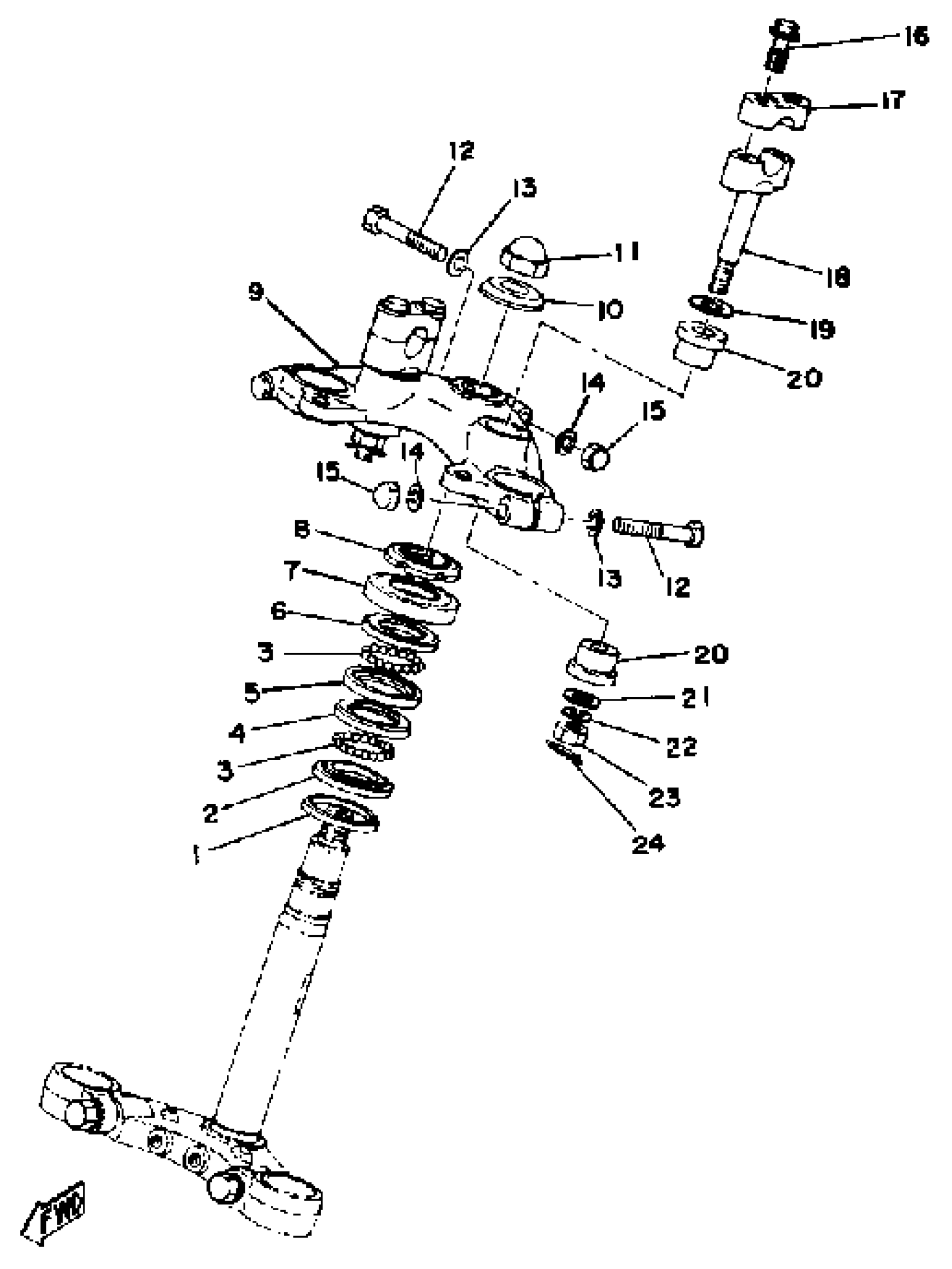

Yamaha RD400E (RD400) 1978 STEERING Diagram

#

Description
Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

B6E-23411-00-00

$8.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

RACE,BALL 2

4FP-F3412-10-00

Unavailable

6

RACE, BALL 1

4FP-F3411-20-00

$9.99

7

COVER, BALL RACE

136-23415-00-00

$8.99

8

NUT

90179-25004-00

$24.99

9

INACTIVE PART NUMBER

1A0-23435-01-98

Unavailable

10

WASHER, SPEC''L SHAP

90209-17057-00

Unavailable

11

NUT, CROWN

90176-16016-00

Unavailable

12

BOLT, HEXAGON

97013-08055-00

$2.55

13

WASHER, PLATE 1562722600

90201-08083-00

$9.49

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

NUT, CROWN

95303-08800-00

$9.49

16

BOLT, FLANGE

95814-08040-00

Unavailable

17

HOLDER, HANDLE UPPER

1E6-23441-00-00

Unavailable

18

HOLDER, HANDLE LOWER

4AA-23442-01-98

Unavailable

19

WASHER, PLATE(47X)

90201-121J0-00

Unavailable

20

BUSH (1A0)

90385-12027-00

Unavailable

21

WASHER (737 STEERING)

90201-10146-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

23

NUT (682)

95380-10700-00

Unavailable

24

CLIP 136253750000

90468-12006-00

Unavailable
