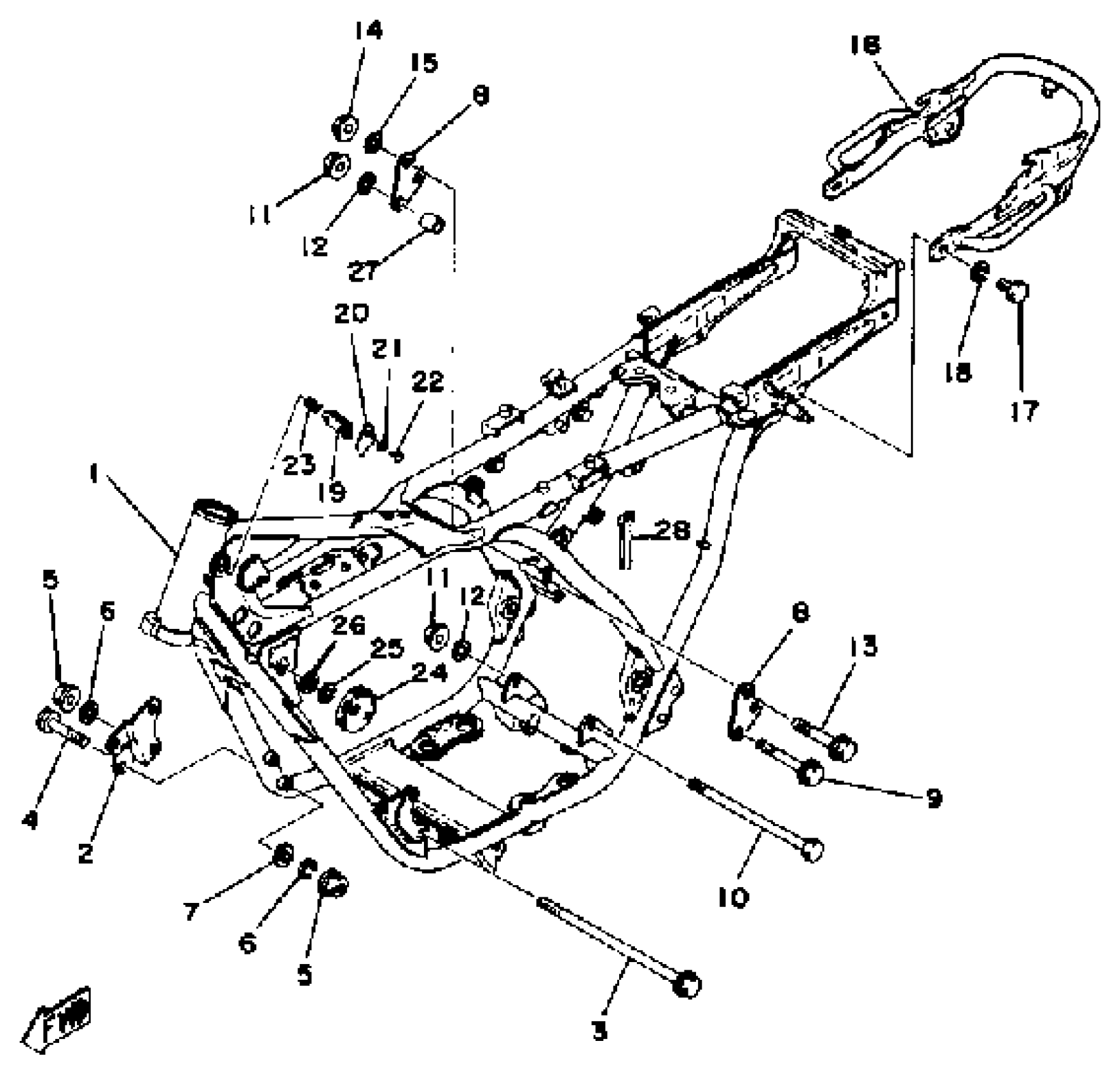

Yamaha RD400E (RD400) 1978 FRAME Diagram
#
Description
Price
1
INACTIVE PART NUMBER
1A1-21110-00-33
Unavailable
2
STAY, ENGINE 4
1A0-21317-00-33
Unavailable
3
BOLT,WASHER BASED
90105-08033-00
Unavailable
7
WASHER, PLAIN
92990-08200-00
Unavailable
8
STAY, ENGINE 2
1A1-21315-00-00
Unavailable
9
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
10
BOLT
90101-10297-00
Unavailable
16
INACTIVE PART NUMBER
1A0-21645-10-00
Unavailable
17
BOLT, HEXAGON
97013-08020-00
Unavailable
19
STEERING LOCK ASSY
2A6-23408-00-00
Unavailable
20
CAP, HANDLE LOCK
3DM-23484-00-00
Unavailable
21
WASHER, WAVE
90206-04003-00
Unavailable
22
RIVET 214234830000
90269-04003-00
Unavailable
23
SPRING, CONICAL (1E6)
90502-09024-00
Unavailable
24
REFLECTOR, FRONT 1
355-85111-01-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
. WASHER, PLAIN
92990-05200-00
Unavailable
27
COLLAR
90387-12101-00
Unavailable
28
BAND, SWITCH CORD
437-83936-11-00
Unavailable
