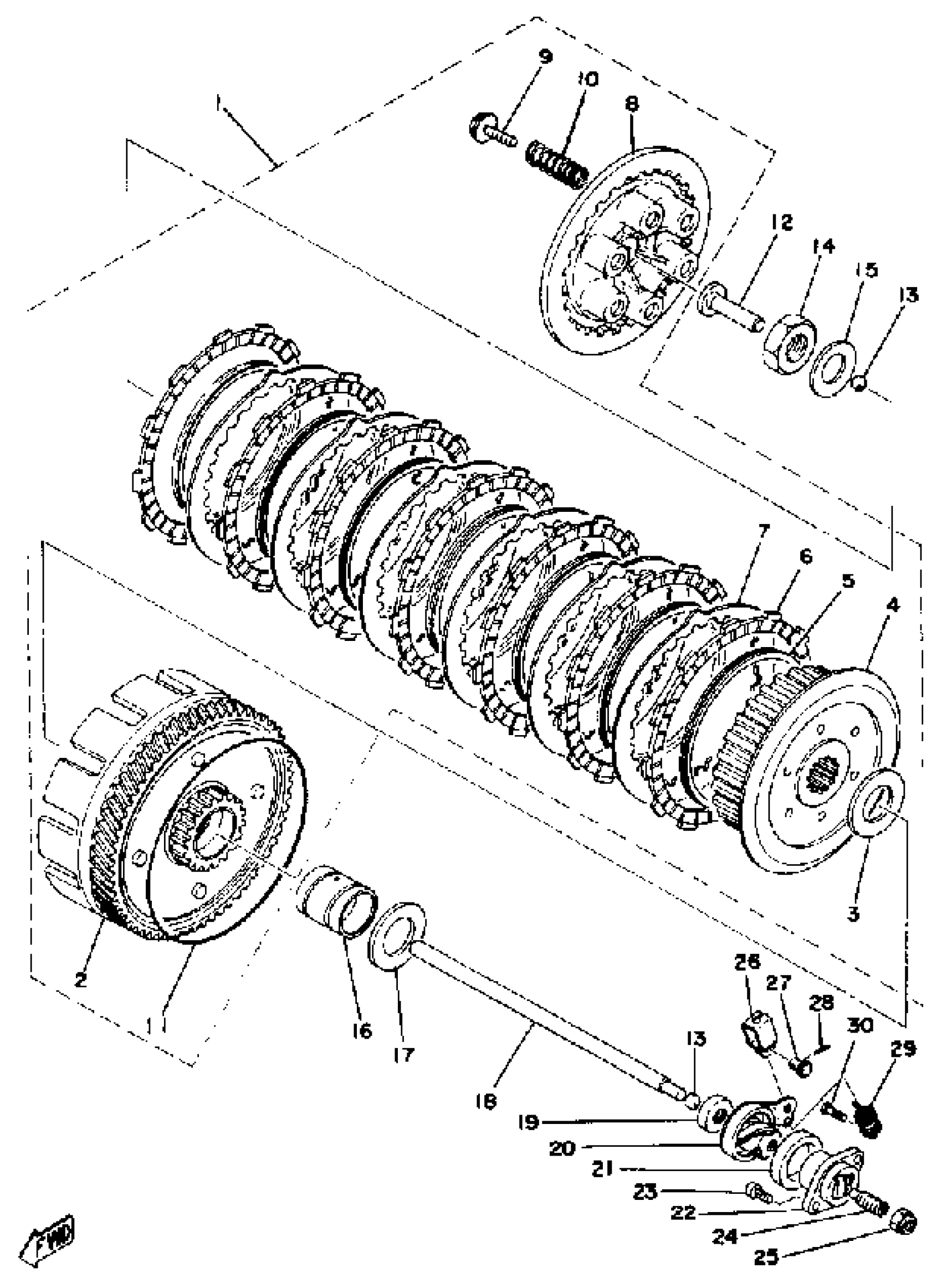

Yamaha RD400E (RD400) 1978 CLUTCH Diagram

#

Description
Price

1

INACTIVE PART NUMBER

1A1-16301-00-00

Unavailable

2

. PRI DRVN GEARCOMP (66T)

2R9-16150-00-00

Unavailable

3

PLATE, THRUST

360-16154-00-00

$21.99

4

BOSS, CLUTCH

1A0-16371-00-00

$79.99

5

RING, CUSHION

278-16367-00-00

$24.99

6

PLATE, FRICTION

5Y1-16331-01-00

$29.99

7

PLATE, CLUTCH 2

498-16325-10-00

$14.49

8

. PLATE, PRESSURE 1

1A0-16351-00-00

Unavailable

9

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

10

SPRING COMPRESSION168163330000

90501-23138-00

Unavailable

11

O-RING

93211-10232-00

Unavailable

12

ROD, PUSH

174-16356-00-00

$20.99

13

BALL

93505-16006-00

$8.49

14

NUT

90170-18089-00

Unavailable

15

SPRING

214-16119-00-00

Unavailable

16

SPACER

278-16181-01-00

Unavailable

17

PLATE, THRUST

360-16154-00-00

$21.99

18

ROD,PUSH

328-16357-00-00

Unavailable

19

OIL SEAL(12E)

93109-08061-00

Unavailable

20

PUSH LEVER ASSEMBLY

360-16340-00-00

Unavailable

21

SEAL, DUST

214-16347-01-00

Unavailable

22

HOUSING, PUSH SCREW

371-16396-00-00

Unavailable

23

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

24

BOLT SET 256163430100

90113-08021-00

Unavailable

25

NUT

90179-08179-00

Unavailable

26

JOINT

214-16389-00-00

Unavailable

27

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

28

. PIN, COTTER

91401-10015-00

Unavailable

29

SPRING TENSION 360163450000

90506-10069-00

Unavailable

30

HOOK, SPRING

132-16346-00-00

Unavailable
