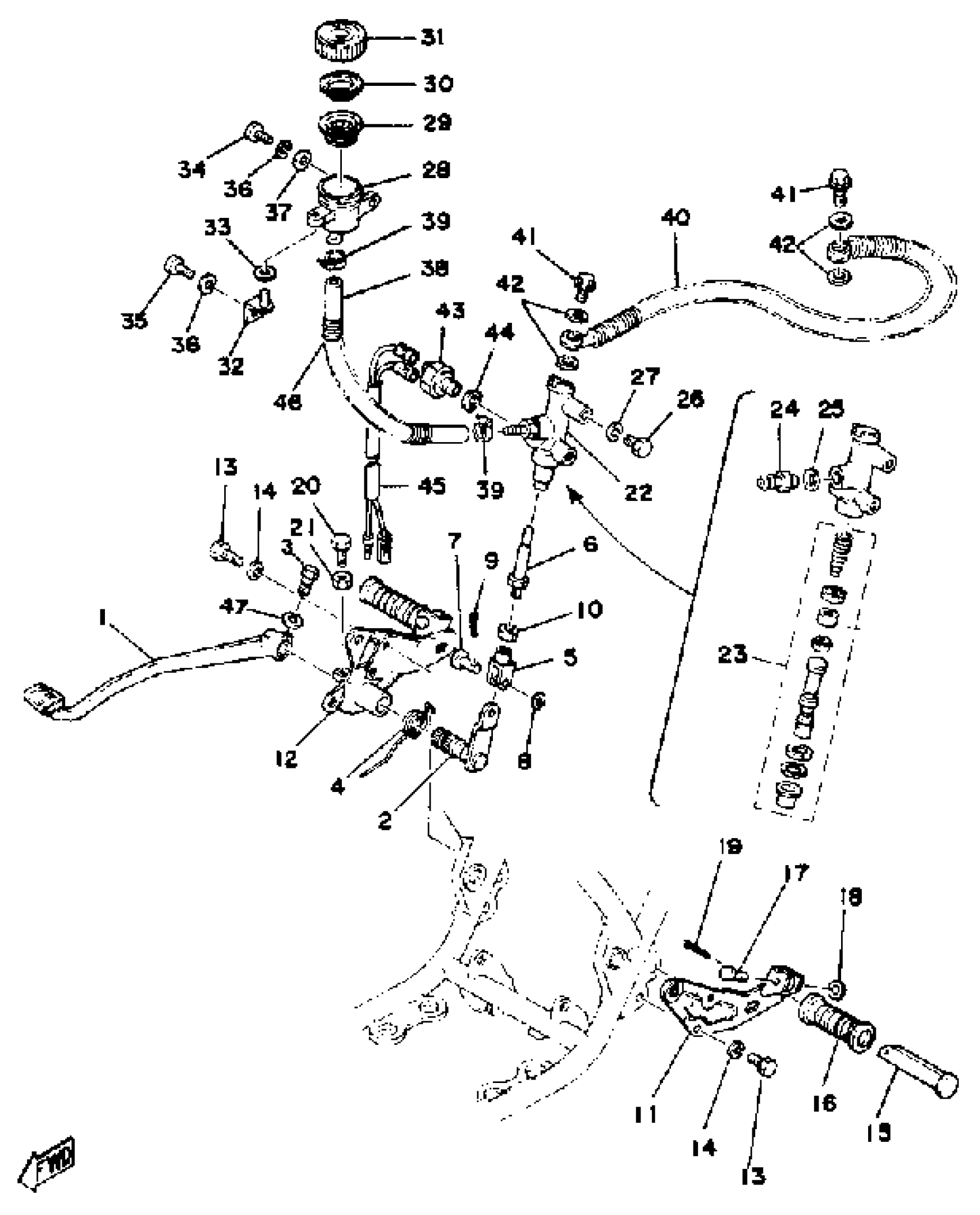

Yamaha RD400E (RD400) 1978 BRAKE PEDAL MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

1A0-27211-00-33

Unavailable

2

INACTIVE PART NUMBER

1A1-27212-01-00

Unavailable

3

BOLT (1J7)

90109-06468-00

$7.49

4

SPRING, TORSION (90508-35302)

90508-40348-00

Unavailable

5

JOINT

1A1-27222-01-00

Unavailable

6

ROD, BRAKE

1A1-27231-01-00

Unavailable

7

PIN W/HOLE 307181180000

90240-08013-00

$8.49

8

WASHER, PLATE 1562722600

90201-08083-00

$9.49

9

PIN, COTTER

91490-16020-00

Unavailable

10

. NUT

95380-08700-00

Unavailable

11

INACTIVE PART NUMBER

1A0-21445-01-33

Unavailable

12

INACTIVE PART NUMBER

1A0-21446-01-33

Unavailable

13

BOLT, HEXAGON

97013-08020-00

$1.16

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

16

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

17

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

18

WASHER, PLATE (888)

90201-20279-00

Unavailable

19

PIN, COTTER

91490-16020-00

Unavailable

20

BOLT, HEXAGON

97017-06025-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable

22

MSTR CYLINDER ASSEMBLY

1A1-25850-50-00

Unavailable

23

. CYLINDER KIT

1A1-20000-50-00

Unavailable

24

. INACTIVE PART NUMBER

1A1-25899-50-00

Unavailable

25

. INACTIVE PART NUMBER

1A1-25898-50-00

Unavailable

26

BOLT(JA9)

90101-08691-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

28

TANK, RESERVOIR

1A1-25894-01-00

Unavailable

29

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

30

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

31

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

32

INACTIVE PART NUMBER

1A1-21798-00-00

Unavailable

33

. WASHER, PLATE

90201-06050-00

Unavailable
