1976 Yamaha RD400 (RD400C) Stand - Footrest Diagram

← All diagrams

Find the part on the Stand - Footrest diagram for your 1976 Yamaha RD400 (RD400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

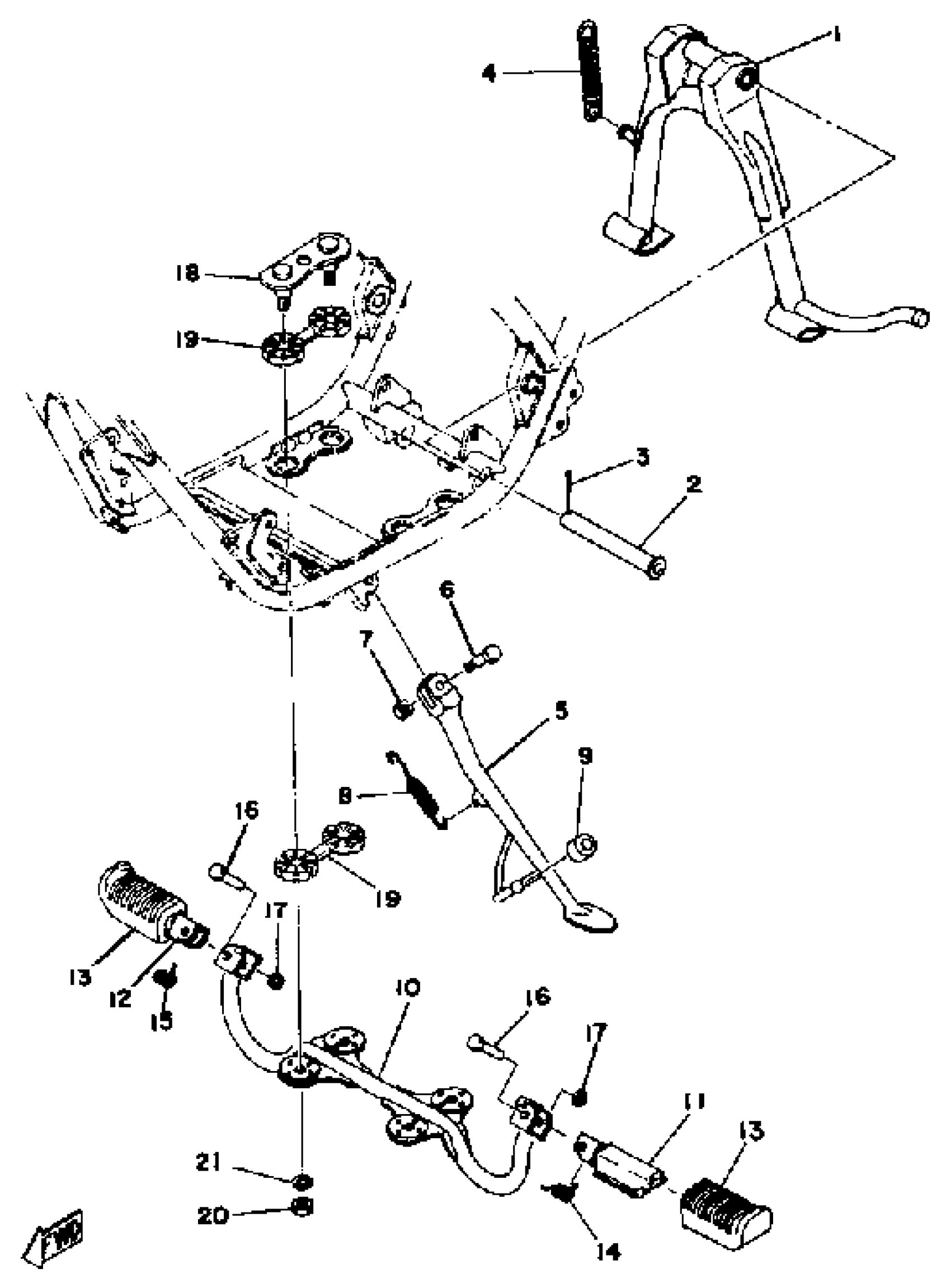

1976 Yamaha RD400 (RD400C) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, MAIN

(278-27111-00-00)

1
Out of stock

2

SHAFT, MAIN STAND

278-27112-00-00

1
Out of stock

3

PIN, COTTER

91490-30030-00

1

$7.15

In stock

4

SPRING, TENSION

90506-35058-00

1
Out of stock

5

STAND, SIDE

1A0-27311-00-33

1
Out of stock

6

BOLT 266273170000

90109-08034-00

1
Out of stock

7

NUT, HEXAGON (509)

90170-08158-00

1

$1.10

In stock

8

SPRING, TENSION (360)

90507-25023-00

1

$24.52

In stock

9

STOPPER

278-27314-00-00

1
Out of stock

10

BRACKET, FOOTREST 1

(1A0-27412-01-00)

1
Out of stock

11

FOOTREST

1J7-27451-00-00

1
Out of stock

12

FOOTREST

1A0-27461-00-00

1
Out of stock

13

COVER, FOOTREST

1A0-27413-00-00

1
Out of stock

14

. SPRING, TORSION

90508-20154-00

1
Out of stock

15

SPRING TORSION 371274560000

90508-20155-00

1
Out of stock

16

PIN (214-27418-00)

90243-08006-00

—

$10.68

In stock

17

—

$6.58

In stock

18

BOLT, FOOTREST

(1A0-27416-00-00)

1
Out of stock

19

DAMPER, FOOTREST

1A0-27414-00-00

1
Out of stock

20

NUT(3BM)

95314-10600-00

—

$1.74

In stock

20

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock
