1976 Yamaha RD400 (RD400C) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1976 Yamaha RD400 (RD400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

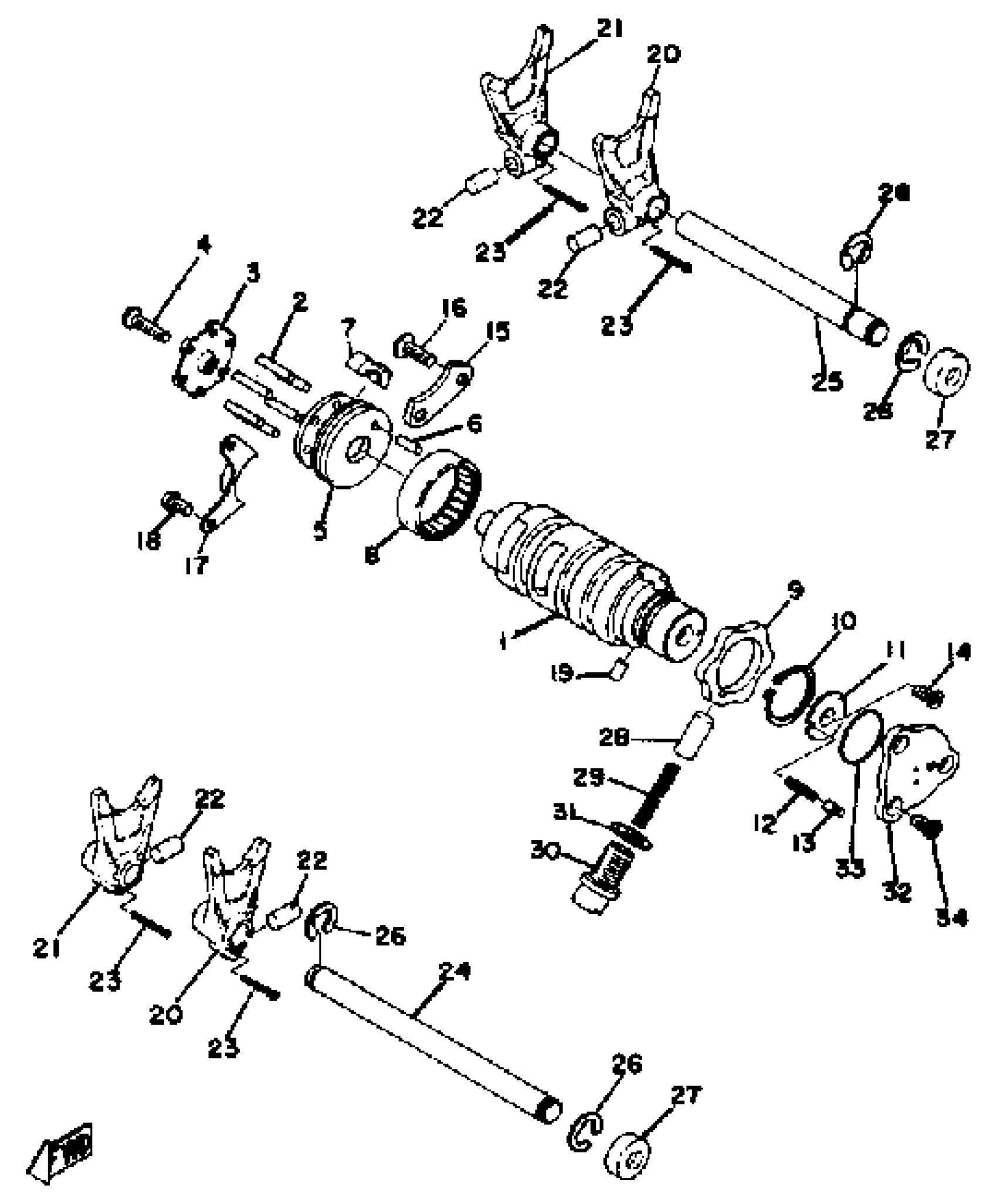

1976 Yamaha RD400 (RD400C) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

(360-18541-00-00)

1
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

. PLATE, SIDE 1

328-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05020-00

1
Out of stock

5

SEGMENT

(328-18185-00-00)

1
Out of stock

6

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

7

PLATE, PAWL

(328-18352-10-00)

1
Out of stock

8

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

9

PLATE, STOPPER

360-18141-01-00

1
Out of stock

10

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

11

PLATE, SIDE 2

278-18566-00-00

1
Out of stock

12

1

$6.17

In stock

13

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

14

SCREW, FLAT

98707-05012-00

1
Out of stock

15

PLATE, STOPPER 2

(328-18562-00-00)

1
Out of stock

16

SCREW, FLAT

98707-06014-00

—
Out of stock

17

GUIDE

328-18179-00-00

1
Out of stock

18

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

19

PIN, DOWEL (278)

93604-08071-00

—

$6.17

In stock

20

FORK, SHIFT 1

328-18511-01-00

1
Out of stock

21

FORK, SHIFT 2

328-18512-01-00

1
Out of stock

22

PIN, STRAIGHT

90250-08017-00

1
Out of stock

23

PIN, COTTER

91490-25020-00

—

$2.94

In stock

24

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

1
Out of stock

25

BAR, SHIF FRK GDE 2

(278-18535-00-00)

1
Out of stock

26

CIRCLIP

99006-10600-00

—

$6.91

In stock

27

PLUG(3AJ)

90338-22207-00

—

$3.92

In stock

28

STOPPER, CAM

278-18547-02-00

1
Out of stock

29

SPRING COMPRESSION278185570000

90501-10062-00

—
Out of stock

30

BOLT

90109-14002-00

—

$10.29

In stock

31

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

32

NEUTRAL SWITCH ASSY

1L9-82540-00-00

—
Out of stock

33

O-RING (371)

93210-29196-00

—

$6.45

In stock

34

SCREW, FLAT

98707-05012-00

1
Out of stock
