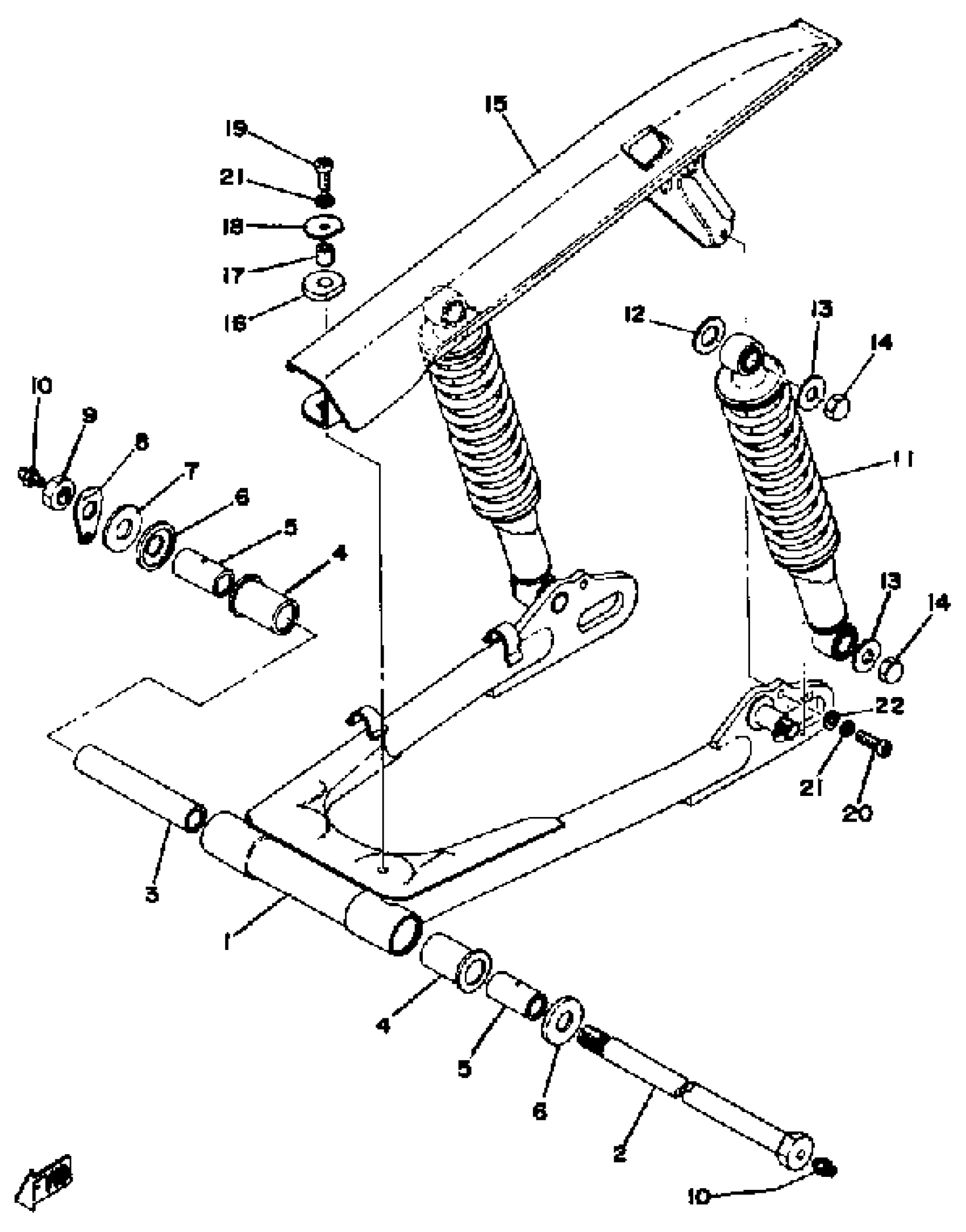

Yamaha RD400C (RD400) 1976 REAR ARM - REAR CUSHION - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(1A1-22110-01-33)

Unavailable

2

SHAFT, PIVOT

156-22141-00-00

Unavailable

3

COLLAR

90387-16128-00

Unavailable

4

BUSH 1482212300

90386-22018-00

$36.99

5

COLLAR

90387-16226-00

Unavailable

6

COVER,THRUST 1

1A0-22128-00-00

Unavailable

7

SHIM,REAR ARM

240-22127-00-00

$6.99

8

WASHER, LOCK

1A0-22149-00-00

Unavailable

9

NUT

90170-14800-00

$4.14

10

NIPPLE, GREASE

93700-06M03-00

Unavailable

11

SHK/ABS ASSEMBLY, REAR (1A1-22210-21)

1A1-22210-22-93

Unavailable

12

WASHER, PLATE (3X3)

90201-15797-00

$9.49

13

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

14

NUT, CROWN(3BM)

90176-10073-00

$8.49

15

CASE, CHAIN

1A0-22311-00-33

Unavailable

16

DAMPER, CHAIN CASE

278-22332-00-00

Unavailable

17

COLLAR(8R4)

90387-062N2-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-06034-00

Unavailable

19

SCREW PAN HEAD

98580-06020-00

Unavailable

20

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable
