Description

Price

1

BODY ASSY

1A0-84330-60-33

Unavailable

2

COLLAR, BODY FITTING

498-84145-60-00

$6.99

3

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

4

DAMPER, HEAD LAMP B

498-84164-60-00

$6.99

6

. LENS ASSY

1A0-84320-61-00

Unavailable

7

SOCKET

371-84312-60-00

Unavailable

8

. RING, RETAINING

1A0-84395-60-00

Unavailable

9

. RIM, HEADLIGHT

1A0-84315-60-00

Unavailable

10

. SCREW

438-84194-60-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

SCREW 214841316100

90157-04001-00

$8.49

13

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

14

NUT, ADJUST

198-84334-60-00

$7.99

15

SPRING, SET

1UY-84124-00-00

$7.99

16

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

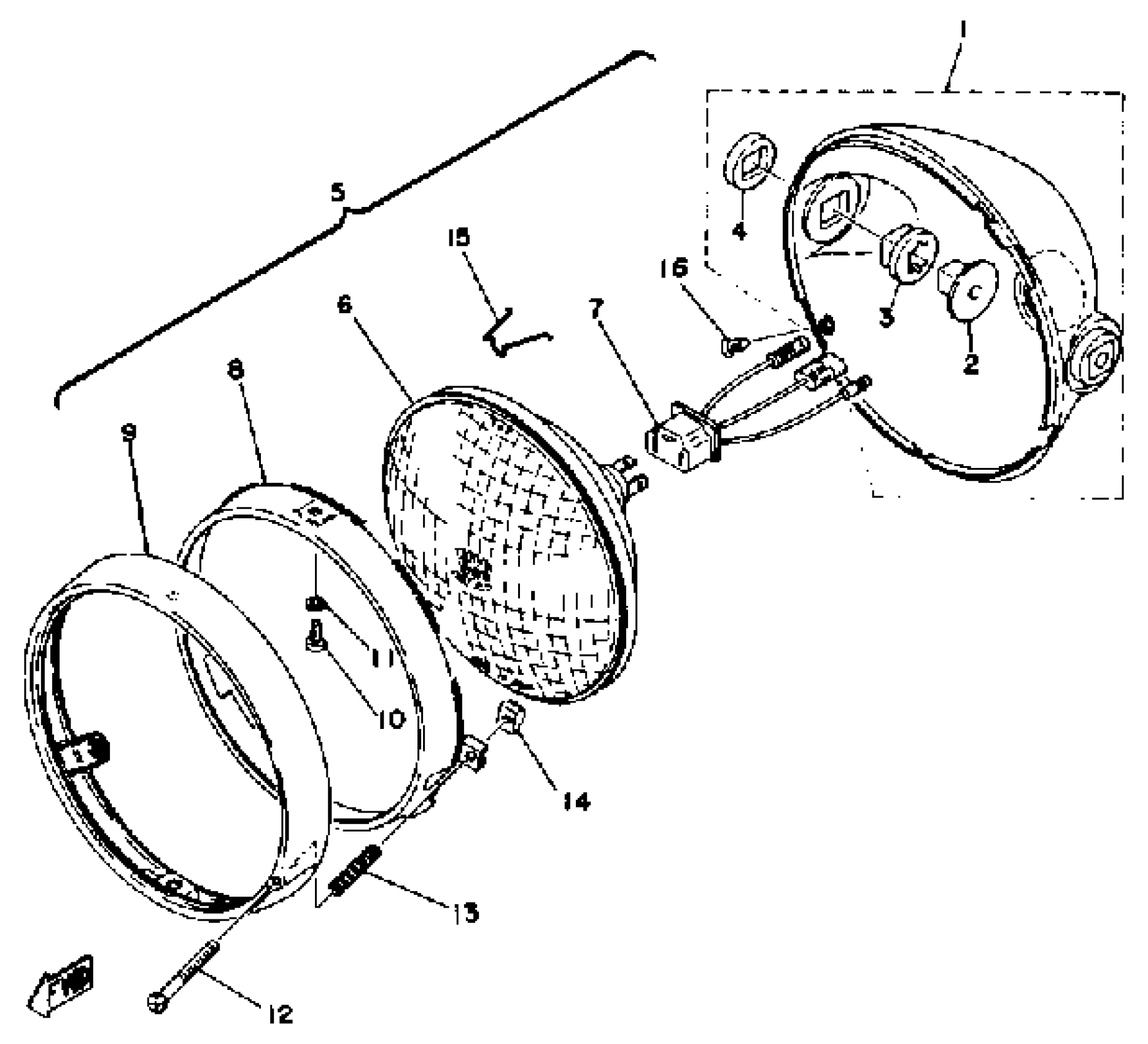

Yamaha RD400C (RD400) 1976 HEAD LAMP Diagram

BODY ASSY

COLLAR, BODY FITTING

DAMPER, HEAD LAMP A

DAMPER, HEAD LAMP B

. LENS ASSY

SOCKET

. RING, RETAINING

. RIM, HEADLIGHT

. SCREW

YBS67-5 WASHER, SPRING

SCREW 214841316100

SPRING, COMPRESSION (ITALY)

NUT, ADJUST

SPRING, SET

SCREW, OVAL HEAD (1A0)
