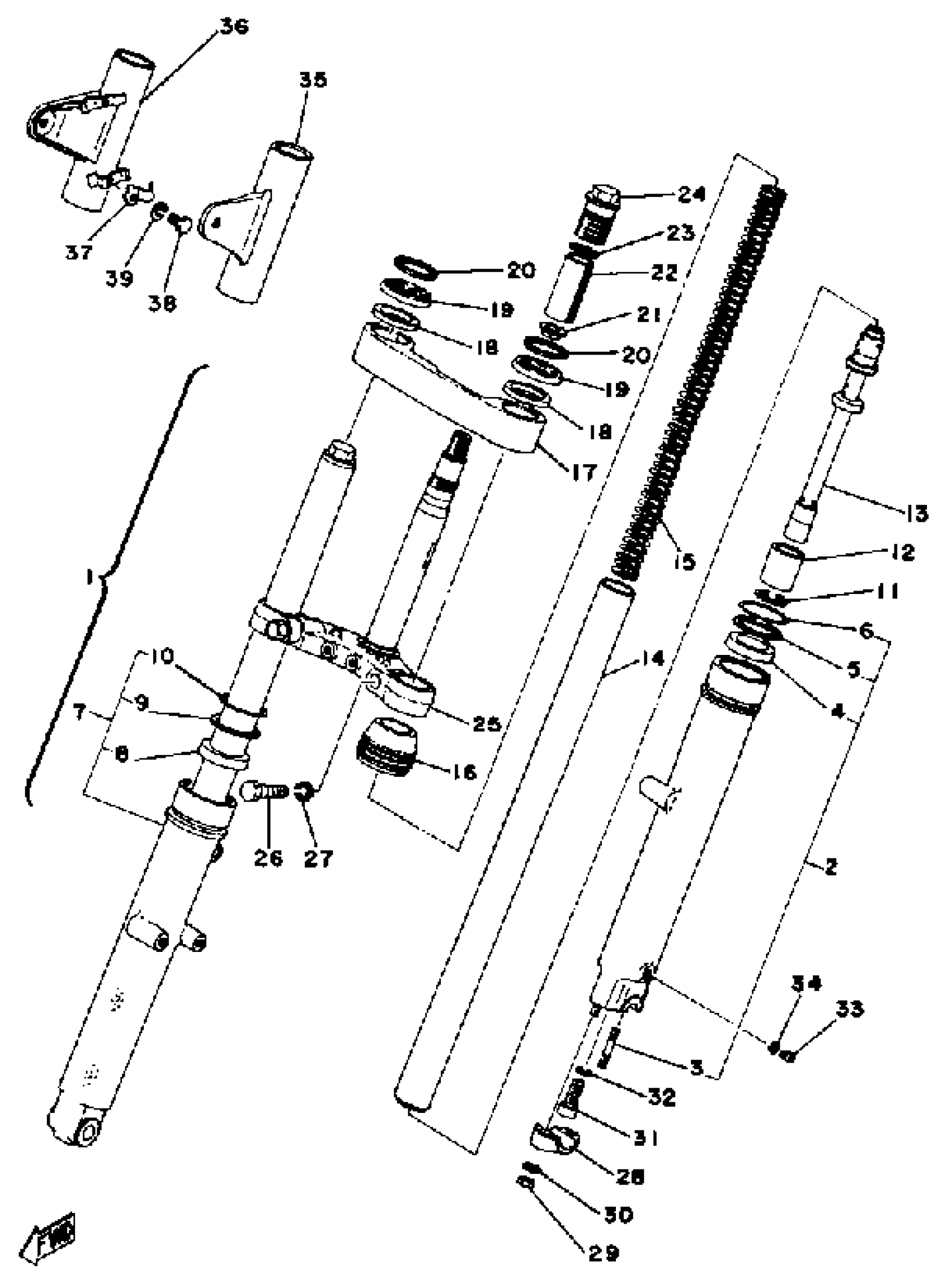

Yamaha RD400C (RD400) 1976 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(1A0-23101-01-00)

Unavailable

2

TUBE, OUTER 1

(1A0-23126-01-00)

Unavailable

3

BOLT, STUD (278)

90116-08261-00

$4.77

4

OIL SEAL

584-23145-50-00

$62.99

5

.. WASHER, OIL SEAL

214-23146-00-00

Unavailable

6

.. CLIP, OIL SEAL

214-23156-00-00

Unavailable

7

TUBE, OUTER 2

(1A0-23136-01-00)

Unavailable

8

OIL SEAL

584-23145-50-00

$62.99

9

.. WASHER, OIL SEAL

214-23146-00-00

Unavailable

10

.. CLIP, OIL SEAL

214-23156-00-00

Unavailable

11

. CIRCLIP, INNER

93450-30033-00

Unavailable

12

PISTON, FRONT FORK

(434-23171-00-00)

Unavailable

13

CYLINDER, FRTFRK

(1A0-23170-01-00)

Unavailable

14

. TUBE, INNER 1

1A0-23124-01-00

Unavailable

15

. SPRING, FRONT FORK (1A0-23141-00)

1A1-23141-00-00

Unavailable

16

SEAL, DUST

584-23144-50-00

Unavailable

17

COVER, OUTER 1

(1A0-23122-00-00)

Unavailable

18

. GASKET (LAMP STAY)

291-23163-61-00

Unavailable

19

. GUIDE, COVER LOWER

2R8-23116-00-00

Unavailable

20

GUIDE, COVER UPPER

(2R8-23115-00-00)

Unavailable

21

. SEAT, SPRING UPPER

256-23142-60-00

Unavailable

22

SPACER

(214-23118-00-00)

Unavailable

23

. GASKET

214-23114-00-00

Unavailable

24

. BOLT, CAP

366-23111-60-00

Unavailable

25

. UNDER BRACKET

1A2-23340-30-33

Unavailable

26

. BOLT 1

306-23346-60-00

Unavailable

27

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

28

HOLDER, AXLE

(306-23167-60-00)

Unavailable

29

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

30

.. WASHER, PLATE

92990-08600-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

32

GASKET

509-23158-L0-00

Unavailable

33

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

34

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

35

COVER, UPPER 1

1A0-23121-01-33

Unavailable

36

COVER, UPPER 2

1A0-23131-01-33

Unavailable

37

STAY, LIGHT GUARD

1A0-23164-00-00

Unavailable

38

BOLT (661)

97013-06012-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable
