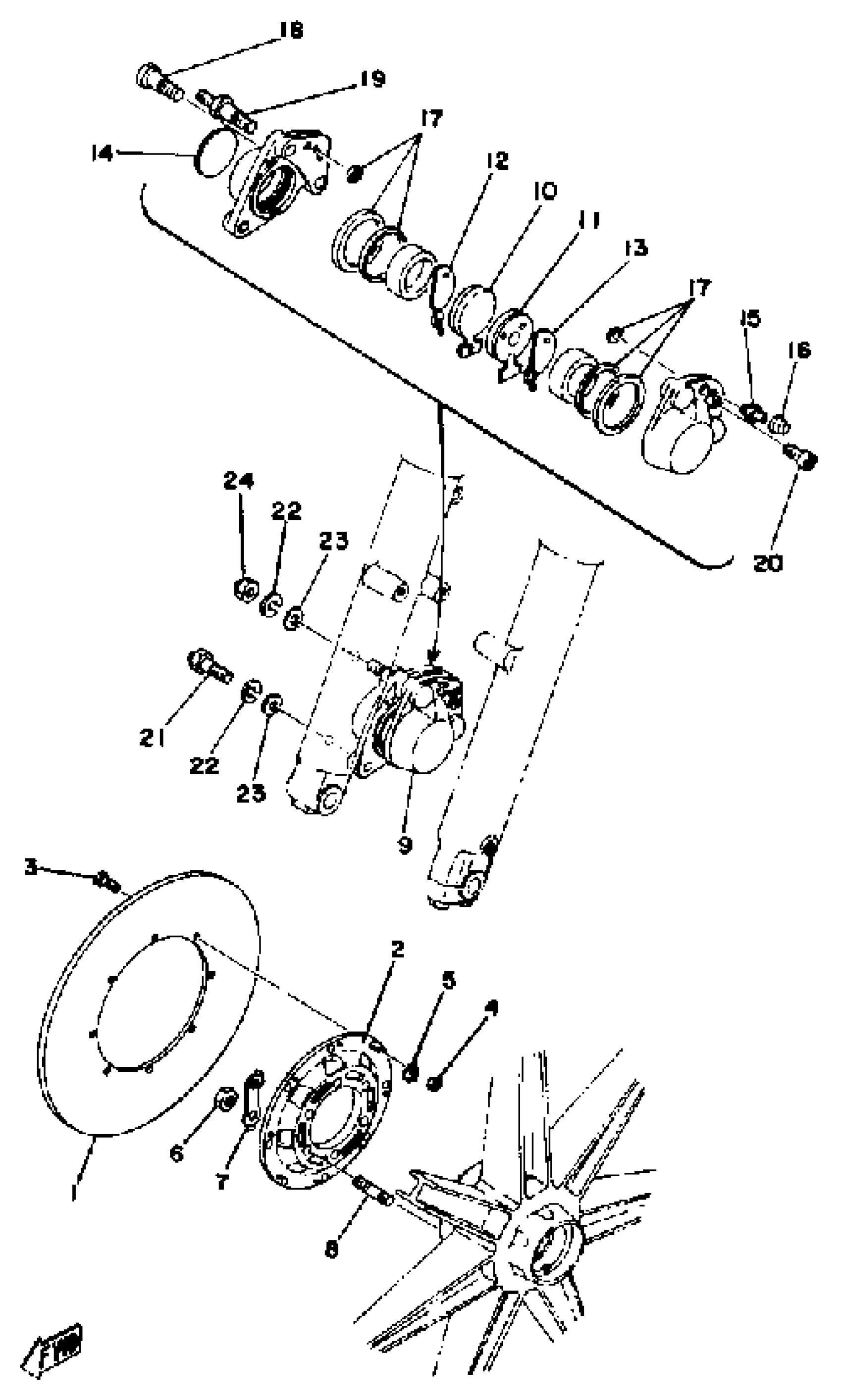

Yamaha RD400C (RD400) 1976 FRONT DISC BRAKE - CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

(351-25831-01-00)

Unavailable

2

BRACKET, DISC

(351-25832-00-00)

Unavailable

3

BOLT 306258330000

90109-06018-00

$10.49

4

NUT, HEXAGON

95380-06600-00

Unavailable

5

WASHER LOCK 306258340000

90215-06106-00

Unavailable

6

NUT, HEXAGON (509)

90170-08158-00

$2.34

7

WASHER, LOCK (447)

341-25412-00-00

$12.99

8

BOLT, STUD (483)

90116-08218-00

$8.49

8

BOLT, STUD

(90116-08242-00)

Unavailable

9

CALIPER ASSEMBLY (C)

533-25810-12-00

Unavailable

10

. BRAKE PAD KIT, FRNT

1A1-W0045-00-00

Unavailable

12

. SHIM, CALIPER

409-25827-50-00

Unavailable

13

. SHIM, CALIPER (306-25828-02)

409-25828-50-00

Unavailable

14

. EMBLEM, CALIPER

306-25829-00-00

Unavailable

15

. SCREW, BLEED

306-25824-00-00

Unavailable

16

CAP

306-25825-01-00

Unavailable

17

CALIPER SEAL KIT

856-W0047-00-00

Unavailable

18

. BOLT 1

306-25821-01-00

Unavailable

19

. BOLT 2

306-25822-01-00

Unavailable

20

. BOLT 3

306-25826-01-00

Unavailable

21

BOLT

(90109-10041-00)

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

23

WASHER, PLATE

92990-10600-00

Unavailable

24

NUT, CROWN(3BM)

90176-10073-00

Unavailable
