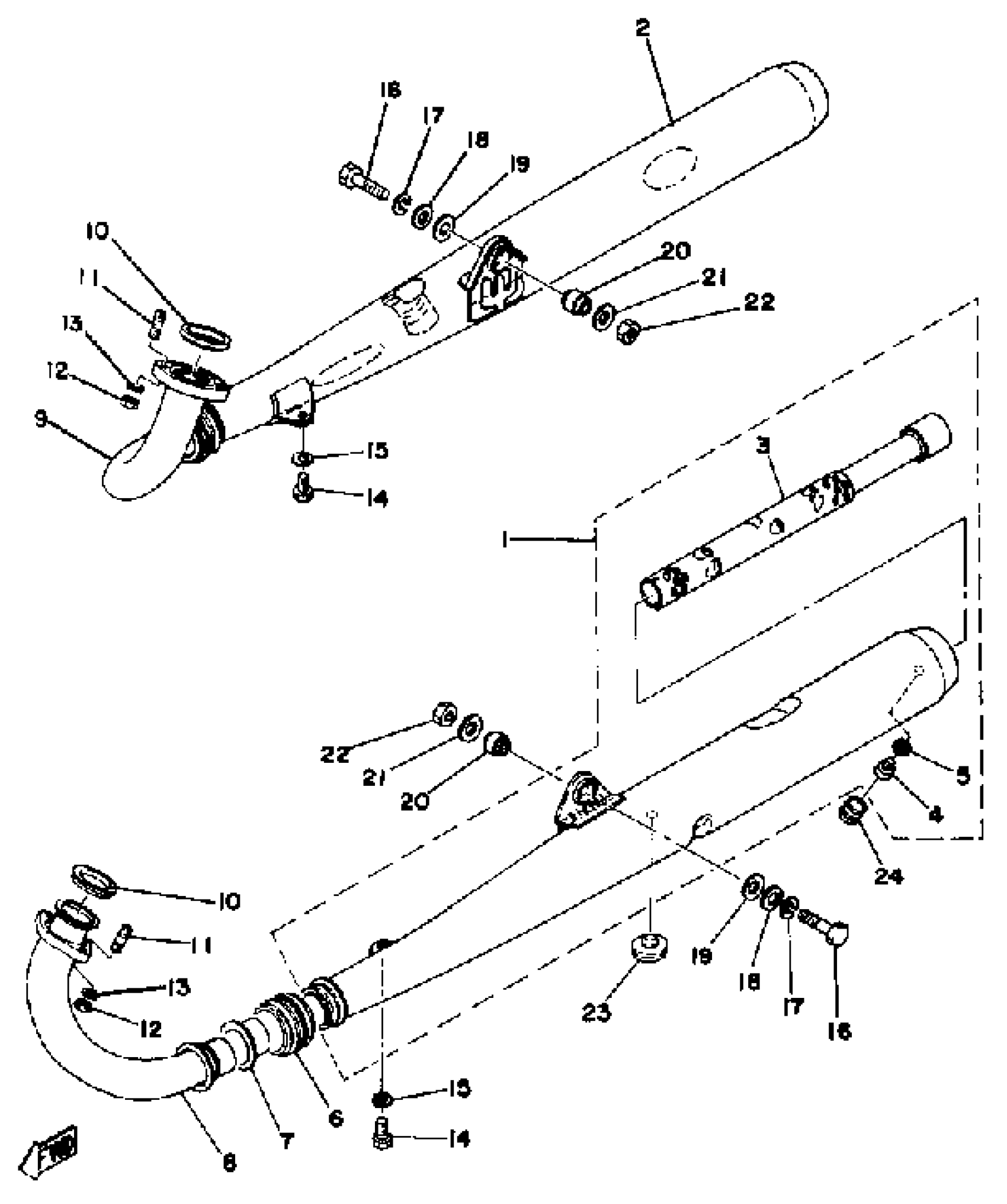

Yamaha RD400C (RD400) 1976 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSEMBLY L

(1A1-14710-00-00)

Unavailable

2

MUFFLER ASSEMBLY R

(1A1-14720-00-00)

Unavailable

3

SILENCER

521-14753-00-00

Unavailable

4

SCREW PAN HEAD

98580-06010-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

JOINT, EXHAUST L

1A1-14615-02-00

Unavailable

7

GASKET, MUFFLER

1A1-14714-02-00

Unavailable

8

PIPE, EXHAUST L

(1A1-14611-00-00)

Unavailable

9

PIPE, EXHAUST R

(1A1-14621-00-00)

Unavailable

10

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

11

BOLT, STUD (17W)

90116-08408-00

Unavailable

12

NUT(6L2)

95333-08600-00

$2.49

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

BOLT(JA9)

90101-08691-00

$4.29

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

BOLT,FLANGE

95023-10035-00

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

18

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

19

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

20

DAMPER, REAR

168-21639-00-00

Unavailable

21

WASHER, PLATE

90201-15239-00

Unavailable

22

NUT, SPEC''L SHAPE

90179-10123-00

Unavailable

23

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

23

STOPPER MAIN STAND

278-27114-00-00

Unavailable

24

GROMMET (420)

90480-14153-00

Unavailable
