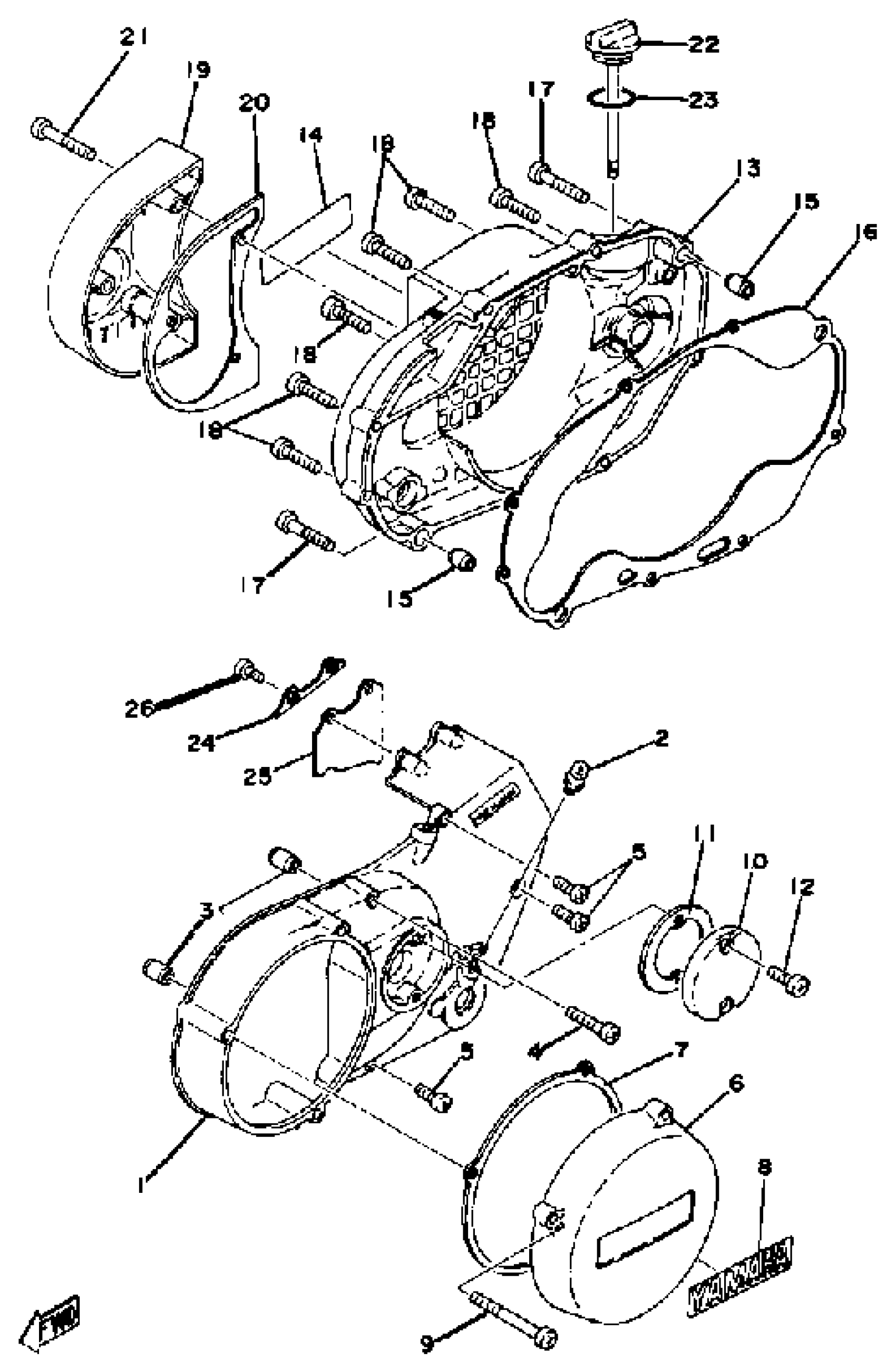

Yamaha RD400C (RD400) 1976 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L (1A1-15411-00)

1A1-15411-01-00

Unavailable

2

NIPPLE, GREASE

93700-06M03-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, PAN

98507-06035-00

$8.49

5

UNAVAILABLE IN PRICE BOOK

92406-06020-00

Unavailable

6

COVER, GENERATOR

1A0-15415-00-00

Unavailable

7

GASKET 1

1A0-15455-10-00

Unavailable

7

GSKT KIT RD400C/D

(1A1-00000-20-00)

Unavailable

8

EMBLEM

1A0-15435-00-00

Unavailable

9

SCREW, PAN HEAD

98507-06070-00

$9.99

10

COVER, CAP

1A0-15417-00-00

Unavailable

11

GASKET, CAP COVER

1A0-15457-10-00

Unavailable

12

SCREW, PAN

98517-06020-00

$8.49

13

COVER, CRANKCASE R

1A0-15421-00-00

Unavailable

14

EMBLEM

1A0-15435-00-00

Unavailable

15

PIN, DOWEL

99530-12016-00

$4.89

16

GASKET, CRANK CASE COVER (L.H)

1A0-15461-10-00

Unavailable

17

SCREW, PAN

98507-06040-00

Unavailable

18

SCREW, PAN

98517-06030-00

Unavailable

19

COVER, OIL PUMP

1A0-15416-00-00

Unavailable

20

GASKET

1A0-15456-10-00

Unavailable

20

GSKT KIT RD400C/D

(1A1-00000-20-00)

Unavailable

21

SCREW, PAN

98507-06045-00

Unavailable

22

PLUG, OIL

360-15363-01-00

Unavailable

23

O-RING(1KT)

93210-27778-00

Unavailable

24

PROTECTOR

1A0-15491-00-00

Unavailable

25

PLATE, DUST SEAL

1A0-15497-00-00

Unavailable

26

SCREW, PAN

98517-05012-00

Unavailable
