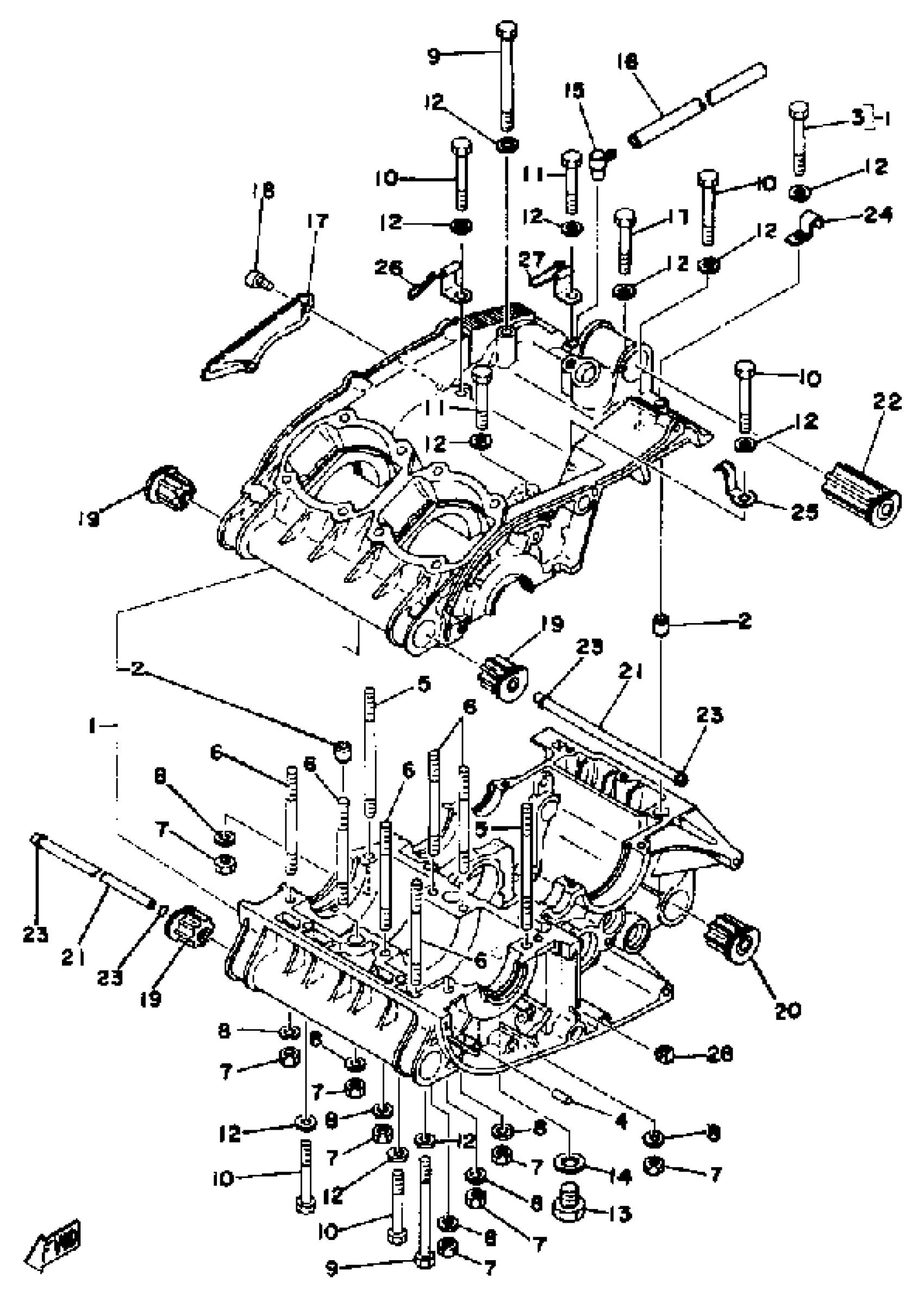

Yamaha RD400C (RD400) 1976 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(1A1-15100-01-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

4

PIN, DOWEL

93603-14026-00

$8.49

5

BOLT, STUD (1A1)

90116-08232-00

$12.49

6

BOLT (248-11361-00)

90116-08064-00

$7.49

7

NUT(6L2)

95333-08600-00

$2.49

8

WASHER, PLAIN

92990-08200-00

Unavailable

9

BOLT(3GG)

97017-06090-00

$2.82

10

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

11

BOLT, HEXAGON

97013-06045-00

$1.11

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

BOLT

90109-14385-00

$16.99

14

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

15

BREATHER

583-15371-00-00

$6.99

16

HOSE(7EG)

90446-07241-00

Unavailable

17

COVER

278-15492-01-00

Unavailable

18

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

19

DAMPER, ENG MOUNT 1

1A1-15316-00-00

Unavailable

20

DAMPER, ENG MOUNT 2

1A1-15326-00-00

Unavailable

21

SPACER, ENG MOUNT

1A1-15317-00-00

Unavailable

22

DAMPER, ENG MOUNT 3

1A1-15336-00-00

Unavailable

23

O-RING (P95)

93210-11073-00

Unavailable

24

CLAMP 363154850100

90462-05005-00

Unavailable

25

CLAMP

(90462-06025-00)

Unavailable

26

CLAMP

(90465-06093-00)

Unavailable

27

CLAMP (1A0)

90465-06094-00

Unavailable

28

GROMMET

90480-01148-00

Unavailable
