- RD400C (RD400) 1976
BRAKE PEDAL - MASTER CYLINDER

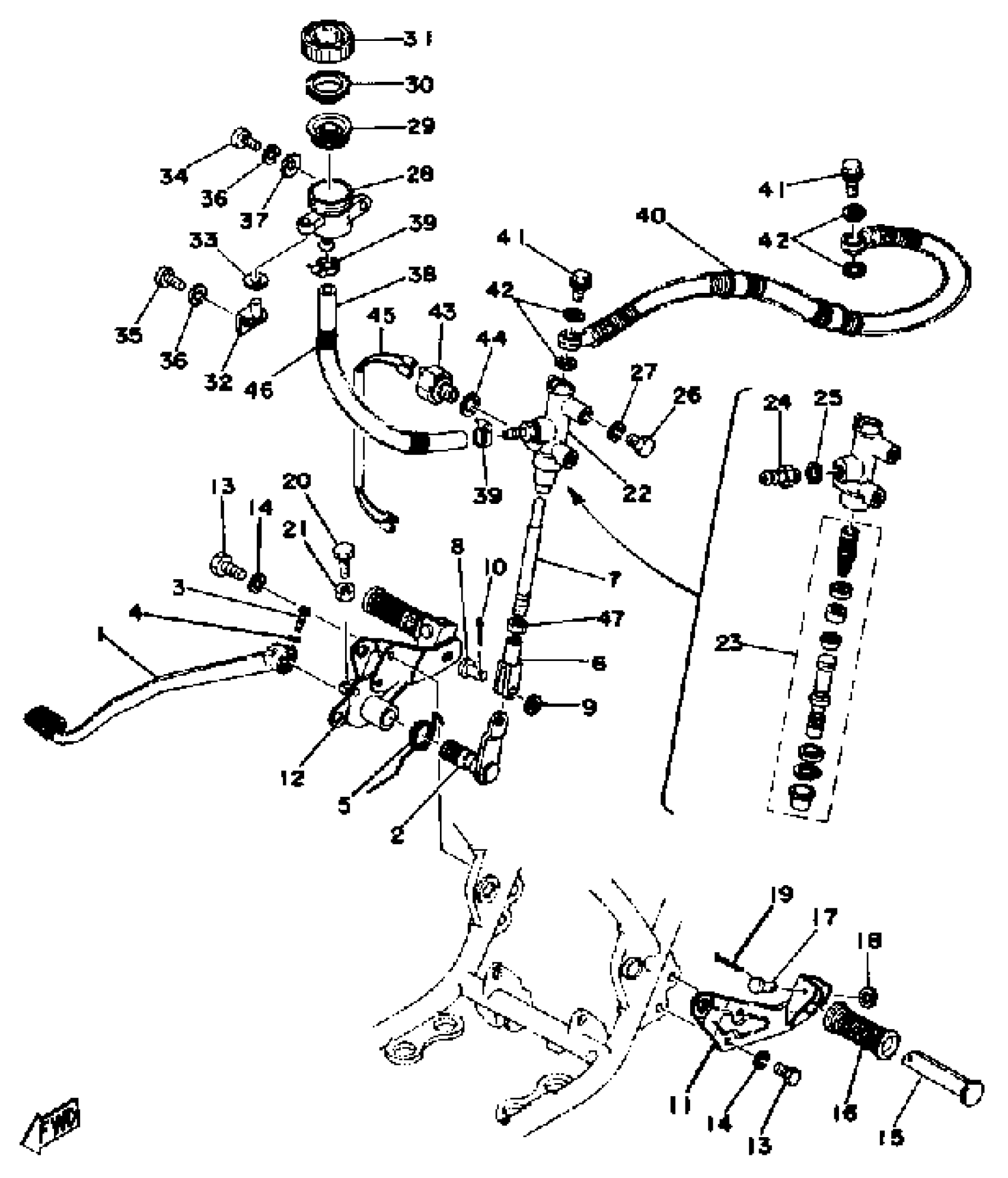

Yamaha RD400C (RD400) 1976 BRAKE PEDAL - MASTER CYLINDER Diagram
#
1
PEDAL, BRAKE
1A0-27211-00-33
Unavailable
2
SHAFT, BRAKE PEDAL
(1A1-27212-00-00)
Unavailable
4
WASHER, SPRING
92995-06100-00
Unavailable
5
SPRING, TORSION (90508-35302)
90508-40348-00
Unavailable
6
JOINT
1A1-27222-01-00
Unavailable
7
ROD, BRAKE
1A1-27231-01-00
Unavailable
10
PIN, COTTER
91490-16020-00
Unavailable
11
STAY, MUFFLER 1
(1A0-21445-01-33)
Unavailable
12
STAY, MUFFLER 2
(1A0-21446-01-33)
Unavailable
15
FOOTREST, REAR 1
2GV-27431-00-00
Unavailable
16
COVER, REAR FOOTREST
120-27433-00-00
Unavailable
17
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
18
WASHER, PLATE (888)
90201-20279-00
Unavailable
19
PIN, COTTER
91490-16020-00
Unavailable
21
NUT(650)
95380-06700-00
Unavailable
22
MSTR CYLINDER ASSEMBLY
1A1-25850-50-00
Unavailable
23
. CYLINDER KIT
1A1-20000-50-00
Unavailable
24
BOLT, UNION
(1A1-25899-50-00)
Unavailable
25
GASKET
(1A1-25898-50-00)
Unavailable
26
BOLT(JA9)
90101-08691-00
Unavailable
28
TANK, RESERVOIR
1A1-25894-01-00
Unavailable
29
DIAPHRAGM, RESERVER
360-25854-01-00
Unavailable
30
BUSH,DIAPHRAGM
2GU-25855-00-00
Unavailable
31
CAP, RESERVOIR
2KF-25852-50-00
Unavailable
32
BRACKET, DAMPER
(1A1-21798-00-00)
Unavailable
33
. WASHER, PLATE
90201-06050-00
Unavailable
34
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
35
SCREW, PAN
98507-06014-00
Unavailable
36
WASHER, SPRING
92995-06100-00
Unavailable
37
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
38
HOSE, RESERVOIR
1A1-25895-00-00
Unavailable
39
BAND, HOSE 15
90601-11525-00
Unavailable
40
HOSE, BRAKE 1
(1A1-25872-52-00)
Unavailable
41
BOLT, UNION(3GM)
90401-10159-00
Unavailable
42
WASHER, PLATE(481)
90201-10118-00
Unavailable
43
STOP SWITCH ASSEMBLY
341-83980-30-00
Unavailable
44
WASHER PLATE 341839090000
90201-10128-00
Unavailable
45
WIRE, LEAD
(1A1-82531-00-00)
Unavailable
46
SPRING, COMPRESSION
(90501-10406-00)
Unavailable
47
. NUT
95380-08700-00
Unavailable
