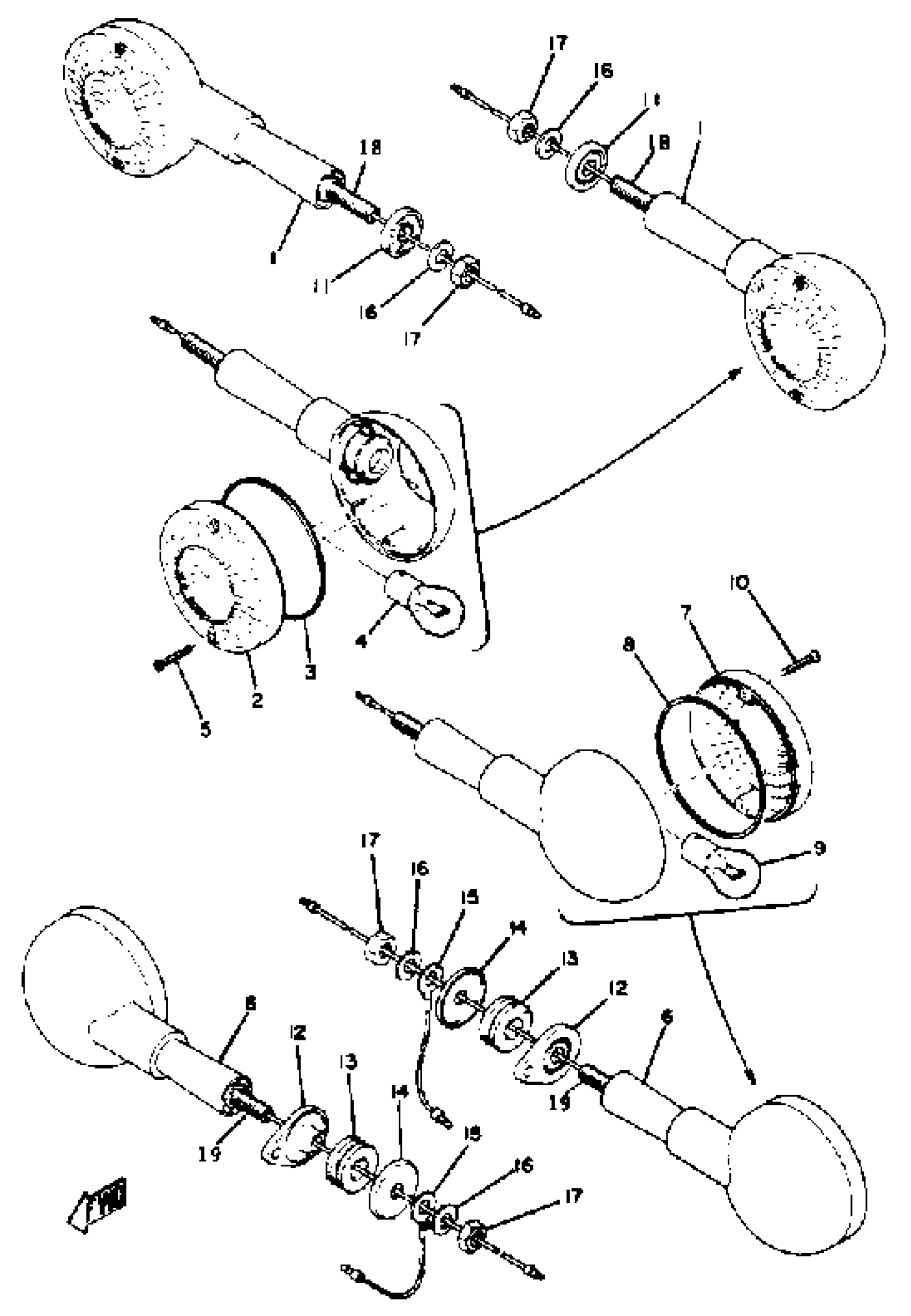

Yamaha RD350 (RD350) 1973 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER ASSEMBLY

4G5-83310-90-00

Unavailable

2

LENS, FLASHER

341-83312-70-00

Unavailable

3

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

6

R FLSHR LITE ASSEMBLY

360-83330-71-93

Unavailable

7

. LENS, FLASHER

341-83332-70-00

Unavailable

8

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

9

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

10

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

11

COLLAR, FLASHER 1

360-83316-00-00

Unavailable

12

COLLAR, FLASHER 2

360-83326-00-00

Unavailable

13

GROMMET(3BC)

90480-18488-00

Unavailable

14

WASHER

90209-08008-00

$7.49

15

CORD

256-83336-01-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

NUT(6L2)

95333-08600-00

Unavailable

18

. BOLT, STUD

341-83367-09-00

Unavailable

19

. BOLT, STUD

360-83367-09-00

Unavailable
