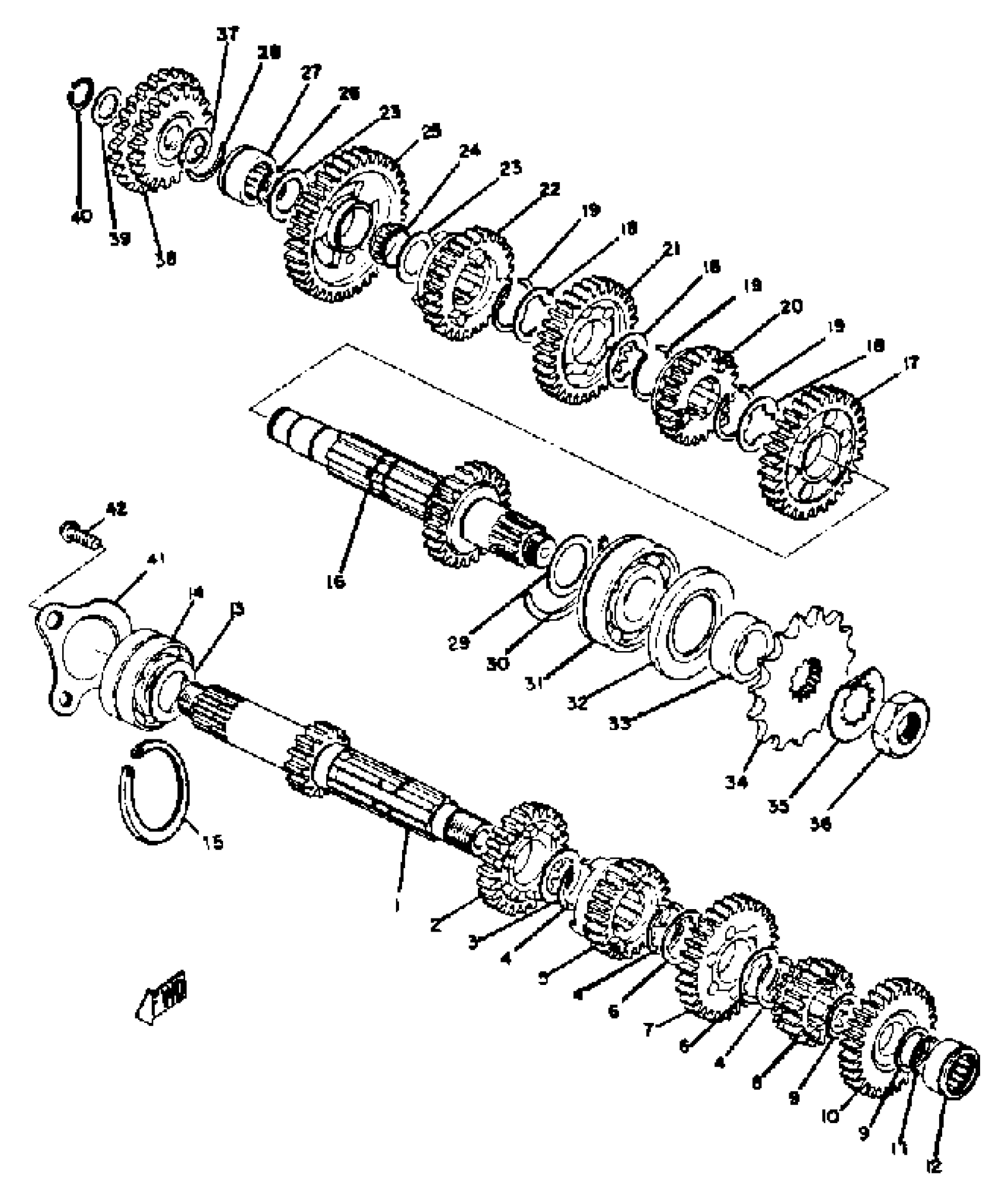

Yamaha RD350 (RD350) 1973 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(360-17411-00-00)

Unavailable

2

GEAR, 4TH PINION

(360-17141-00-00)

Unavailable

3

WASHER PLATE 152172260000

90201-25490-00

$10.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

(360-17131-00-00)

Unavailable

6

WASHER 328172160000

90209-21105-00

$8.49

7

UNAVAILABLE IN PRICE BOOK

[36-01716-10-00

Unavailable

8

GEAR, 2ND PINION

1A1-17121-00-00

Unavailable

9

WASHER PLATE 132172160000

90201-20266-00

$9.49

10

GEAR, 5TH PINION

(360-17151-00-00)

Unavailable

11

CIRCLIP(1AR)

99009-20400-00

$8.49

12

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

$52.99

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

14

BRG,R-B 5205 52MM 190G KY

93305-20502-00

Unavailable

15

CIRCLIP (168)

93440-52009-00

Unavailable

16

DRIVE AXLE ASSEMBLY

360-17420-00-00

Unavailable

17

GEAR, 2ND WHEEL

360-17221-00-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-21106-00

Unavailable

19

CIRCLIP (4L0)

93440-25084-00

$5.60

20

GEAR, 6TH WHEEL

(360-17261-00-00)

Unavailable

21

GEAR, 3RD WHEEL

360-17231-00-00

Unavailable

22

GEAR, 4TH WHEEL

(360-17241-00-00)

Unavailable

23

WASHER PLATE 328171160000

90201-20276-00

Unavailable

24

BRG,CYL-CAL ROLLER 7G NT

93310-22057-00

Unavailable

25

GEAR, 1ST WHEEL

360-17211-00-00

Unavailable

26

CIRCLIP(1AR)

99009-20400-00

$8.49

27

BEARING, CYL.#11

93311-42045-00

Unavailable

28

CIR CLIP

278-17425-00-00

Unavailable

29

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

29

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

30

CIRCLIP

278-17424-01-00

Unavailable

31

BRG,R-B 6305 62MM 225G NK

93306-30504-00

Unavailable

32

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

33

COLLAR(1AE)

90387-253M9-00

Unavailable

34

SPROCKET, DRIVE

9385E-14160-00

Unavailable

34

SPROCKET, DRIVE

3HE-17460-00-00

Unavailable

34

SPROCKET, DRIVE 16T

9385E-16114-00

Unavailable

35

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

36

NUT 152174630000

90179-18020-00

Unavailable

37

WASHER WAVE 137156430000

90206-15021-00

Unavailable

38

IDLE GEAR ASSEMBLY

(278-15650-00-00)

Unavailable

39

SHIM, MAIN AXLE (1.0)

164-17417-00-10

Unavailable

40

CIRCLIP(1AR)

99009-15400-00

Unavailable

41

PLATE, COVER

360-17471-00-00

Unavailable

42

SCREW, FLAT

98707-06014-00

Unavailable
