1973 Yamaha RD350 (RD350) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1973 Yamaha RD350 (RD350), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

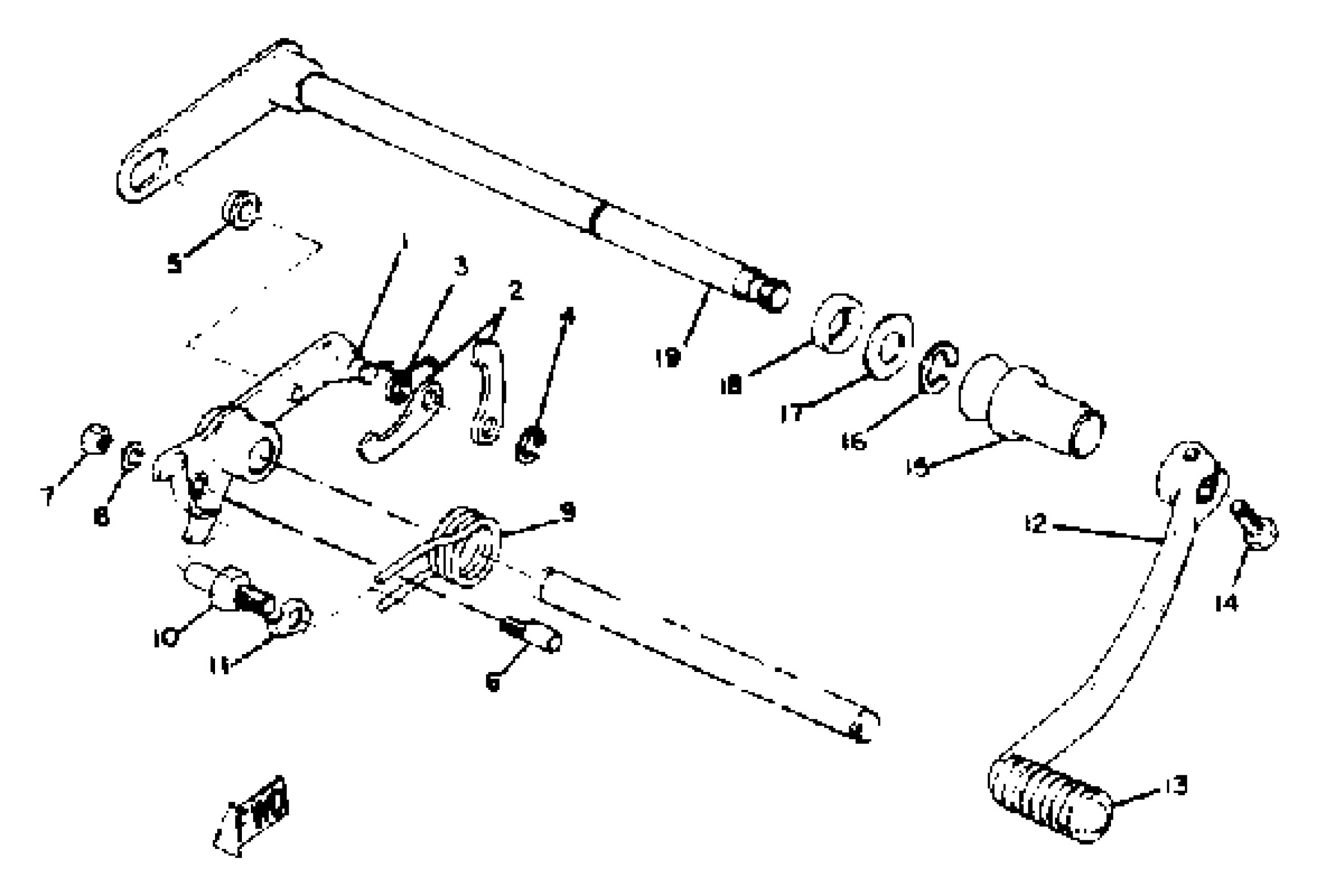

1973 Yamaha RD350 (RD350) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET

328-18128-00-00

1
Out of stock

2

LEVER, SHIFT 3

(328-18151-00-00)

1
Out of stock

3

SPRING, TORSION

90508-08007-00

1
Out of stock

4

CIRCLIP

99080-07600-00

1

$2.89

In stock

5

ROLLER, SHIFT LEVER

214-18178-00-00

1
Out of stock

6

SCREW 214181860000

90149-06017-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

SPRING, TORSION

90508-32055-00

1
Out of stock

10

STOPPER, SCREW

278-18127-01-00

1
Out of stock

11

WASHER

90215-08015-00

1
Out of stock

12

PEDAL, SHIFT

278-18111-00-93

1
Out of stock

13

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

15

BOOT, SEALING

278-18131-00-00

1
Out of stock

16

CIRCLIP

99006-10600-00

—

$6.91

In stock

17

WASHER, PLATE (353)

90201-12575-00

—
Out of stock

18

SEAL, OIL (30X)

93102-12321-00

—

$10.14

In stock

19

SHIFT SHAFT ASY.1

278-18101-01-00

1
Out of stock
