1973 Yamaha RD350 (RD350) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1973 Yamaha RD350 (RD350), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

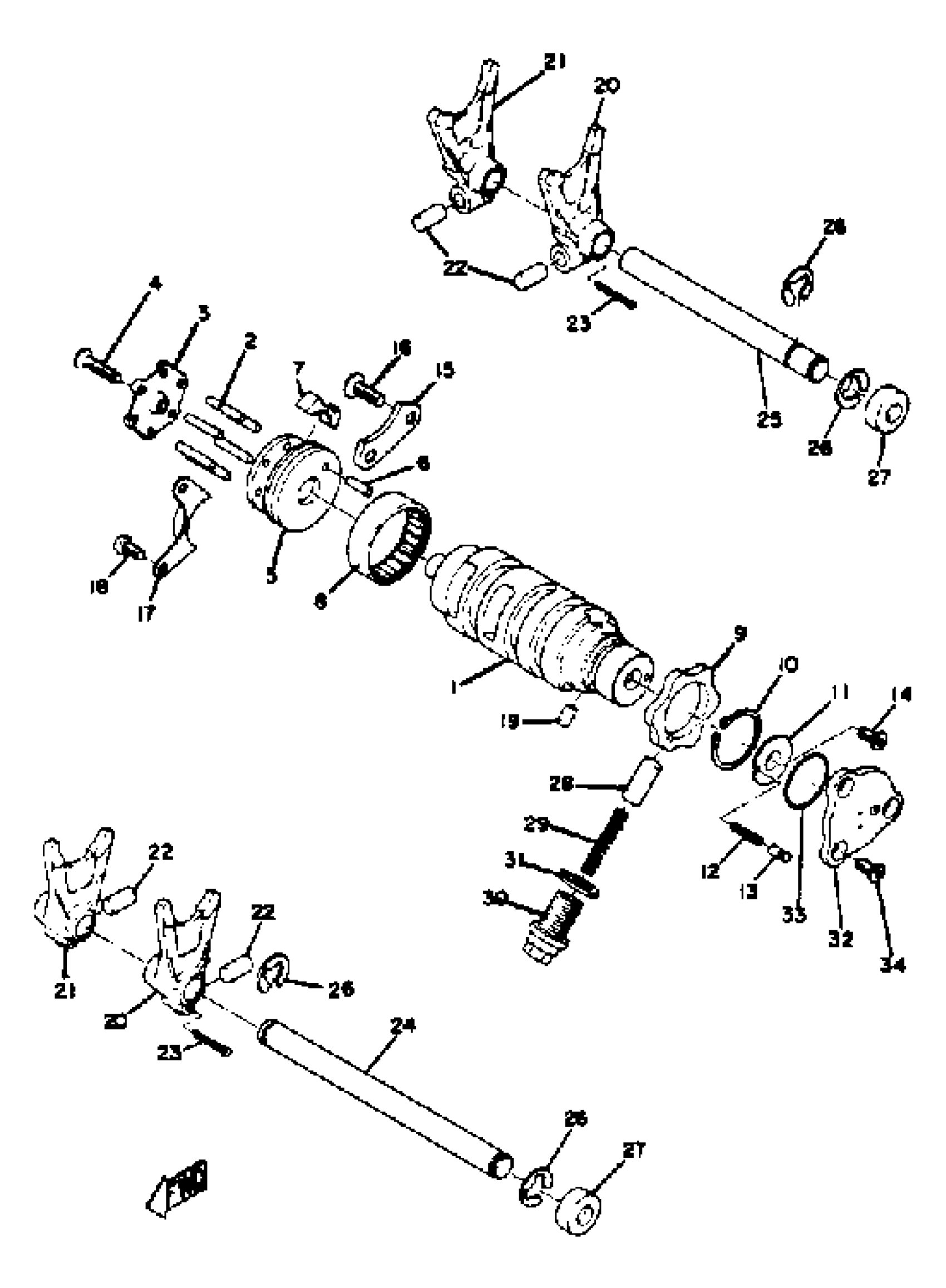

1973 Yamaha RD350 (RD350) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

(360-18541-00-00)

1
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

. PLATE, SIDE 1

328-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05020-00

1
Out of stock

5

SEGMENT

(328-18185-00-00)

1
Out of stock

6

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

7

PLATE, PAWL

(328-18352-10-00)

1
Out of stock

8

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

9

PLATE, STOPPER

360-18141-01-00

1
Out of stock

10

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

11

PLATE, SIDE 2

278-18566-00-00

1
Out of stock

12

1

$6.17

In stock

13

POINT, NEUTRAL

4UN-18542-00-00

1

$8.44

In stock

14

SCREW, FLAT

98707-05012-00

1
Out of stock

15

PLATE, STOPPER 2

(328-18562-00-00)

1
Out of stock

16

SCREW, FLAT

98707-06014-00

—
Out of stock

17

GUIDE

328-18179-00-00

1
Out of stock

18

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

19

PIN, DOWEL (278)

93604-08071-00

—

$6.17

In stock

20

FORK, SHIFT 1

328-18511-01-00

1
Out of stock

21

FORK, SHIFT 2

328-18512-01-00

1
Out of stock

22

PIN, STRAIGHT

90250-08017-00

1
Out of stock

23

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

24

BAR, SHIFT FORK GUIDE 1

278-18531-00-00

1
Out of stock

25

BAR, SHIF FRK GDE 2

(278-18535-00-00)

1
Out of stock

26

CIRCLIP

99006-10600-00

—

$6.91

In stock

27

PLUG(3AJ)

90338-22207-00

—

$3.92

In stock

28

STOPPER, CAM

278-18547-02-00

1
Out of stock

29

SPRING COMPRESSION278185570000

90501-10062-00

—
Out of stock

30

BOLT

90109-14002-00

—

$10.29

In stock

31

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

32

NEUTRAL SWITCH ASSY

1L9-82540-00-00

—
Out of stock

33

O-RING (371)

93210-29196-00

—

$6.45

In stock

34

SCREW, FLAT

98707-05020-00

1
Out of stock
