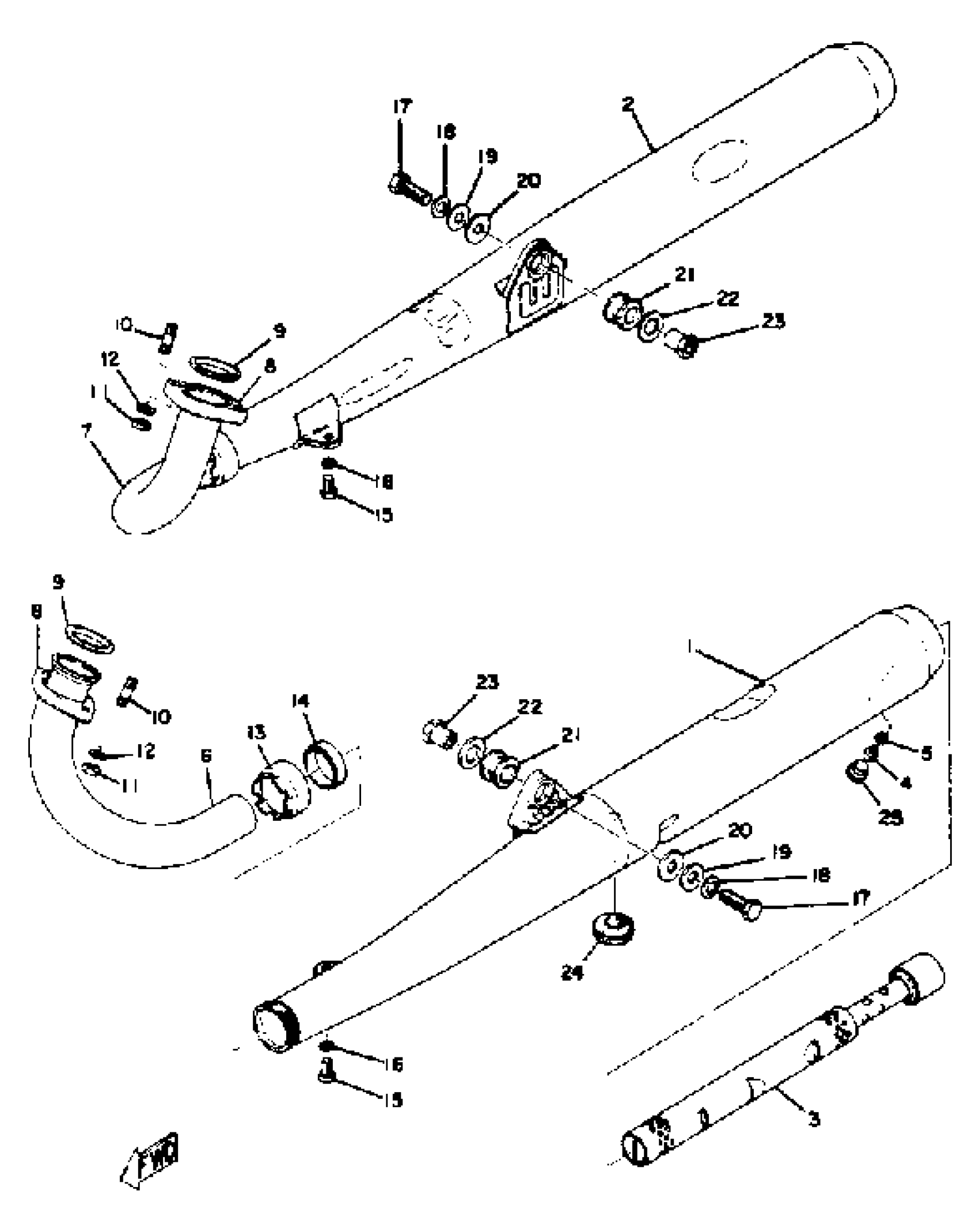

Yamaha RD350 (RD350) 1973 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSEMBLY L

(360-14710-03-00)

Unavailable

2

MUFFLER ASSEMBLY R

360-14720-03-00

Unavailable

3

. SILENCER, EXHAUST

360-14753-01-00

Unavailable

4

SCREW PAN HEAD

98580-06010-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

PIPE, EXHAUST L

278-14611-00-00

Unavailable

7

PIPE, EXHAUST R

278-14621-00-00

Unavailable

8

NUT, RING

(246-14612-00-00)

Unavailable

9

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

10

BOLT, STUD (17W)

90116-08408-00

Unavailable

11

NUT(6L2)

95333-08600-00

$2.49

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

NUT, MUFFLER JOINT

360-14713-00-00

Unavailable

14

GASKET, MUFFLER

360-14714-00-00

Unavailable

15

BOLT(JA9)

90101-08691-00

$4.29

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

BOLT,FLANGE

95023-10035-00

Unavailable

18

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

19

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

20

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

21

DAMPER, REAR

168-21639-00-00

Unavailable

22

WASHER, PLATE

90201-15239-00

Unavailable

23

NUT, SPEC''L SHAPE

90179-10123-00

Unavailable

24

STOPPER MAIN STAND

278-27114-00-00

Unavailable

25

GROMMET (420)

90480-14153-00

Unavailable
