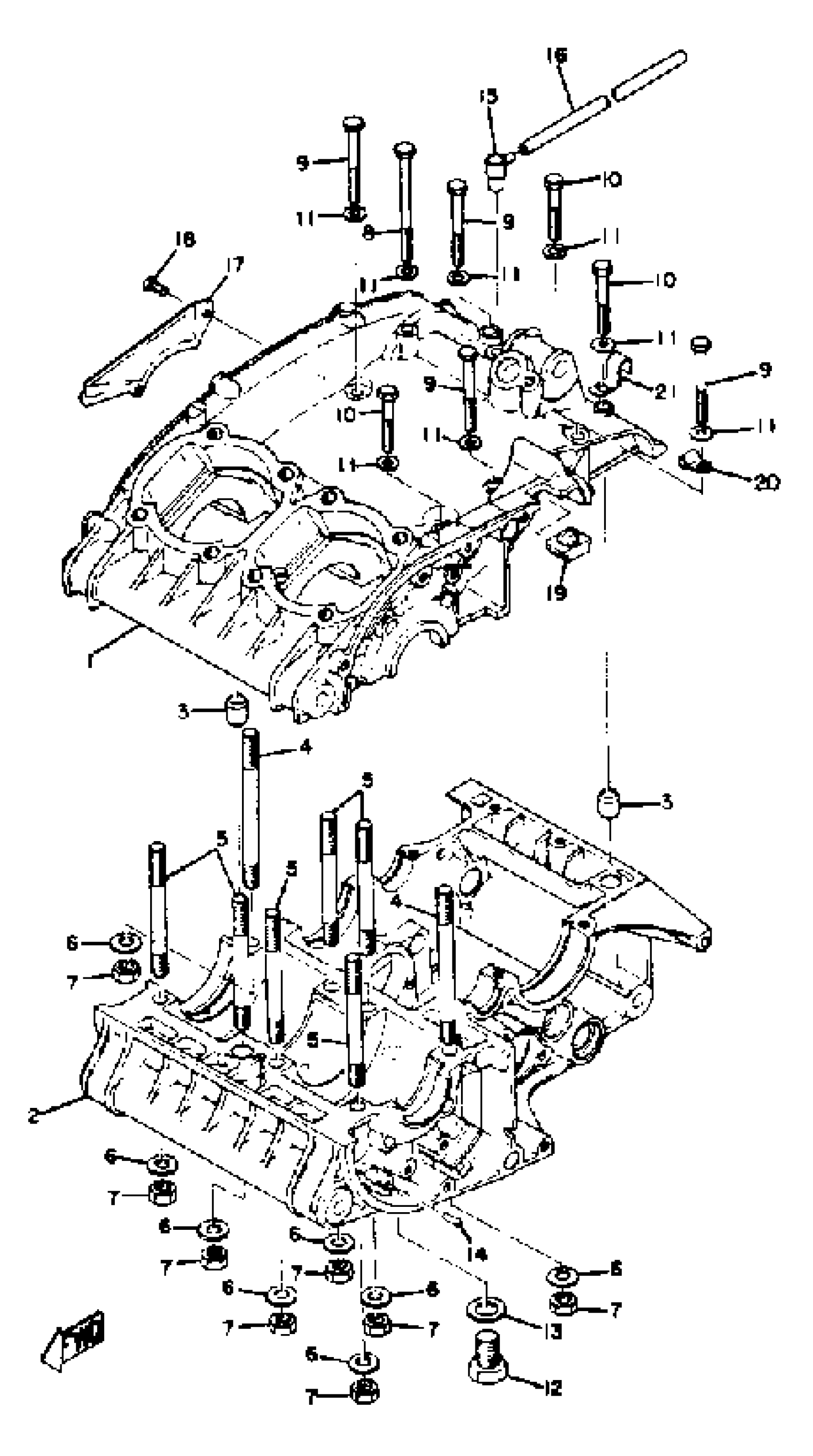

Yamaha RD350 (RD350) 1973 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(278-15100-02-00)

Unavailable

1

TOOL

UNA-VAILA-BL-EI

Unavailable

2

TOOL

UNA-VAILA-BL-EI

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, STUD (1A1)

90116-08232-00

$12.49

5

BOLT (248-11361-00)

90116-08064-00

$7.49

6

WASHER, PLAIN

92990-08200-00

Unavailable

7

NUT(6L2)

95333-08600-00

$2.49

8

BOLT(3GG)

97017-06090-00

$2.82

9

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

10

BOLT, HEXAGON

97013-06045-00

$1.11

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

BOLT

90109-14385-00

$16.99

13

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

14

PIN, DOWEL

93603-14026-00

$8.49

15

BREATHER

583-15371-00-00

Unavailable

16

HOSE(7EG)

90446-07241-00

Unavailable

17

COVER

278-15492-01-00

Unavailable

18

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

19

HOLDER, CLCH CABLE

278-15441-00-00

Unavailable

20

CLAMP

(90462-05012-00)

Unavailable

21

CLAMP 363154850100

90462-05005-00

Unavailable
