1973 Yamaha RD250 (RD250) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

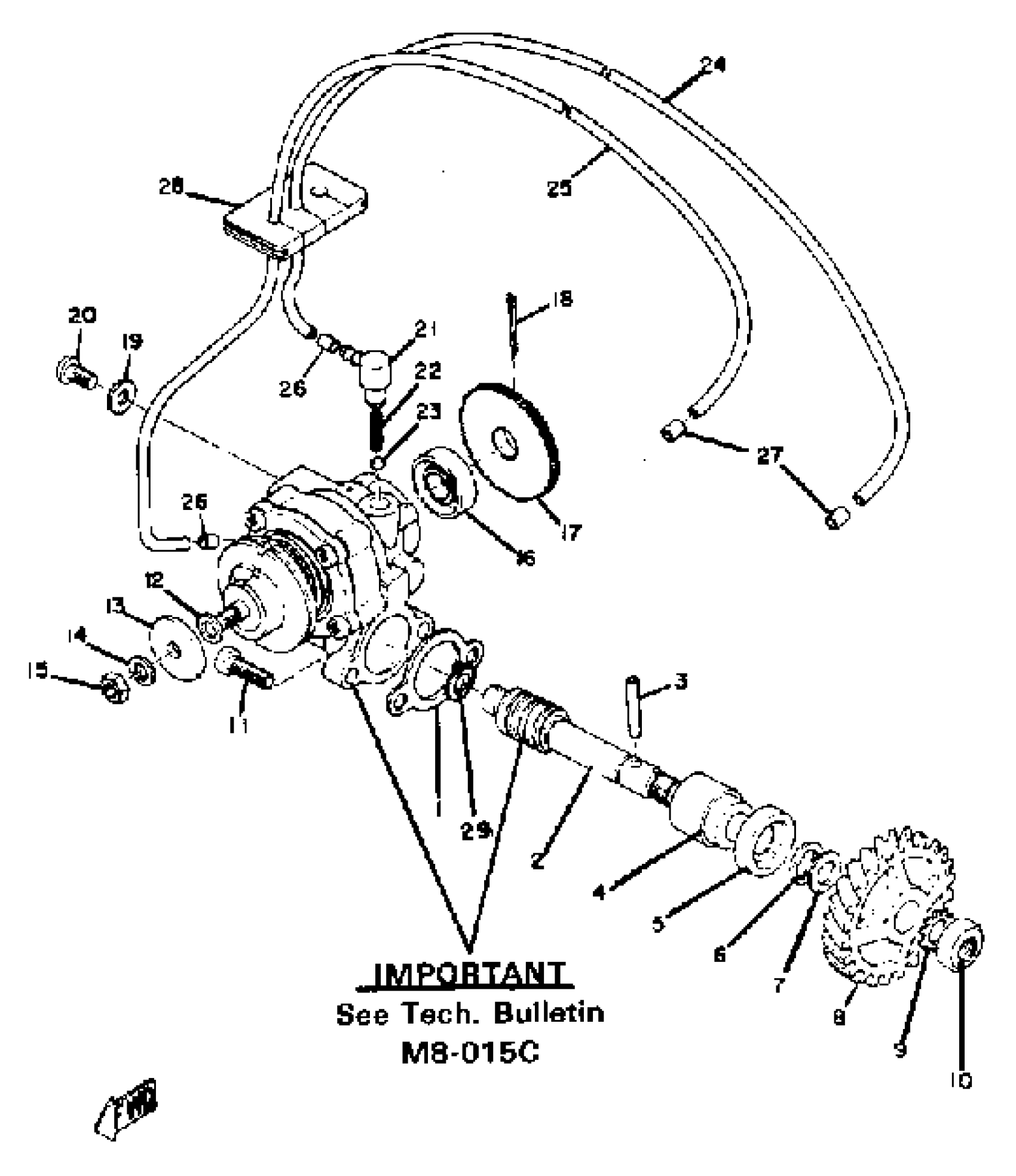

1973 Yamaha RD250 (RD250) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

TOOL

UNA-VAILA-BL-EI

1
Out of stock

3

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

7

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

8

GEAR, PUMP DRIVE

(280-13178-00-00)

1
Out of stock

9

WASHER (688)

92990-08400-00

1

$3.46

In stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

12

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

12

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

13

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

16

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

17

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

18

. PIN, COTTER

91401-12018-00

1
Out of stock

19

GASKET 137131870000

90430-04004-00

—
Out of stock

20

SCREW, BIND

98980-04008-00

1

$3.26

In stock

21

NOZZLE

353-13552-01-00

—
Out of stock

22

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

23

BALL

93505-32002-00

—

$2.22

In stock

24

HOSE (L700)

90445-05M07-00

1
Out of stock

25

HOSE (L700)

90445-05M07-00

1
Out of stock

26

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

27

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

28

HOLDER, OIL PIPE

278-13174-00-00

1
Out of stock

29

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
