1973 Yamaha RD250 (RD250) Crank Piston Diagram

← All diagrams

Find the part on the Crank Piston diagram for your 1973 Yamaha RD250 (RD250), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

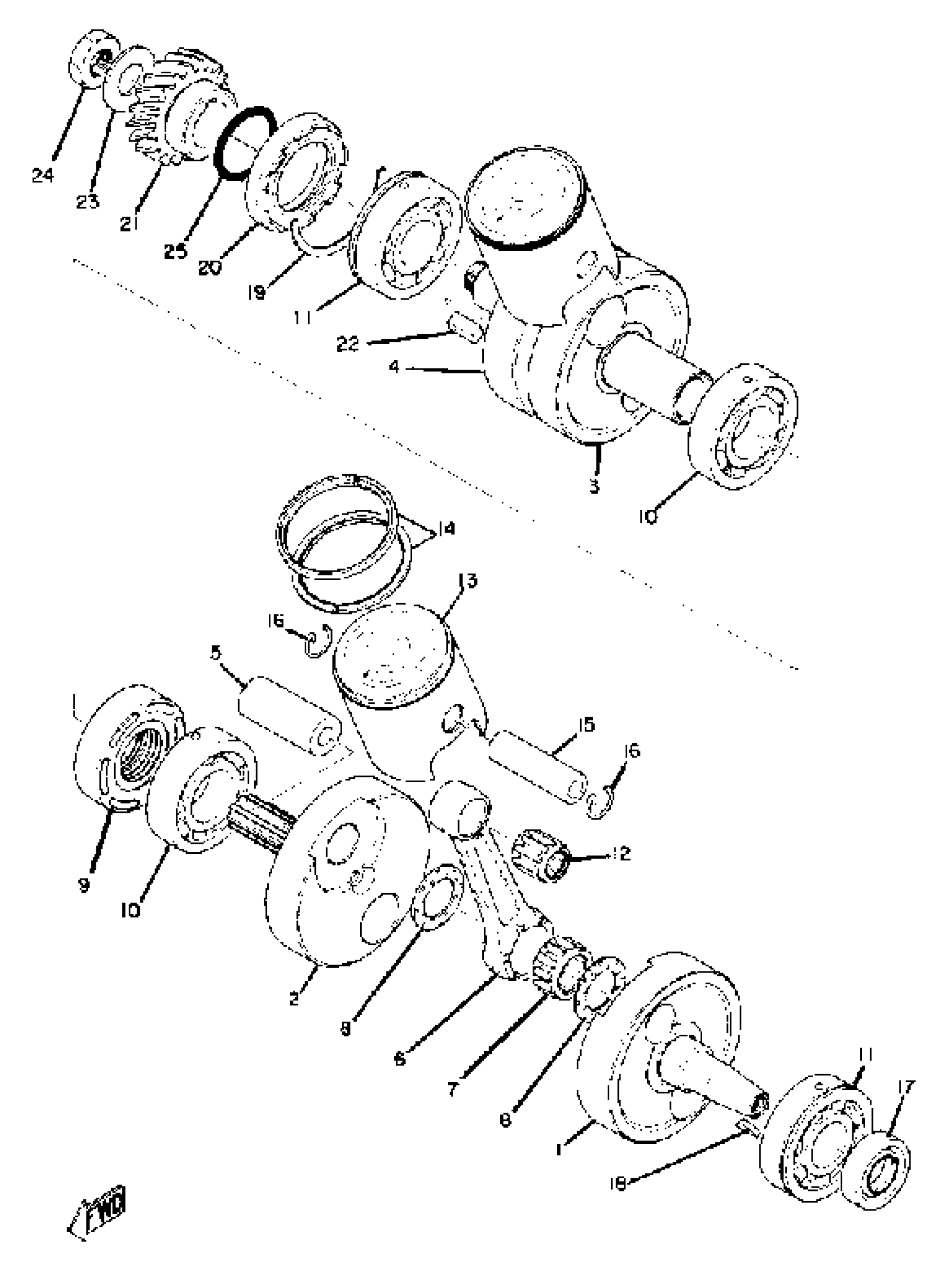

1973 Yamaha RD250 (RD250) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK 1

(278-11412-00-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(360-11400-00-00)

1
Out of stock

2

CRANK 2

(278-11422-00-00)

1
Out of stock

3

CRANK 3

(278-11432-00-00)

1
Out of stock

4

CRANK 4

(278-11442-00-00)

1
Out of stock

5

PIN, CRANK

8G8-11681-00-00

1

$24.98

In stock

6

ROD, CONNECTING

34X-11651-00-00

—

$77.82

In stock

7

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

8

WASHER (29L)

90209-22248-00

—
Out of stock

9

. SEAL, LABYRINTH 1

278-11515-00-00

1
Out of stock

10

1

$68.89

In stock

11

BEARING(1UA)

93306-30549-00

1
Out of stock

12

BEARING, NEEDLE (24X)

93310-216L2-00

1

$28.54

In stock

13

PISTON STD

361-11631-03-96

1
Out of stock

13

PISTON 1 O/S 0.25 (361-11635-02)

361-11635-03-00

1
Out of stock

14

PISTON RINGSET STD

361-11610-02-00

1
Out of stock

14

PISTON RINGSET 1ST

361-11610-12-00

1
Out of stock

14

PISTON RINGSET 2ND

361-11610-22-00

1
Out of stock

15

PIN,PISTON

280-11633-00-00

—

$27.37

In stock

16

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

17

OIL SEAL (20X40X10-360)

93103-20076-00

—

$25.78

In stock

18

KEY,WOODRUFF

90280-04005-00

1
Out of stock

19

CIRCLIP

278-17424-01-00

—
Out of stock

20

OIL SEAL (40X62X10-360)

93103-40077-00

—
Out of stock

21

GEAR, PRI DRIVE 000

(280-16111-01-00)

1
Out of stock

21

GEAR, PRI DRIVE 000

(280-16111-01-00)

1
Out of stock

22

KEY, STRAIGHT (584)

90282-07023-00

—
Out of stock

23

SPRING

214-16119-00-00

—
Out of stock

24

NUT

90170-16425-00

—
Out of stock

25

SEAL, CRANKSHAFT 000

360-11526-00-00

1
Out of stock

25

PISTON KIT STD

361-11630-00-00

1
Out of stock

25

PISTON KIT 1ST

(361-11630-10-00)

1
Out of stock

25

PISTON 2 O/S 0.50

361-11636-03-00

1
Out of stock

25

SEAL CRANK RD 001

(90891-10041-00)

1
Out of stock
Crankcase →
