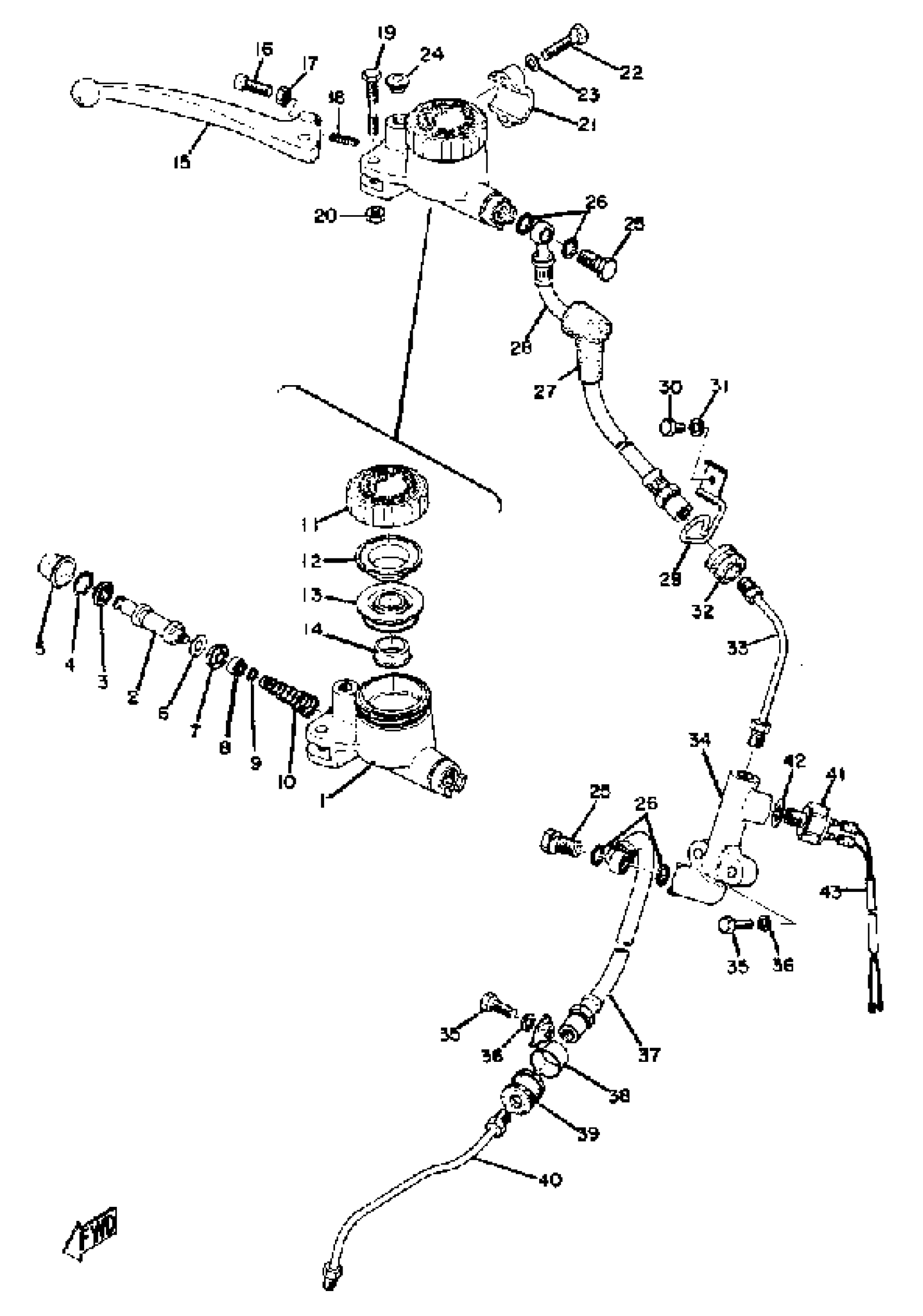

Yamaha RD250 (RD250) 1973 MASTER CYLINDER BRAKE HOSE RD250B Diagram

#

Description
Price

1

MSTR CYLINDER ASY

366-25850-02-00

Unavailable

2

CYLINDER KIT, MASTER

1A0-W0041-00-00

Unavailable

3

CUP KIT

(360-20000-20-00)

Unavailable

11

. CAP, RESERVOIR

360-25852-30-00

Unavailable

12

BUSH,DIAPHRAGM

2GU-25855-00-00

$30.99

13

DIAPHRAGM, RESERVER

360-25854-01-00

$23.99

14

.. FLOAT, RESERVOIR

360-25853-00-00

Unavailable

15

LEVER R

(341-83922-00-00)

Unavailable

16

SCREW

90146-06005-00

Unavailable

17

NUT HEXAGON 306839270000

90170-06010-00

$8.49

18

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

19

BOLT (4L0)

90109-06577-00

$5.60

20

NUT(650)

95380-06700-00

$8.49

21

BRACKET, MASTER

1J3-25867-00-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

$4.24

23

WASHER, SPRING

92995-06100-00

Unavailable

24

PLUG (341-26329-00)

90338-09012-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

BOOT, MASTER CYLINDER

360-25862-00-00

Unavailable

28

HOSE, BRAKE 1

(360-25872-05-00)

Unavailable

29

HOLDER, BRAKE HOSE

(351-25887-01-00)

Unavailable

30

BOLT (661)

97013-06012-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

PROTECTOR, BRAKE HOSE

341-25881-00-00

Unavailable

33

PIPE, BRAKE 3

(351-25883-01-00)

Unavailable

34

JOINT

(341-25885-03-00)

Unavailable

35

BOLT, HEXAGON

97017-06025-00

$4.24

36

WASHER, SPRING

92995-06100-00

Unavailable

37

HOSE, BRAKE 2

351-25873-05-00

Unavailable

38

HOLDER, BRKE HOSE 2

(306-25876-00-00)

Unavailable

39

PROTC, BRAKE HOSE

306-25881-00-00

Unavailable

40

PIPE, BRAKE

306-25871-00-00

Unavailable

41

STOP SWITCH ASSEMBLY

341-83980-30-00

Unavailable

42

WASHER PLATE 341839090000

90201-10128-00

Unavailable

43

WIRE, LEAD

(351-82531-00-00)

Unavailable
