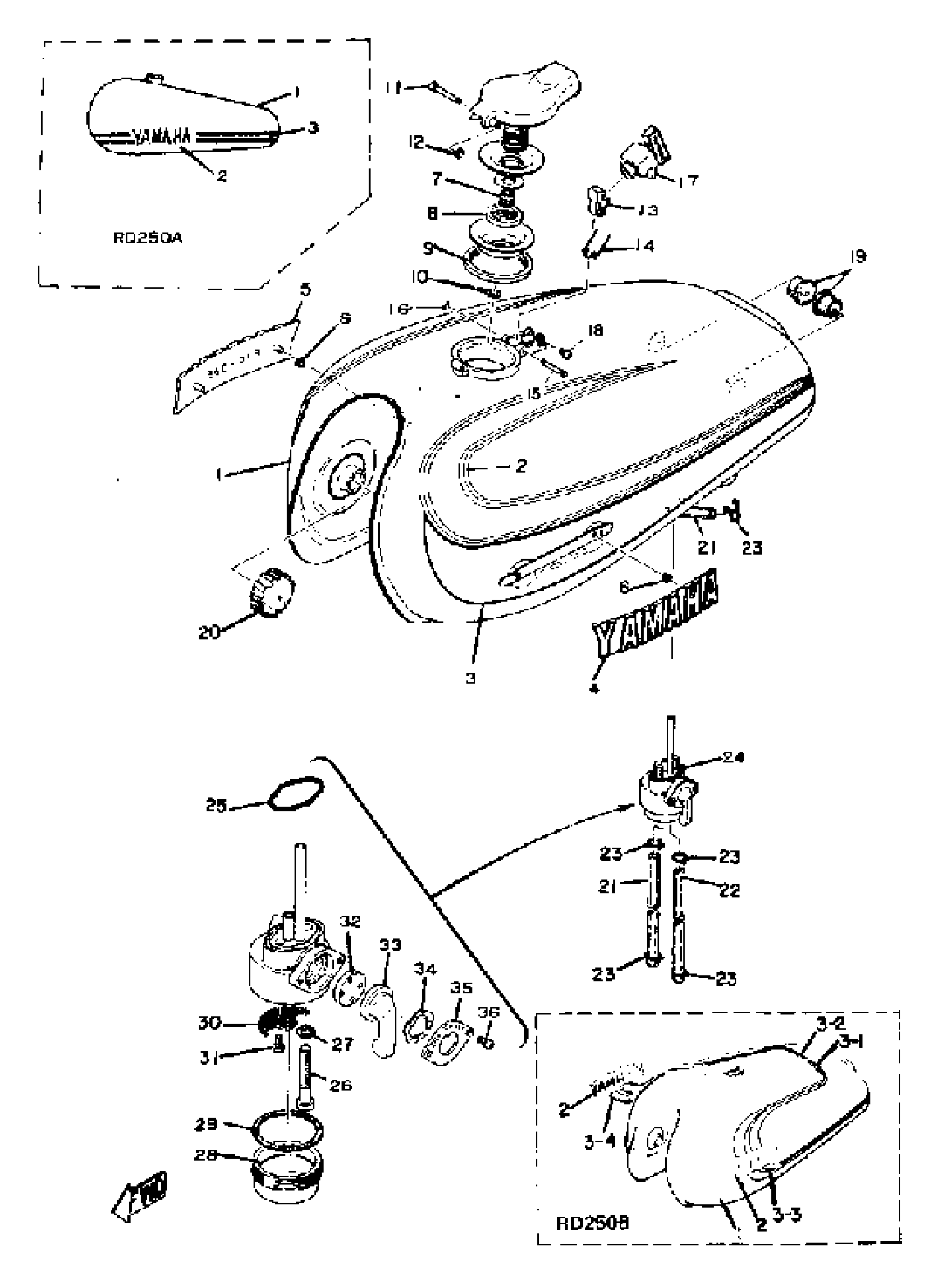

Yamaha RD250 (RD250) 1973 FUEL TANK Diagram

#

Description

Price

1

CAP ASSEMBLY

341-24653-00-00

Unavailable

1

FUEL TANK

(360-24110-01-X4)

Unavailable

1

FUEL TANK

(360-24110-20-02)

Unavailable

1

FUEL TANK

(360-24110-20-04)

Unavailable

1

GRAPHIC, FUEL TNK 7

(361-24254-20-00)

Unavailable

2

EMBLEM, YAMAHA(4GA)

99221-00140-00

$4.46

2

GRAPHIC, FUEL TNK 1

(360-24244-00-00)

Unavailable

2

GRAPHIC, FUEL TNK 2

(360-24245-00-00)

Unavailable

2

GRAPHIC, FUEL TNK 8

(361-24255-20-00)

Unavailable

2

EMBLEM, YAMAHA

99244-00140-00

$35.99

3

GRAPHIC, FUEL TNK 3

(360-24246-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 4

(360-24247-00-00)

Unavailable

3

GRPHC, FUEL TANK 11

(360-24258-00-00)

Unavailable

3

GRAPHIC, FUEL TNK 9

(361-24256-20-00)

Unavailable

4

EMBLEM 1

360-24161-01-00

Unavailable

4

GRPHC, FUEL TANK 10

(361-24257-20-00)

Unavailable

5

EMBLEM 2

360-24162-01-00

Unavailable

6

NUT, SPRING

90183-03006-00

Unavailable

7

GASKET, CAP 2

(308-24642-00-00)

Unavailable

8

GASKET, CAP 1

(308-24641-00-00)

Unavailable

9

. GASKET, CAP

341-24612-01-00

Unavailable

10

CIRCLIP(53L)

99001-06600-00

Unavailable

11

PIN, SPECIAL SHAPE (308-24623-00)

90249-03087-00

Unavailable

12

CIRCLIP (604)

93430-02001-00

Unavailable

13

HOOK

341-24628-00-00

Unavailable

14

SPRING, TORSION

90508-07235-00

Unavailable

15

PIN, SPECIAL SHAPE

90249-03088-00

Unavailable

16

CIRCLIP (604)

93430-02001-00

Unavailable

17

CAP ASSEMBLY

341-24602-01-00

Unavailable

18

SCREW, PAN HEAD

(92503-04020-00)

Unavailable

19

DAMPER, LOCATING 2

122-24182-01-00

Unavailable

20

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

21

HOSE (L420)

90445-092K1-00

Unavailable

22

HOSE (L420)

90445-092K1-00

Unavailable

23

CLIP 101235600

90467-08003-00

Unavailable

24

FUEL COCK ASSEMBLY 1

360-24500-00-00

Unavailable

25

GASKET, BODY

168-24512-00-00

Unavailable

26

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

27

GASKET(J17)

90430-06218-00

Unavailable

28

. CUP, FILTER

360-24521-00-00

Unavailable

29

. GASKET

168-24522-00-00

Unavailable

30

. NET, FILTER 2

168-24515-00-00

Unavailable

31

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

32

VALVE

137-24523-00-00

Unavailable

33

. LEVER, COCK

168-24524-00-00

Unavailable

34

WASHER, WAVE

132-24518-00-00

Unavailable

35

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

36

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable
