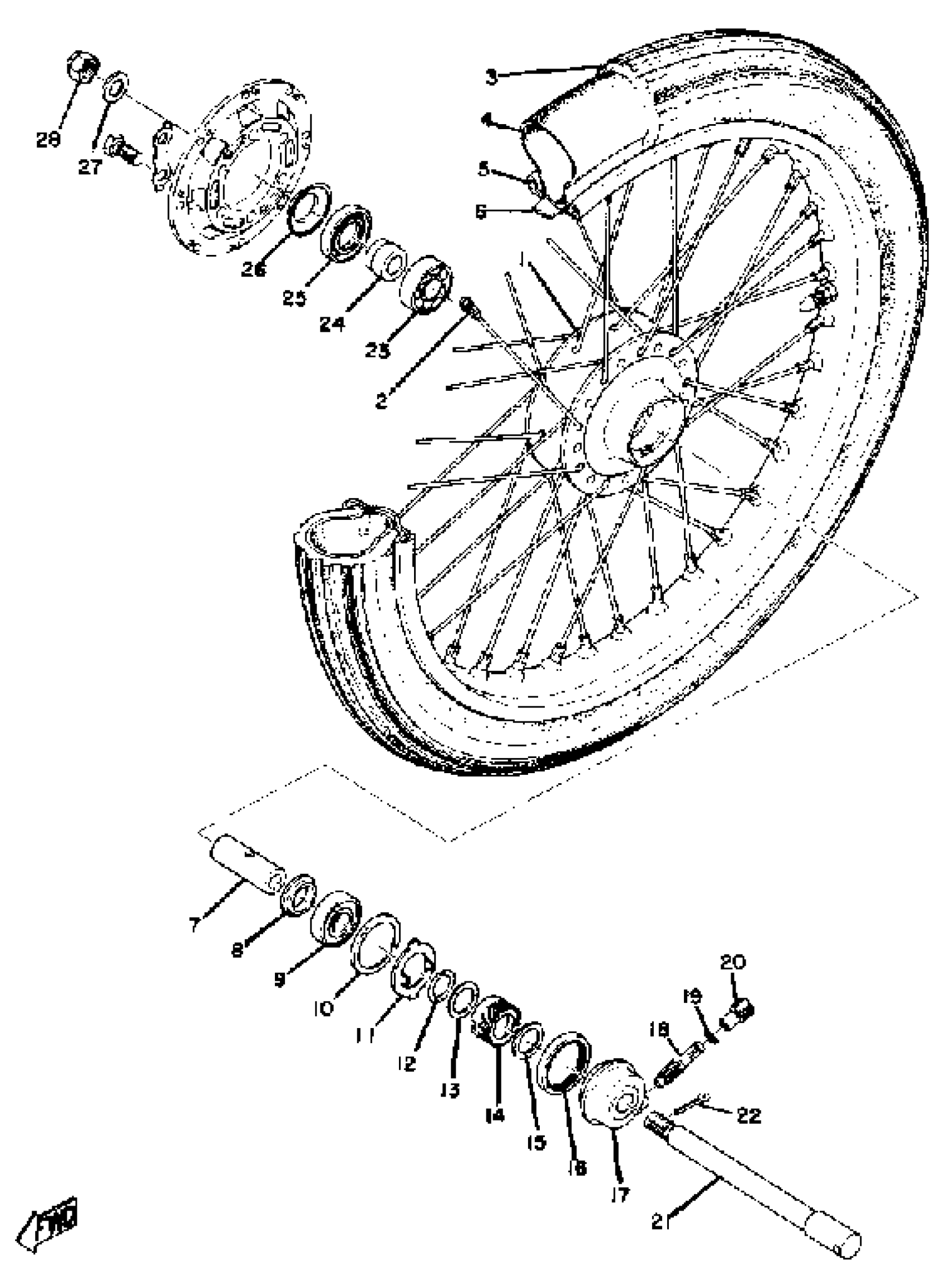

Yamaha RD250 (RD250) 1973 FRONT WHEEL RD250B Diagram

#

Description
Price

1

HUB, FRONT

(351-25111-00-00)

Unavailable

2

SPOKE SET, FRONT

351-25104-00-00

Unavailable

2

SPOKE SET, INNER 1

(351-25196-90-00)

Unavailable

2

SPOKE SET, OUTER 1

(351-25197-90-00)

Unavailable

3

YOKO 300S18 Y986

(94130-18363-00)

Unavailable

4

TUBE (5H5)

94227-18195-00

$35.99

5

RIM 1.60X18

(94416-18068-00)

Unavailable

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER

90560-17125-00

Unavailable

8

FLANGE, SPACER

146-25315-00-00

$7.99

9

BEARING(4HM)

93306-30317-00

$39.99

10

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

11

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

12

RING, STOP

341-25137-00-00

Unavailable

13

WASHER PLATE 341251470000

90201-25286-00

Unavailable

14

GEAR, DRIVE

(351-25135-00-00)

Unavailable

15

WASHER PLATE 152172260000

90201-25490-00

Unavailable

16

OIL SEAL (45X56X6)

93105-45017-00

Unavailable

17

GEAR UNIT ASSY

4TR-25190-20-00

Unavailable

18

GEAR, METER

351-25138-00-00

Unavailable

19

SHIM, ROD

102-18416-00-00

Unavailable

20

BUSH

306-25136-00-00

Unavailable

21

AXLE, WHEEL

351-25181-10-00

Unavailable

22

PIN, COTTER

91490-30030-00

Unavailable

23

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

24

COLLAR

90387-17433-00

Unavailable

25

OIL SEAL (28X47X7-102)

93102-28022-00

Unavailable

26

COVER, HUB DUST

341-25118-00-00

Unavailable

27

WASHER, PLAIN

92990-14200-00

Unavailable

28

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable
