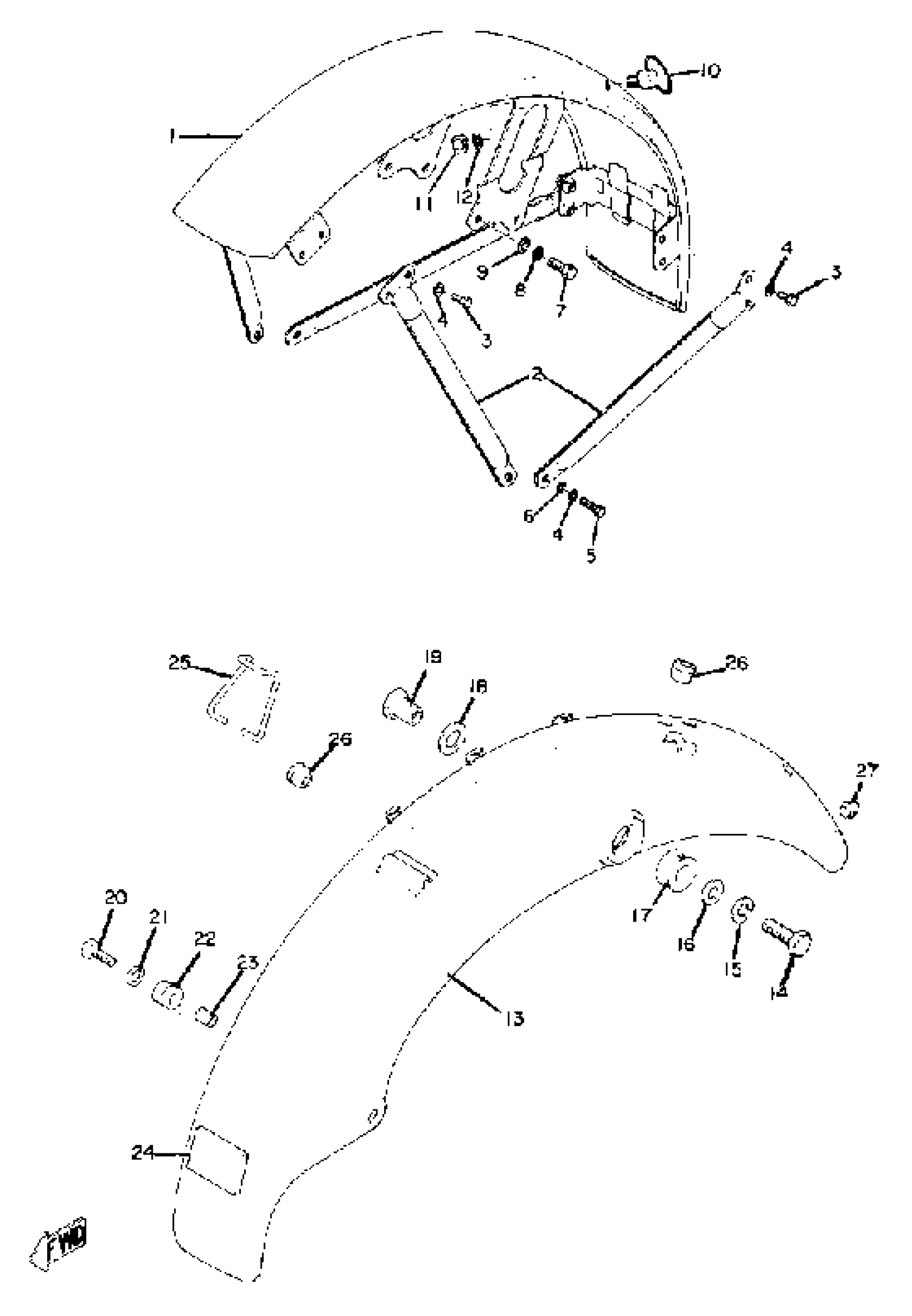

Yamaha RD250 (RD250) 1973 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(351-21510-00-93)

Unavailable

2

STAY, FENDER 1

(351-21513-00-00)

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

WASHER, SPRING

92995-06100-00

Unavailable

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

BOLT(JA9)

90101-08691-00

$4.29

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

WASHER, PLAIN

92990-08200-00

Unavailable

10

HOLDER, CABLE

(174-21518-00-00)

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

WASHER, SPRING

92995-06100-00

Unavailable

13

FENDER, REAR

(351-21610-00-93)

Unavailable

14

BOLT(N02)

97070-10035-00

$14.99

15

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

16

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

17

DAMPER, REAR

168-21639-00-00

Unavailable

18

WASHER, PLATE

90201-15239-00

Unavailable

19

NUT, SPEC''L SHAPE

90179-10123-00

Unavailable

20

BOLT, HEXAGON

97017-06020-00

Unavailable

21

WASHER, PLATE

90201-06380-00

Unavailable

22

GROMMET 839774310000

90480-14023-00

Unavailable

23

COLLAR

90387-07020-00

Unavailable

24

SEAL

(214-21268-00-00)

Unavailable

25

CLAMP, WIRE HRNES 2

(278-21336-00-00)

Unavailable

26

GROMMET 152845180000

90480-12013-00

Unavailable

27

DAMPER 2

5A8-21639-00-00

Unavailable
