Description

Price

1

COVER, CRANKCASE L

(360-15411-01-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

SCREW, PAN

98507-06035-00

$8.49

4

SCREW, PAN

98517-06020-00

$8.49

5

COVER, GENERATOR

(360-15415-01-00)

Unavailable

6

COVER, GENERATOR R

360-15425-01-00

Unavailable

7

SCREW, PAN

98507-06060-00

$7.99

8

COVER, CAP

(360-15417-00-00)

Unavailable

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

COVER, CRANKCASE R

(360-15421-01-00)

Unavailable

11

EMBLEM

360-15435-00-00

Unavailable

12

PIN, DOWEL

99530-12016-00

$4.89

13

GASKET, CRANK CASE COVER (R.H)

278-15461-12-00

$35.99

14

SCREW, PAN

98507-06040-00

$3.22

15

SCREW, PAN

98517-06030-00

Unavailable

16

COVER, OIL PUMP

(360-15416-01-00)

Unavailable

17

SCREW, PAN

98507-06035-00

$8.49

18

PLUG, OIL

360-15363-01-00

Unavailable

19

O-RING(1KT)

93210-27778-00

Unavailable

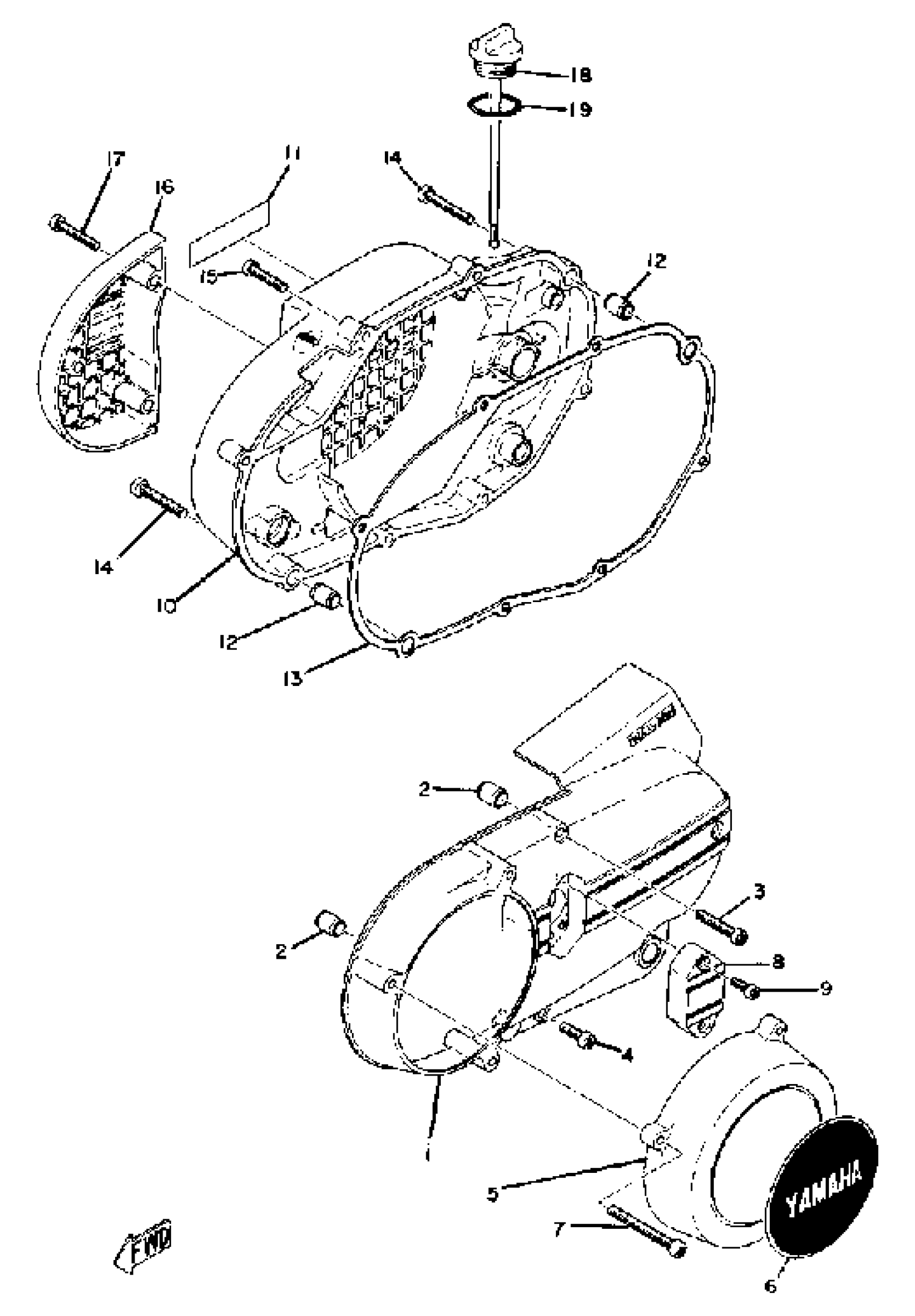

Yamaha RD250 (RD250) 1973 CRANKCASE COVER Diagram

COVER, CRANKCASE L

PIN, DOWEL

SCREW, PAN

SCREW, PAN

COVER, GENERATOR

COVER, GENERATOR R

SCREW, PAN

COVER, CAP

SCREW, PAN HEAD

COVER, CRANKCASE R

EMBLEM

PIN, DOWEL

GASKET, CRANK CASE COVER (R.H)

SCREW, PAN

SCREW, PAN

COVER, OIL PUMP

SCREW, PAN

PLUG, OIL

O-RING(1KT)
