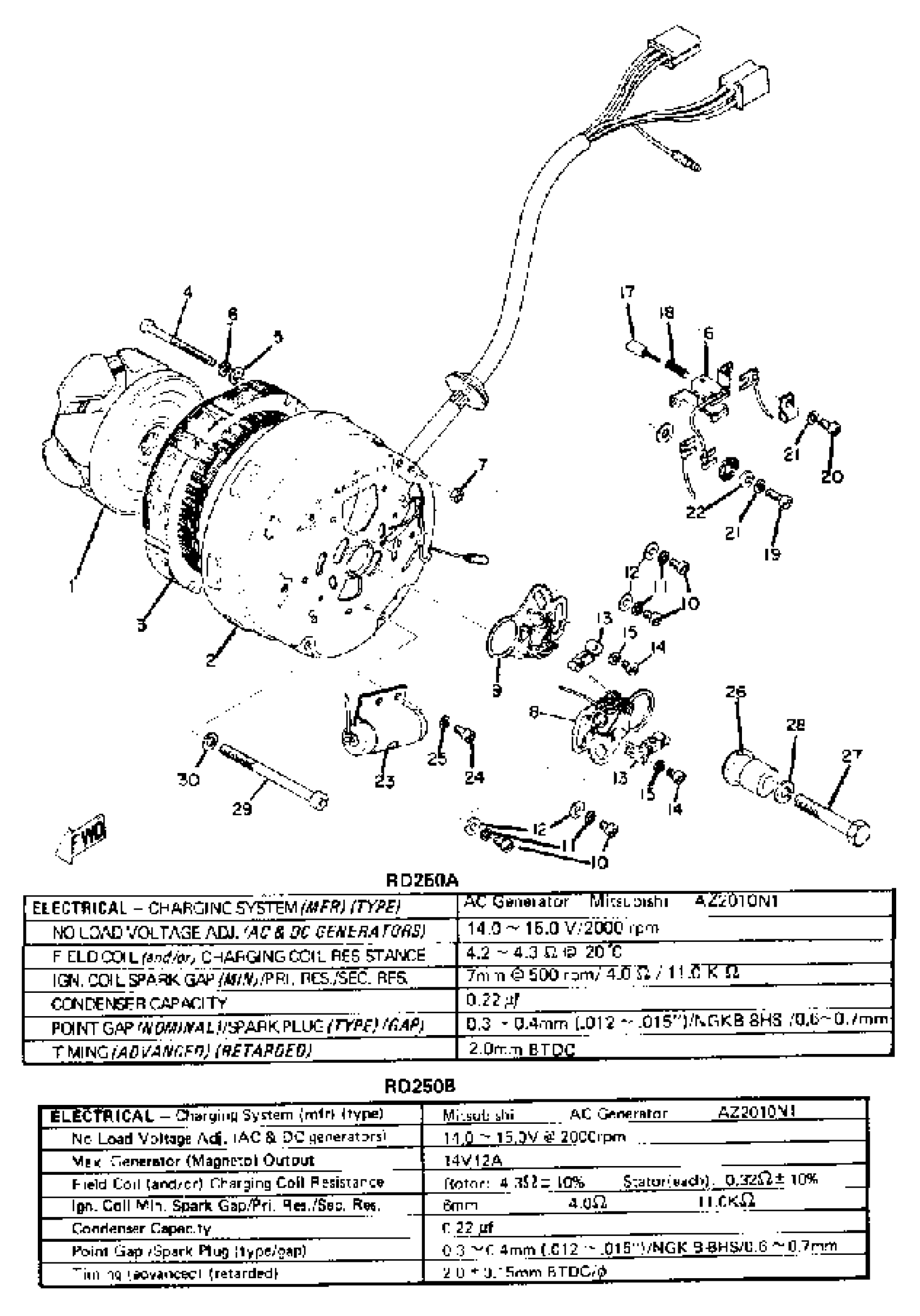

Yamaha RD250 (RD250) 1973 AC GENERATOR Diagram

#

Description
Price

1

AC GENERATOR ASSEMBLY

(360-81600-92-00)

Unavailable

1

. ROTOR ASSEMBLY

(360-81650-20-00)

Unavailable

2

AC GENERATOR ASSEMBLY

(360-81600-92-00)

Unavailable

3

.. ARMATURE ASSEMBLY

360-81640-20-00

Unavailable

4

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

5

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

NUT(6TA)

95307-04600-00

$8.49

8

POINT GAUGE

(169-28121-00-00)

Unavailable

8

.. CONTACT BRKR ASSEMBLY

278-81621-20-00

Unavailable

8

.. CONTACT BRKR ASSEMBLY

278-81621-20-00

Unavailable

8

.. CONTACT BRKR ASSEMBLY

278-81622-20-00

Unavailable

8

.. CONDENSER 1

360-81625-90-00

Unavailable

8

TUNE KIT RD250/350

ACC-01100-35-10

Unavailable

8

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

9

.. CONTACT BRKR ASSEMBLY

278-81622-20-00

Unavailable

10

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

13

LUBRICATOR

(131-81231-20-00)

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

.. BRUSH HOLDER ASSEMBLY

360-81619-20-00

Unavailable

17

.. BRUSH 1

278-81611-20-00

Unavailable

18

.. SPRING, BRUSH

278-81617-20-00

Unavailable

19

SCREW, PAN HEAD

98511-04012-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

21

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

22

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

23

POINT GAUGE

(169-28121-00-00)

Unavailable

23

.. CONTACT BRKR ASSEMBLY

278-81621-20-00

Unavailable

23

.. CONTACT BRKR ASSEMBLY

278-81622-20-00

Unavailable

23

.. CONDENSER 1

360-81625-90-00

Unavailable

23

.. CONDENSER 1

360-81625-90-00

Unavailable

23

TUNE KIT RD250/350

ACC-01100-35-10

Unavailable

23

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

Unavailable

24

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

25

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

26

. CAM

278-81651-20-00

Unavailable

27

. BOLT

278-81652-20-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

29

SCREW,PANHEAD (EG9)

98580-05570-00

Unavailable

30

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
