1976 Yamaha RD200 (RD200C) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

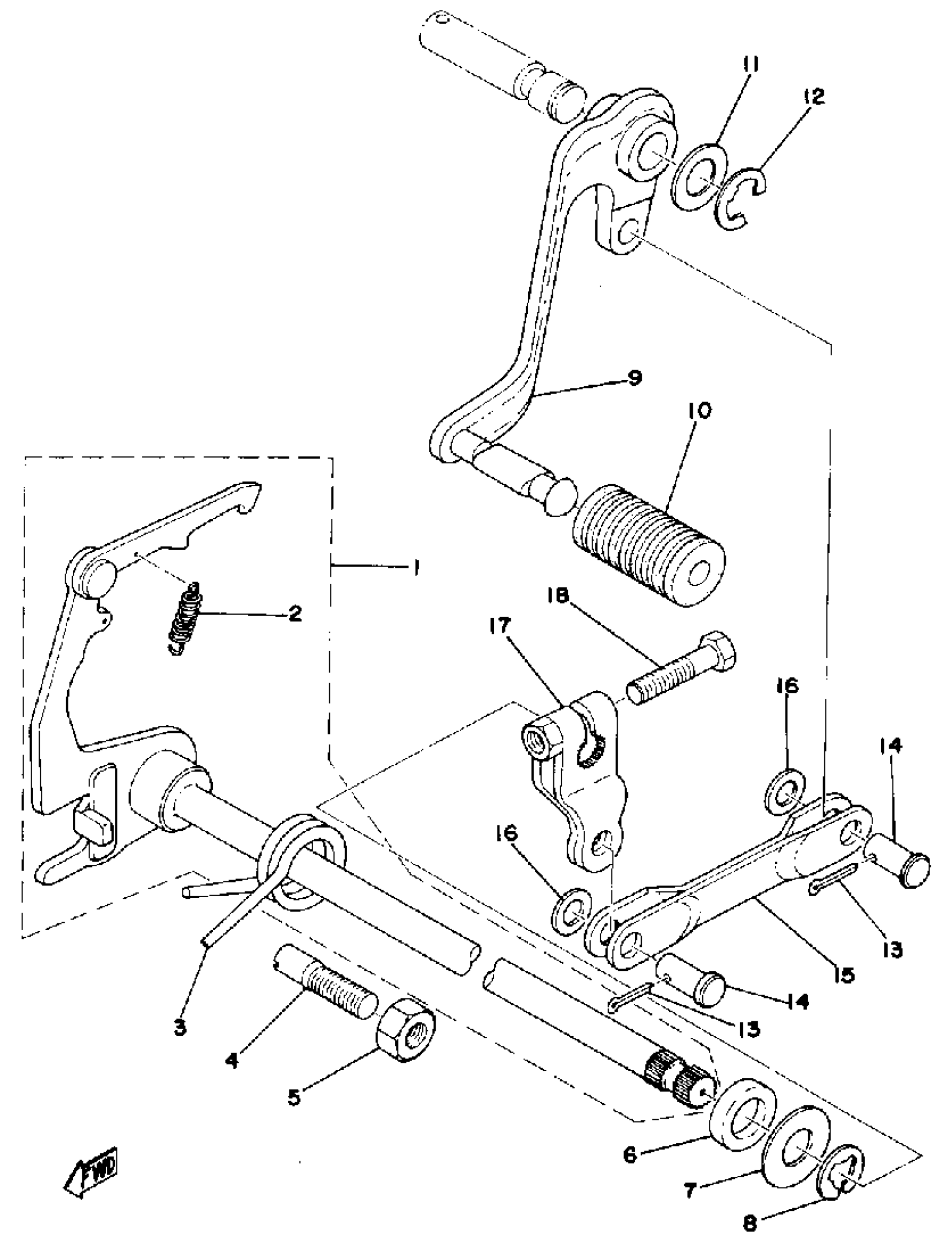

1976 Yamaha RD200 (RD200C) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY.1

174-18101-02-00

1
Out of stock

2

—

$6.68

In stock

3

SPRING TORSION 132181240000

90508-32207-00

1
Out of stock

4

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

5

NUT(6L2)

95333-08600-00

1

$3.20

In stock

6

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

7

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

8

CIRCLIP

99006-10600-00

1

$6.91

In stock

9

UNAVAILABLE IN PRICE BOOK

2R-71811-10-09

1
Out of stock

10

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

11

WASHER, PLATE

90201-12047-00

1

$7.54

In stock

12

CIRCLIP

99006-10600-00

1

$6.91

In stock

13

PIN, COTTER

91490-16020-00

1

$6.23

In stock

14

PIN W/HOLE 307181180000

90240-08013-00

1

$5.10

In stock

15

ROD, SHIFT

(337-18115-00-00)

1
Out of stock

16

WASHER PLATE 141181390000

90201-08085-00

—

$6.38

In stock

17

ARM, SHIFT

4X8-18112-00-00

—

$21.34

In stock

18

BOLT(JF7)

97080-06030-00

—

$3.45

In stock
