1976 Yamaha RD200 (RD200C) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

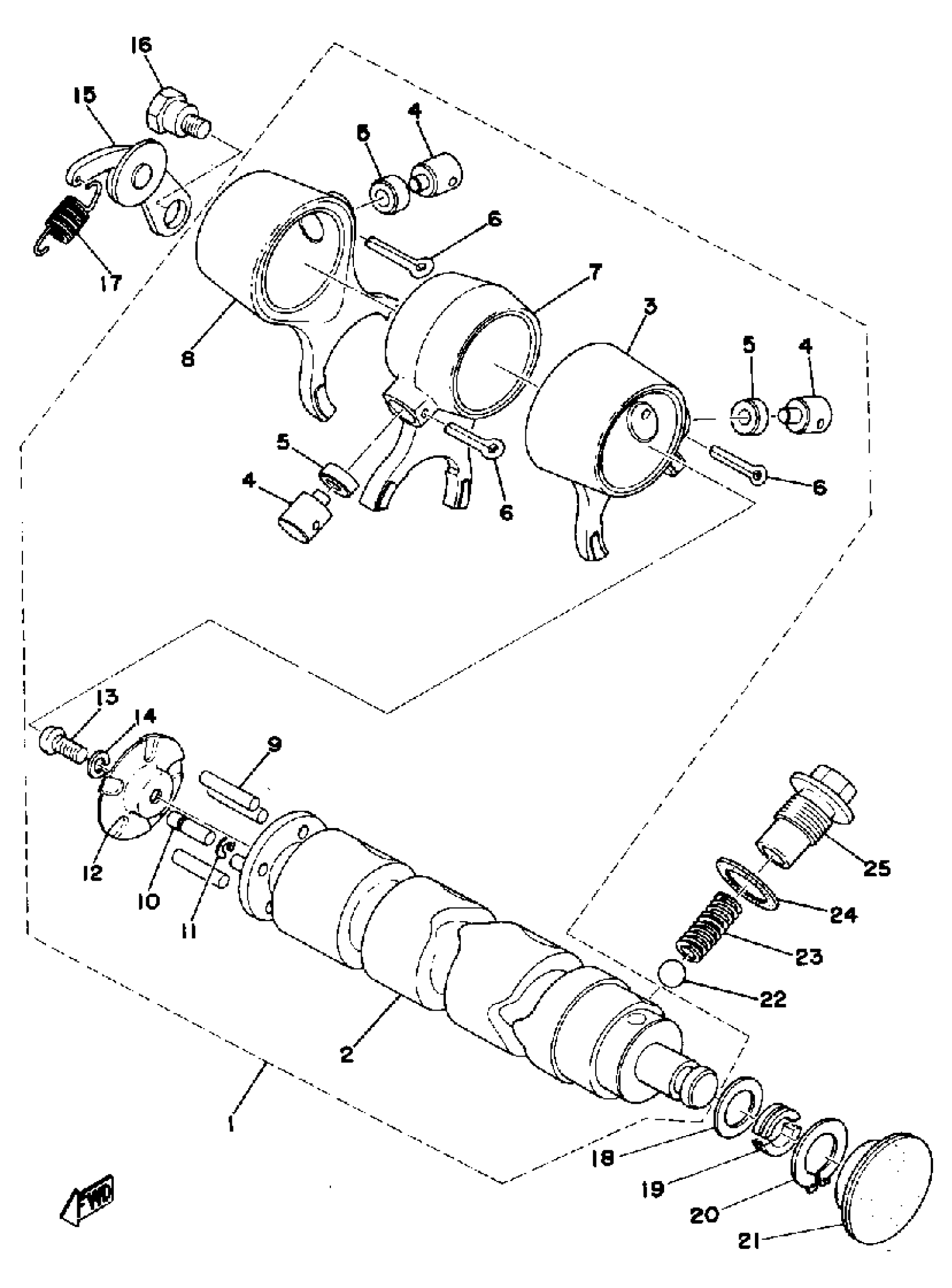

1976 Yamaha RD200 (RD200C) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

17-41850-00-30

1
Out of stock

2

. UNAVAILABLE IN PRICE BOOK

17-41854-10-30

1
Out of stock

3

FORK, SHIFT 1

(174-18511-00-00)

1
Out of stock

4

. UNAVAILABLE IN PRICE BOOK

90-25010-02-00

1
Out of stock

5

. UNAVAILABLE IN PRICE BOOK

16-41855-10-00

1
Out of stock

6

PIN, COTTER

91490-25020-00

1

$2.94

In stock

7

. UNAVAILABLE IN PRICE BOOK

17-41851-20-00

1
Out of stock

8

. UNAVAILABLE IN PRICE BOOK

17-41851-30-00

1
Out of stock

9

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

10

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

11

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

12

PLATE, SIDE

164-18561-00-00

1

$5.42

In stock

13

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

STOPPER LEVER ASSY

132-18140-01-00

1

$14.20

In stock

16

BOLT

90109-06239-00

—

$5.77

In stock

17

SPRING, TENSION (260)

90506-09112-00

—
Out of stock

18

WASHER PLATE 164185720000

90201-12166-00

—

$6.29

In stock

19

HOLDER, SHIFT CAM

307-18571-00-00

1
Out of stock

20

CIRCLIP

93440-15012-00

—
Out of stock

21

PLUG, BLIND

(307-18533-00-00)

1
Out of stock

22

BALL

93505-16006-00

—

$2.22

In stock

23

SPRING, COMPRESION

90501-12750-00

1
Out of stock

24

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

25

BOLT

90109-14385-00

—

$13.66

In stock
