1976 Yamaha RD200 (RD200C) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

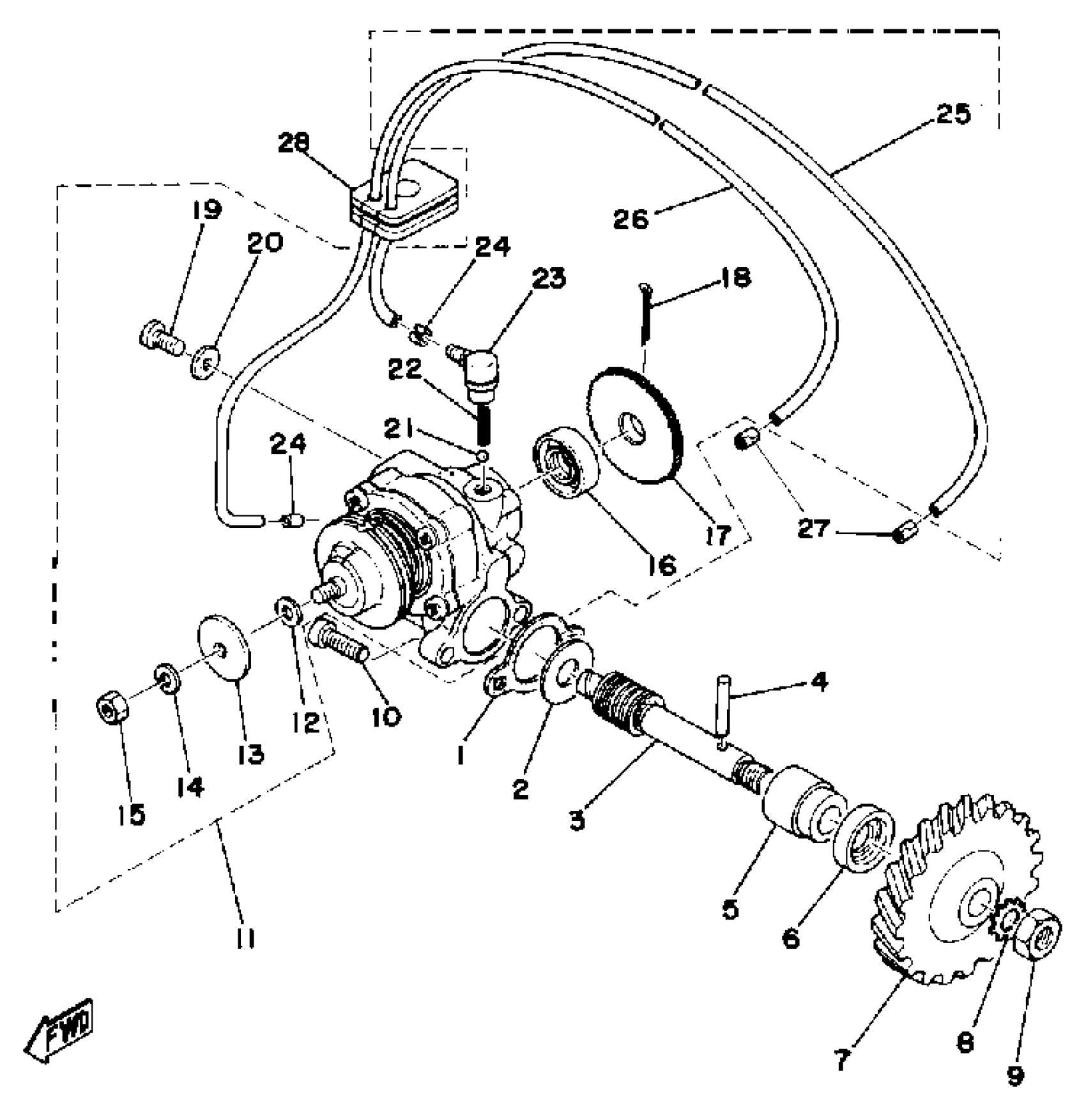

1976 Yamaha RD200 (RD200C) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

3

UNAVAILABLE IN PRICE BOOK

17-41317-50-00

1
Out of stock

4

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

5

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

6

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

7

UNAVAILABLE IN PRICE BOOK

17-41317-80-00

1
Out of stock

8

WASHER (688)

92990-08400-00

1

$3.46

In stock

9

. NUT

95380-08700-00

1

$3.07

In stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

11

OIL PUMP ASSEMBLY

(417-13101-00-00)

1
Out of stock

12

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

13

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

17

. UNAVAILABLE IN PRICE BOOK

13-71312-80-00

1
Out of stock

18

. PIN, COTTER

91401-12018-00

1
Out of stock

19

SCREW, BIND

98980-04008-00

1

$3.26

In stock

20

GASKET 137131870000

90430-04004-00

—
Out of stock

21

BALL

93505-32002-00

—

$2.22

In stock

22

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

23

NOZZLE

353-13552-01-00

—
Out of stock

24

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

25

HOSE (L700)

90445-05M07-00

1
Out of stock

26

HOSE (L700)

90445-05M07-00

1
Out of stock

27

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

28

UNAVAILABLE IN PRICE BOOK

29-31317-40-00

1
Out of stock
