1976 Yamaha RD200 (RD200C) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

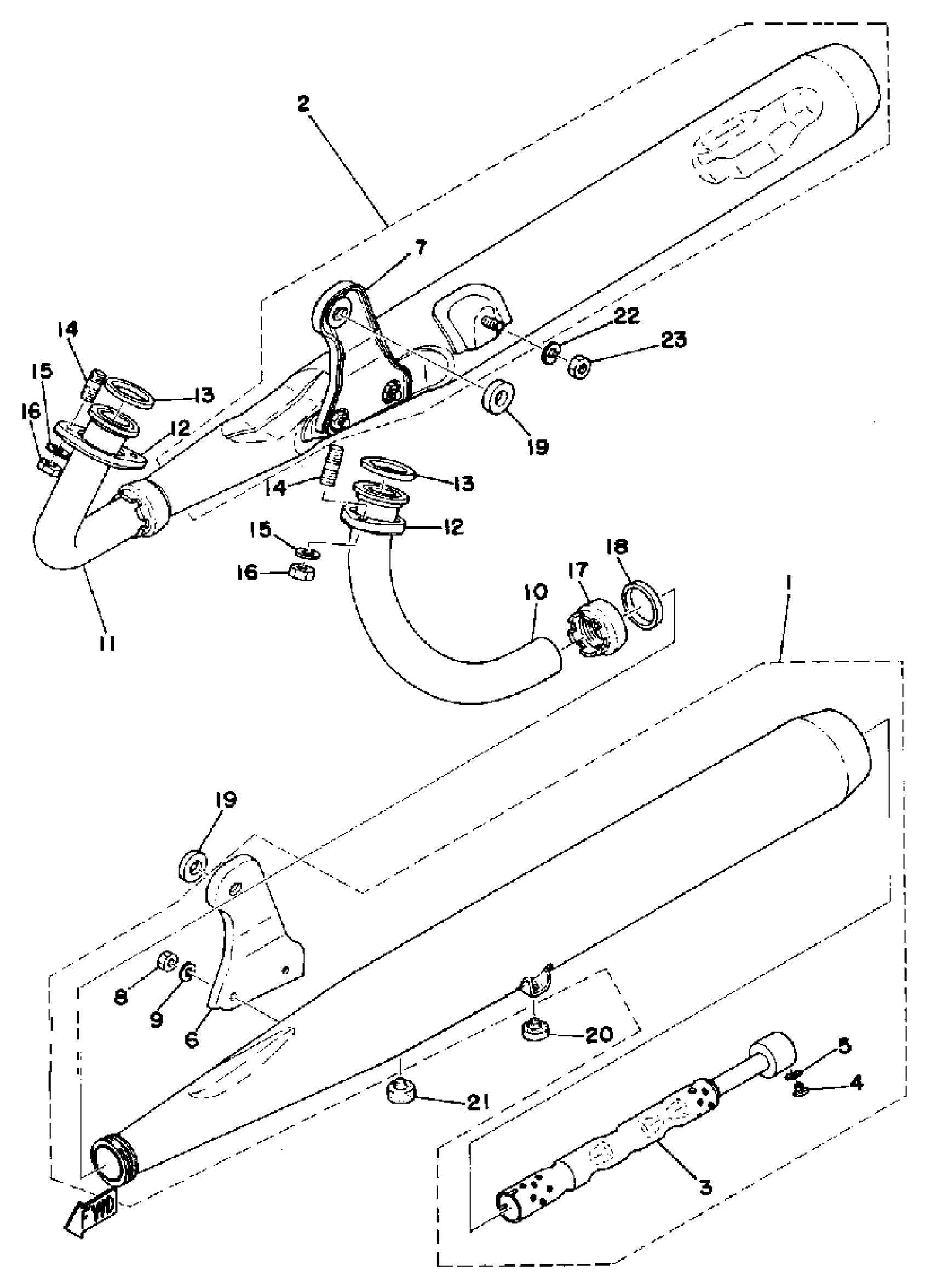

1976 Yamaha RD200 (RD200C) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

39-71471-00-10

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

39-71472-00-10

1
Out of stock

3

. UNAVAILABLE IN PRICE BOOK

39-71475-30-00

1
Out of stock

4

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. UNAVAILABLE IN PRICE BOOK

39-71477-10-03

1
Out of stock

7

. UNAVAILABLE IN PRICE BOOK

39-71478-10-03

1
Out of stock

8

NUT(6L2)

95333-08600-00

1

$3.20

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

UNAVAILABLE IN PRICE BOOK

39-71461-10-20

1
Out of stock

11

UNAVAILABLE IN PRICE BOOK

39-71462-10-20

1
Out of stock

12

UNAVAILABLE IN PRICE BOOK

30-71461-20-00

1
Out of stock

13

GASKET, EXHAUST PIPE

3MT-14613-00-00

1
Out of stock

14

BOLT, STUD (17W)

90116-08408-00

—

$15.12

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

NUT(6L2)

95333-08600-00

1

$3.20

In stock

17

NUT, MUFFLER JOINT

132-14713-00-00

1
Out of stock

18

GASKET, MUFFLER

3NA-14714-01-00

—

$21.72

In stock

19

UNAVAILABLE IN PRICE BOOK

33-71477-90-00

1
Out of stock

20

STOPPER

1M3-27114-00-00

—

$8.09

In stock

21

STOPPER, MAIN STAND

371-27114-00-00

—

$5.80

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

23

NUT(6L2)

95333-08600-00

1

$3.20

In stock
