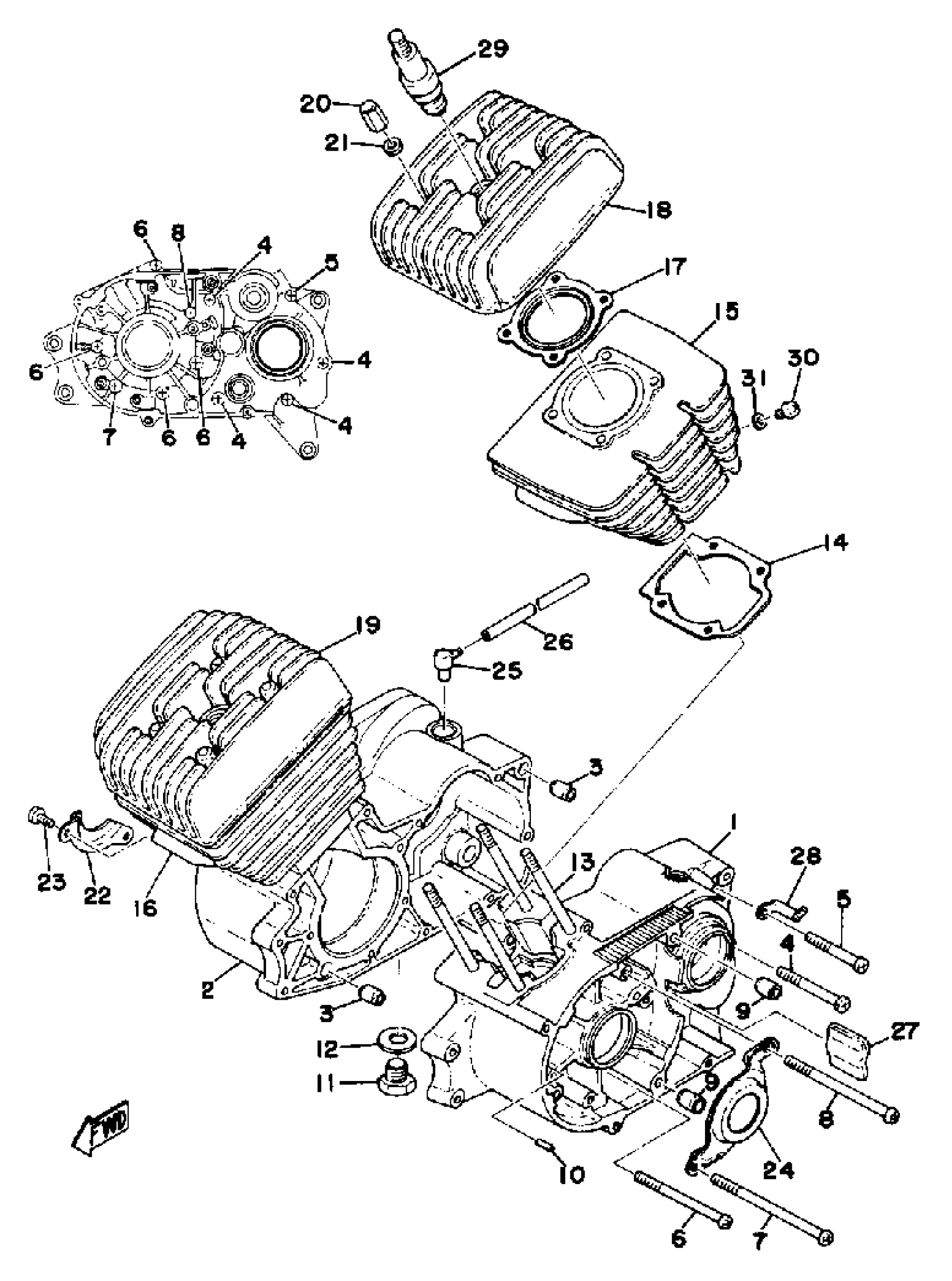

Yamaha RD200C (RD200) 1976 CRANKCASE CYLINDER Diagram

#

Description
Price

1

CRANKCASE 1

(397-15111-00-00)

Unavailable

2

CRANKCASE 2

(397-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW, BIND (JH1)

98580-06560-00

Unavailable

5

SCREW PAN HEAD

98580-06550-00

$8.49

6

SCREW, PAN

98507-06085-00

$6.99

7

SCREW, PAN HEAD(3VM)

98507-06110-00

Unavailable

8

SCREW, PAN

98507-06100-00

$8.49

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

PIN, DOWEL

93603-14026-00

$8.49

11

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

12

GASKET (3JD1)

90430-12207-00

$7.99

13

BOLT, STUD (174-11361-00)

90116-07033-00

Unavailable

14

GASKET,CYLINDER

397-11351-09-00

Unavailable

15

UNAVAILABLE IN PRICE BOOK

[39-71131-10-20

Unavailable

16

UNAVAILABLE IN PRICE BOOK

[39-71132-10-20

Unavailable

17

GASKET, CYLINDER HEAD 1

273-11181-00-00

Unavailable

18

UNAVAILABLE IN PRICE BOOK

[41-71111-10-00

Unavailable

19

UNAVAILABLE IN PRICE BOOK

[41-71112-10-00

Unavailable

20

NUT, CROWN (166-11171-60)

90176-07003-00

Unavailable

21

WASHER, PLATE

90201-07077-00

Unavailable

22

UNAVAILABLE IN PRICE BOOK

[39-71511-80-00

Unavailable

23

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

24

UNAVAILABLE IN PRICE BOOK

[38-91512-80-00

Unavailable

25

BREATHER

583-15371-00-00

Unavailable

26

HOSE(7EG)

90446-07241-00

Unavailable

27

UNAVAILABLE IN PRICE BOOK

[24-11535-70-00

Unavailable

28

CLAMP

(90465-08046-00)

Unavailable

29

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

30

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

31

GASKET(3FP)

90430-06224-00

Unavailable
