1976 Yamaha RD200 (RD200C) Carburetor Diagram

← All diagrams

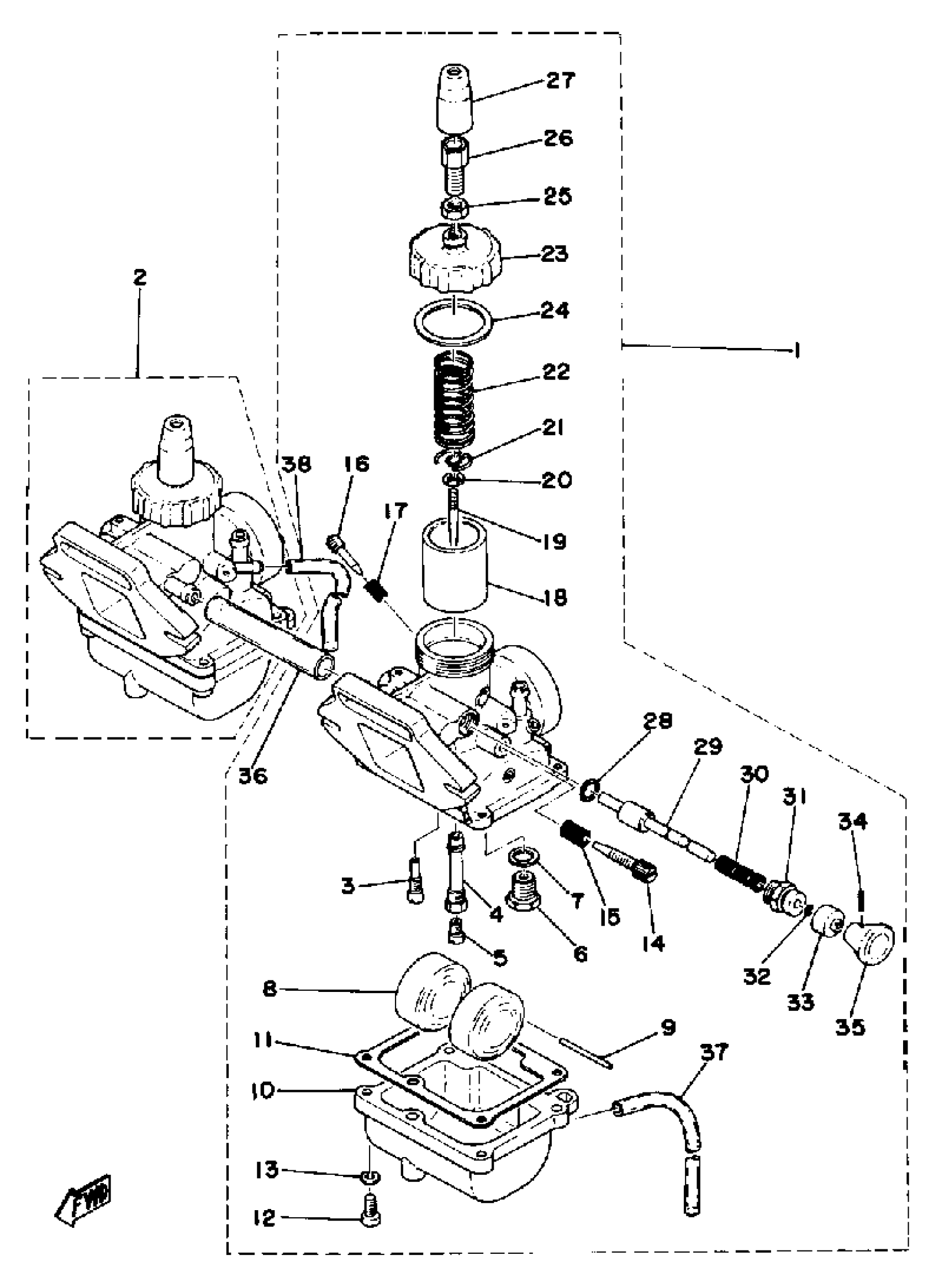

Find the part on the Carburetor diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha RD200 (RD200C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

. UNAVAILABLE IN PRICE BOOK

39-71431-32-50

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

39-71430-16-40

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

39-71430-26-40

1
Out of stock

3

. UNAVAILABLE IN PRICE BOOK

36-71434-22-20

1
Out of stock

4

. NOZZLE, MAIN

396-14341-00-00

1
Out of stock

5

. JET, MAIN #88

396-14343-44-00

1
Out of stock

5

. JET, MAIN #90

396-14343-45-00

1
Out of stock

5

JET, MAIN #92

(396-14343-46-00)

1
Out of stock

5

. JET, MAIN #94

396-14343-47-00

1
Out of stock

5

. UNAVAILABLE IN PRICE BOOK

39-61434-34-80

1
Out of stock

6

. NEEDLE VALVE ASSEMBLY (396-14390-25-00)

1J2-14390-25-00

1
Out of stock

7

WASHER, VALVE SEAT

367-14195-00-00

1

$5.52

In stock

8

FLOAT

367-14385-00-00

—
Out of stock

9

PIN, FLOAT

367-14386-00-00

1

$5.32

In stock

10

. BODY, FLOAT CHMBR 1

397-14181-14-00

1
Out of stock

11

. GASKET, FLOAT CHMBR

389-14384-00-00

1
Out of stock

12

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

14

. SCREW, PILOT ADJUSTING

396-14211-00-00

1
Out of stock

15

. SPRING, PILOT ADJUSTING

389-14212-00-00

1
Out of stock

16

. SCREW, AIR ADJUSTING

396-14323-00-00

1
Out of stock

17

. SPRING, THRTL STOP

389-14333-00-00

1
Out of stock

18

. UNAVAILABLE IN PRICE BOOK

39-71431-22-50

1
Out of stock

19

. UNAVAILABLE IN PRICE BOOK

39-71433-60-00

1
Out of stock

20

. CLIP

389-14137-00-00

1

$2.90

In stock

21

. SEAT, SPRING

396-14136-02-00

1
Out of stock

22

. UNAVAILABLE IN PRICE BOOK

39-61433-10-00

1
Out of stock

23

. UNAVAILABLE IN PRICE BOOK

38-91416-80-03

1
Out of stock

24

. UNAVAILABLE IN PRICE BOOK

38-91412-60-00

1
Out of stock

25

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

26

. UNAVAILABLE IN PRICE BOOK

39-61412-40-00

1
Out of stock

27

. CAP

367-14169-00-00

1
Out of stock

28

O-RING

(389-14147-00-00)

1
Out of stock

29

PLUNGER, STARTER

(396-14371-00-00)

1
Out of stock

30

. UNAVAILABLE IN PRICE BOOK

38-91433-50-00

1
Out of stock

31

CAP, PLUNGER

(396-14374-00-00)

1
Out of stock

32

. UNAVAILABLE IN PRICE BOOK

38-91413-80-00

1
Out of stock

33

. UNAVAILABLE IN PRICE BOOK

38-91437-30-00

1
Out of stock

34

PIN, SPRING

91690-20008-00

—

$7.77

In stock

35

. KNOB, STARTER

389-14261-01-00

1
Out of stock

36

. UNAVAILABLE IN PRICE BOOK

39-71434-90-00

1
Out of stock

37

. UNAVAILABLE IN PRICE BOOK

38-91439-60-00

1
Out of stock

38

. UNAVAILABLE IN PRICE BOOK

39-61434-80-00

1
Out of stock
