1976 Yamaha RD200 (RD200C) AIR Filter Diagram

← All diagrams

Find the part on the AIR Filter diagram for your 1976 Yamaha RD200 (RD200C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

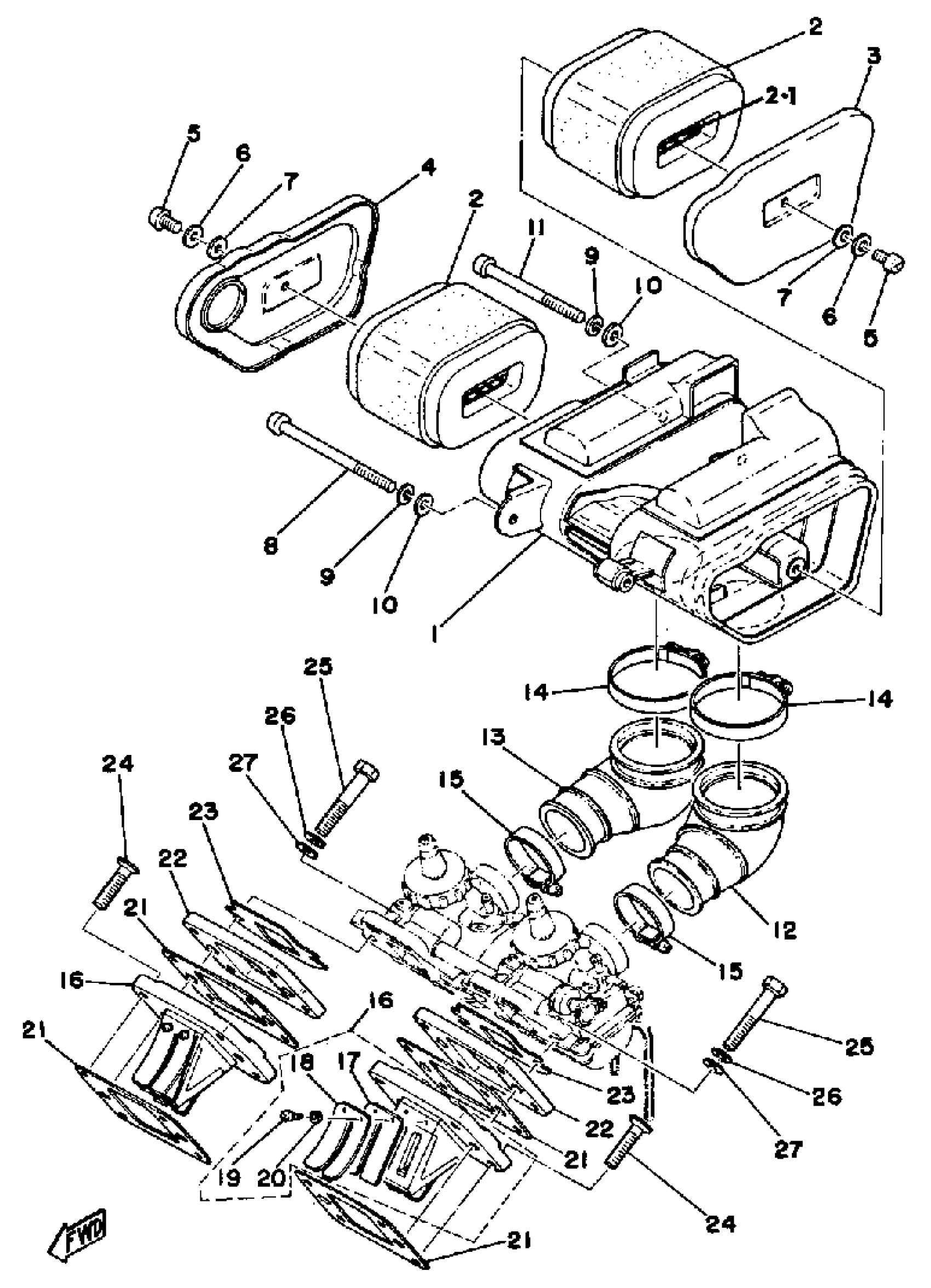

1976 Yamaha RD200 (RD200C) AIR Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(397-14411-00-00)

1
Out of stock

2

ELEMENT, AIR CLNR

396-14451-09-00

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK

38-91441-20-10

1
Out of stock

4

UNAVAILABLE IN PRICE BOOK

39-71442-20-00

1
Out of stock

5

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

WASHER, PLATE (463)

90202-05057-00

—

$2.45

In stock

8

SCREW, PAN HEAD

98580-06580-00

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

SCREW PAN HEAD

98580-06570-00

1

$17.32

In stock

12

JOINT, AIR CLNR 1

(397-14453-01-00)

1
Out of stock

13

JOINT, AIR CLNR 2

397-14463-01-00

1
Out of stock

14

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

15

CLAMP, HOSE (5R2)

90460-41191-00

1
Out of stock

16

UNAVAILABLE IN PRICE BOOK

38-91361-00-10

1
Out of stock

17

. REED, VALVE

389-13613-00-00

1
Out of stock

18

. UNAVAILABLE IN PRICE BOOK

38-91361-60-10

1
Out of stock

19

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

20

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

21

GASKET,VALVE SEAT

389-13621-09-00

1
Out of stock

22

MANIFOLD, INTAKE

389-13555-00-00

1
Out of stock

23

GASKET, VALVE SEAT

389-13622-01-00

1
Out of stock

24

SCREW, FLAT

98707-06025-00

—
Out of stock

25

BOLT,SOCKET

91317-08040-00

—

$5.68

In stock

26

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

27

WASHER(6TC)

92907-08200-00

—
Out of stock
