1974 Yamaha RD200 (RD200A) OIL Pump Diagram

← All diagrams

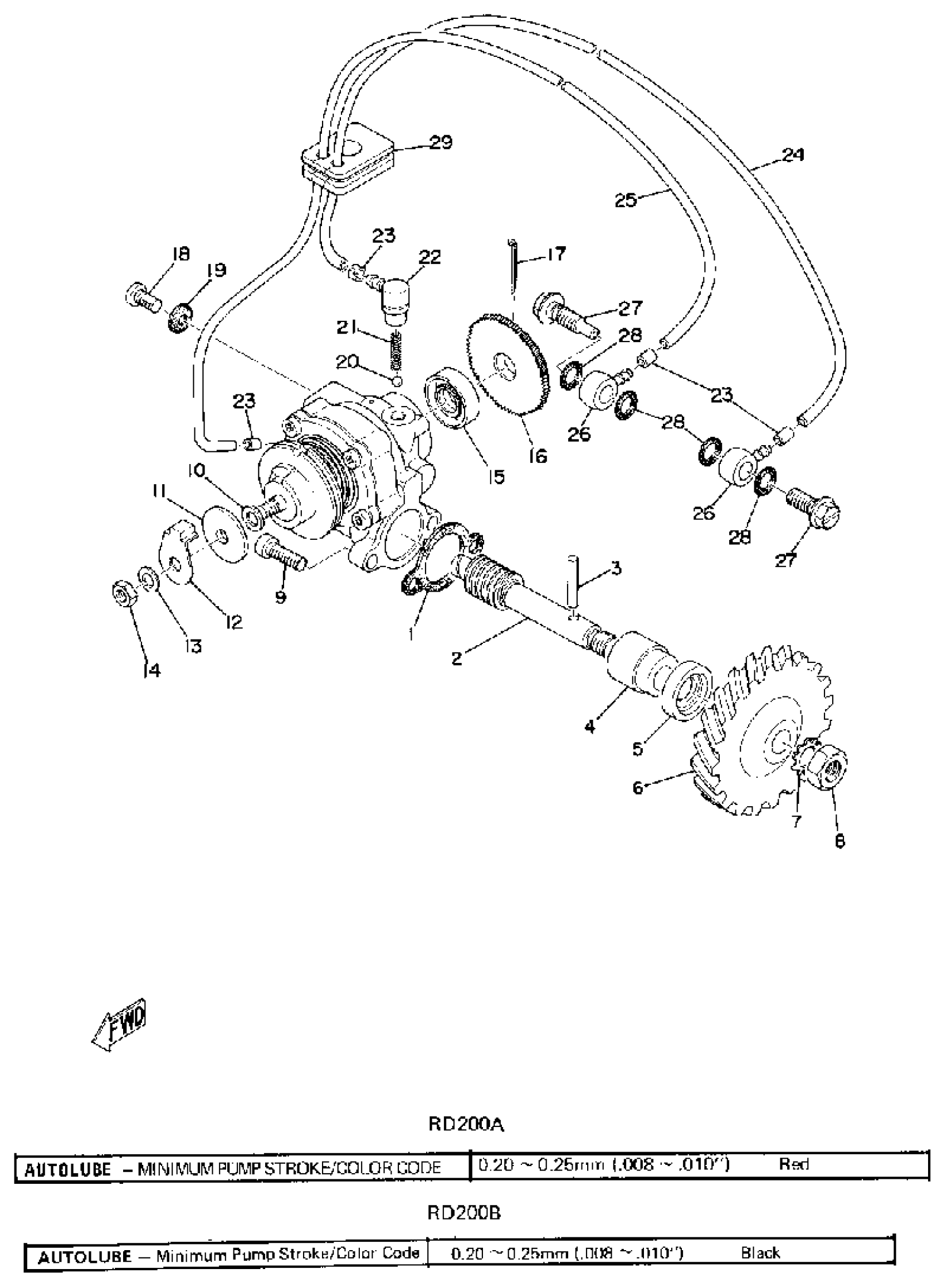

Find the part on the OIL Pump diagram for your 1974 Yamaha RD200 (RD200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha RD200 (RD200A) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(397-13101-02-00)

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM

(174-13175-00-00)

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

GEAR, PUMP DRIVE

(174-13178-00-00)

1
Out of stock

7

WASHER (688)

92990-08400-00

1

$3.46

In stock

8

. NUT

95380-08700-00

1

$3.07

In stock

9

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

10

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

11

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

12

COVER, AJST PULLEY

(402-13146-00-00)

1
Out of stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

16

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

17

. PIN, COTTER

91401-12018-00

1
Out of stock

18

SCREW, BIND

98980-04008-00

1

$3.26

In stock

19

GASKET 137131870000

90430-04004-00

—
Out of stock

20

BALL

93505-32002-00

—

$2.22

In stock

21

SPRING (278-13169-00)

90501-02018-00

—

$7.69

In stock

22

NOZZLE

353-13552-01-00

—
Out of stock

23

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

24

HOSE (L700)

90445-05M07-00

1
Out of stock

25

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

26

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

27

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

28

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

29

HOLDER, OIL PIPE

(293-13174-00-00)

1
Out of stock
