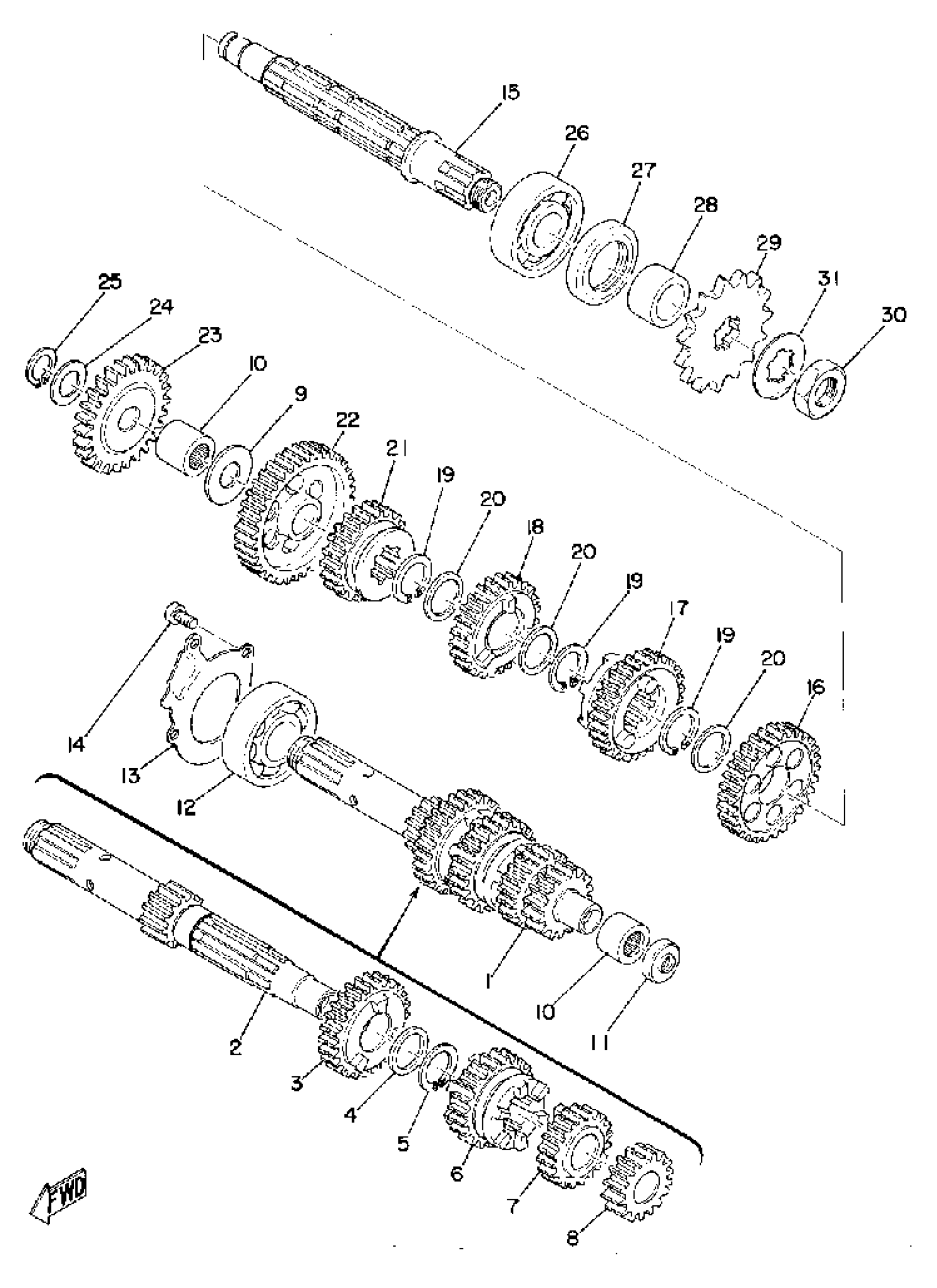

Yamaha RD200A (RD200) 1974 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

(397-17410-00-00)

Unavailable

2

AXLE, MAIN

(397-17411-00-00)

Unavailable

3

GEAR, 5TH PINION

(397-17151-00-00)

Unavailable

4

WASHER PLATE 132172160000

90201-20266-00

$9.49

5

CIRCLIP (525)

93410-20038-00

$3.76

6

GEAR, 4TH PINION

(397-17141-00-00)

Unavailable

7

GEAR, 3RD PINION

(397-17131-00-00)

Unavailable

8

GEAR, 2ND PINION

(397-17121-00-00)

Unavailable

9

SHIM, DRIVE AXLE

164-17427-00-06

$5.49

10

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

11

OIL SEAL(12E)

93109-08061-00

$7.49

12

BEARING(3BC)

93306-30437-00

$66.99

13

PLATE, COVER

(248-17471-01-00)

Unavailable

14

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

15

AXLE, DRIVE

(397-17421-00-00)

Unavailable

16

GEAR, 2ND WHEEL

(397-17221-01-00)

Unavailable

17

GEAR, 3RD WHEEL

(397-17231-00-00)

Unavailable

18

GEAR, 4TH WHEEL

(397-17241-00-00)

Unavailable

19

CIRCLIP (525)

93410-20038-00

$3.76

20

WASHER PLATE 132172160000

90201-20266-00

$9.49

21

GEAR, 5TH WHEEL

(397-17251-00-00)

Unavailable

22

GEAR, 1ST WHEEL

(174-17211-01-00)

Unavailable

23

GEAR, KICK IDLE

403-15651-00-00

Unavailable

24

WASHER

(132-15653-00-10)

Unavailable

24

WASHER

132-15653-00-12

Unavailable

24

WASHER

(132-15653-00-14)

Unavailable

25

CIRCLIP(13M)

99009-13400-00

Unavailable

26

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

27

OIL SEAL

93106-28043-00

Unavailable

28

COLLAR

90387-20346-00

Unavailable

29

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

29

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

29

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

29

SPROCKET,DRIVE 16T(10V1746160)

93822-16095-00

Unavailable

30

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

31

WASHER, LOCK (1L8)

90215-16127-00

Unavailable
