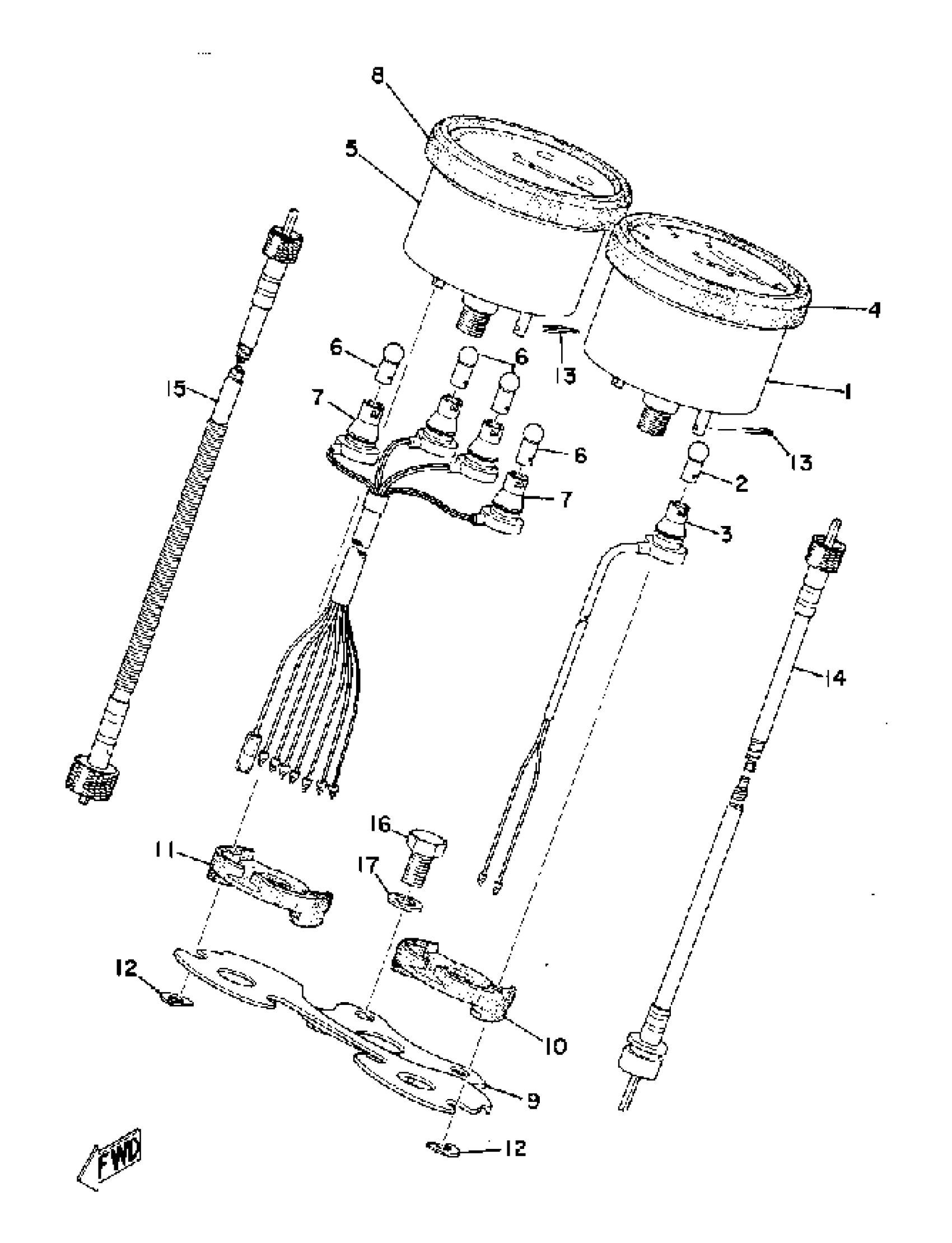

Yamaha RD200A (RD200) 1974 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

(397-83510-40-00)

Unavailable

2

BULB (12V-3.4W)

123-83516-21-00

$4.26

3

SOCKET, METER

(235-83536-21-00)

Unavailable

4

. DAMPER

336-83513-00-00

Unavailable

5

TACHOMETER ASSEMBLY

(397-83540-01-00)

Unavailable

6

BULB (12V-3.4W)

123-83516-21-00

$4.26

7

SOCKET CORD ASSEMBLY

(337-83520-00-00)

Unavailable

8

. DAMPER

336-83513-00-00

Unavailable

9

BRACKET, METER

(337-83519-00-33)

Unavailable

10

DAMPER

214-83523-00-00

Unavailable

11

DAMPER

237-83523-00-00

$9.99

12

WASHER 214835240000

90209-05029-00

Unavailable

13

CLIP (156-83525-00)

90468-10050-00

$3.05

14

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

$41.99

15

TACHOMETER CABLE

396-83560-01-00

Unavailable

16

BOLT(JA9)

90101-08691-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
