1974 Yamaha RD200 (RD200A) Side Cover BOX Diagram

← All diagrams

Find the part on the Side Cover BOX diagram for your 1974 Yamaha RD200 (RD200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

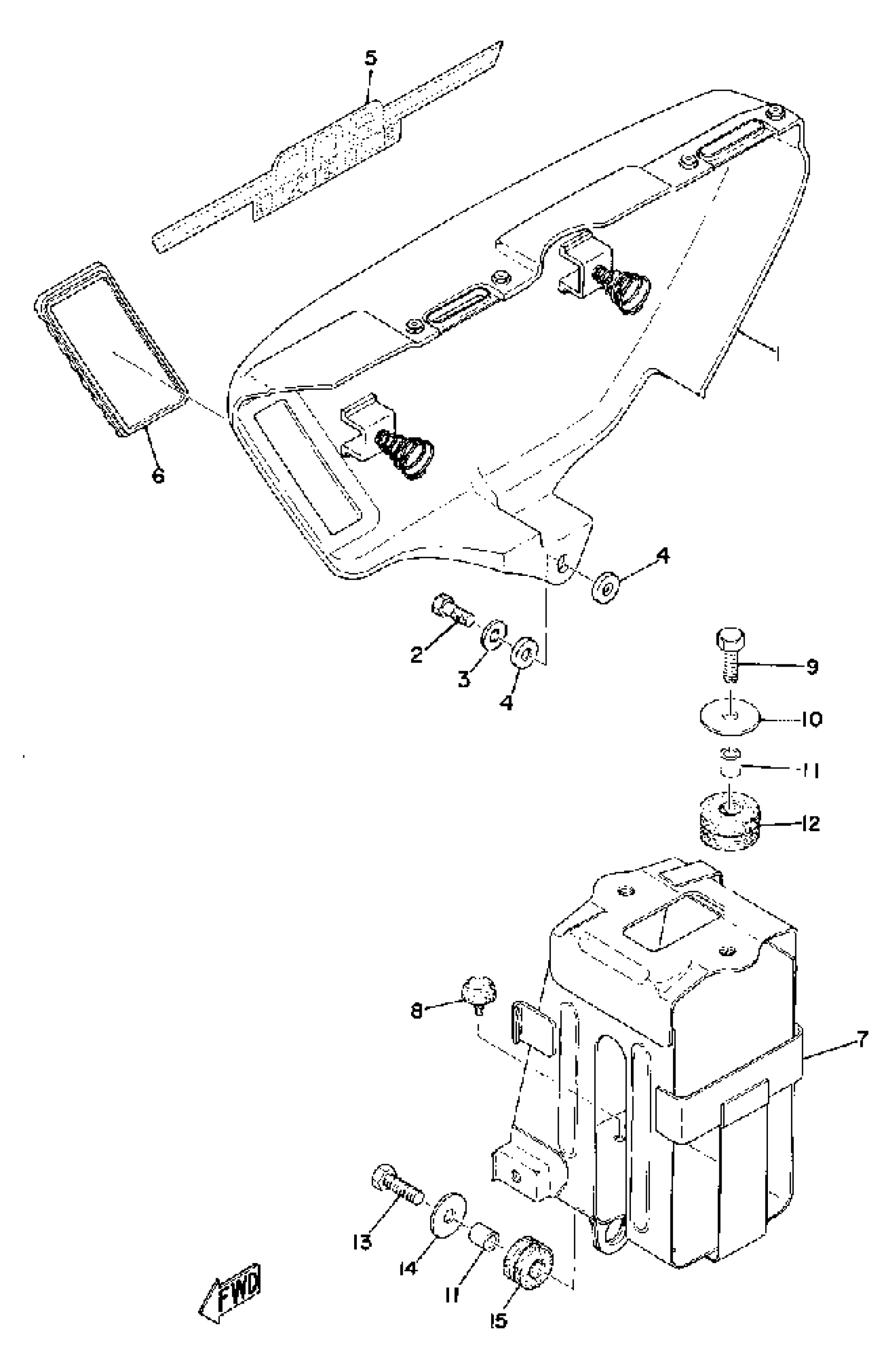

1974 Yamaha RD200 (RD200A) Side Cover BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

(397-21711-02-75)

1
Out of stock

1

COVER, SIDE 1

(397-21711-02-F7)

1
Out of stock

2

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

3

WASHER, PLATE (397)

90201-08100-00

1

$6.17

In stock

4

WASHER, PLATE (4L0)

90201-083A0-00

1

$6.91

In stock

5

EMBLEM 3

(397-21783-20-00)

1
Out of stock

5

EMBLEM 6

397-21786-10-00

1
Out of stock

6

MOLD 2

(398-21782-01-00)

1
Out of stock

7

BOX, BATT.

(397-21170-00-00)

1
Out of stock

8

DAMPER, SIDE COVER

141-21717-00-00

1

$6.48

In stock

9

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

10

WASHER PLATE 248217570000

90201-06074-00

1

$6.29

In stock

11

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

12

DAMPER

248-21717-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

14

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

15

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock
