1974 Yamaha RD200 (RD200A) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1974 Yamaha RD200 (RD200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

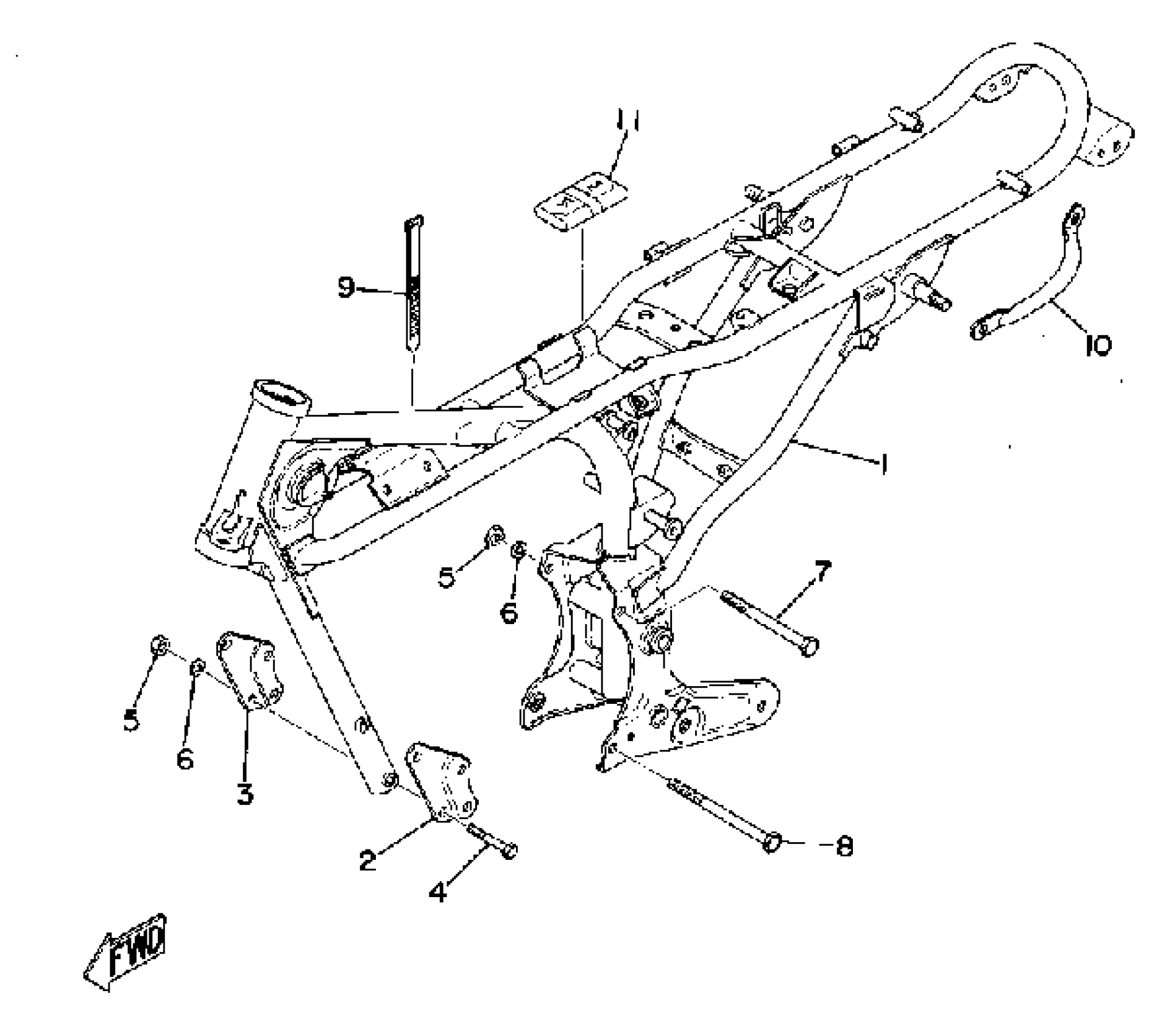

1974 Yamaha RD200 (RD200A) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(398-21110-01-33)

1
Out of stock

2

STAY, ENGINE 2

(337-21315-00-00)

1
Out of stock

3

STAY, ENGINE 3

(337-21316-00-00)

1
Out of stock

4

BOLT, FLANGE

95817-08060-00

1

$3.28

In stock

5

NUT(6L2)

95333-08600-00

1

$3.20

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BOLT

90109-08386-00

—
Out of stock

7

BOLT, FLANGE

95817-08115-00

1

$6.57

In stock

8

BOLT, HEXAGON (582)

90101-08286-00

1
Out of stock

9

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

10

HANDLE, STANDING

(397-21165-00-93)

1
Out of stock

11

TOOL KIT

(396-28100-10-00)

1
Out of stock
← Tail Lamp Front Fender Rear Fender →
