1974 Yamaha RD200 (RD200A) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1974 Yamaha RD200 (RD200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

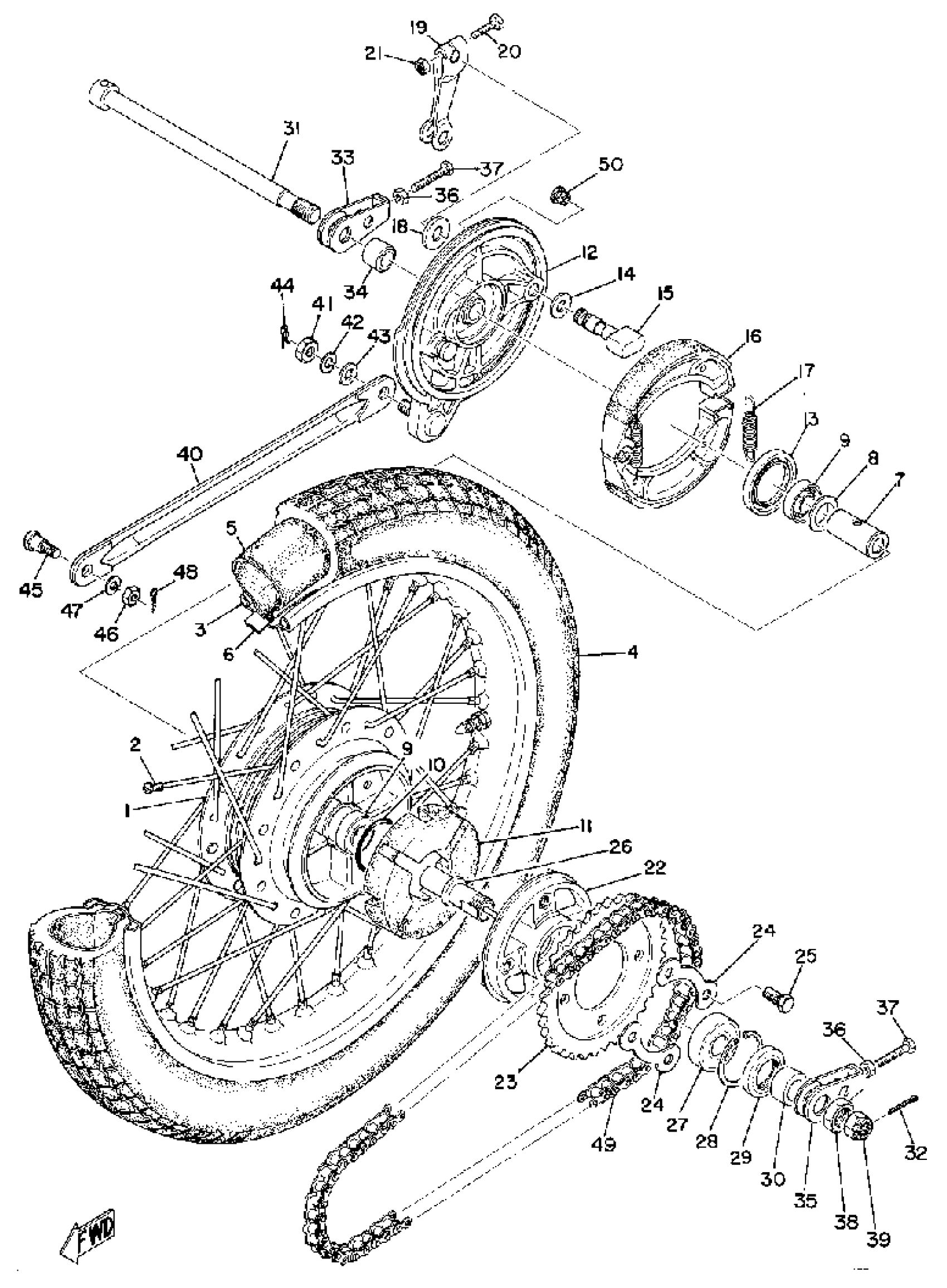

1974 Yamaha RD200 (RD200A) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

(174-25311-00-00)

1
Out of stock

1

. JOINT, CHAIN

94680-22001-00

1
Out of stock

2

SPOKE SET, REAR

(141-25304-00-00)

1
Out of stock

2

SPOKE SET, INNER 2

(141-25396-90-00)

1
Out of stock

2

SPOKE SET, OUTER 2

(141-25397-90-00)

1
Out of stock

3

RIM 1.60X18

(94416-18013-00)

1
Out of stock

4

300X18 YOKO Y93C

(94130-18310-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1
Out of stock

7

SPACER 136253170000

90560-15136-00

—
Out of stock

8

FLANGE, SPACER

146-25116-00-00

1
Out of stock

9

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

1
Out of stock

10

O-RING (132)

93210-41042-00

1
Out of stock

11

. DAMPER

174-25364-00-00

1
Out of stock

12

BRAKE SHOE PLATE ASSY

(397-25320-10-00)

1
Out of stock

13

OIL SEAL, S-TYPE

93101-42018-00

1
Out of stock

14

SHIM, CAMSHAFT

(136-25153-00-00)

1
Out of stock

15

CAMSHAFT

(136-25351-01-00)

1
Out of stock

16

BRAKE SHOE KIT

3GW-W253A-00-00

—
Out of stock

17

SPRING, TENSION 2462533300

90507-20002-00

—
Out of stock

18

SEAL, CAMSHAFT

137-25159-00-00

1
Out of stock

19

LEVER, CAMSHAFT

(337-25355-00-00)

1
Out of stock

20

BOLT, HEXAGON

97017-06030-00

—
Out of stock

21

NUT, HEXAGON

95380-06600-00

1
Out of stock

22

CLUTCH, HUB

(174-25366-01-00)

1
Out of stock

23

SPROCKET, DRIVN 35T

(174-25435-20-00)

1
Out of stock

23

SPROCKET, DRIVN 36T

174-25436-20-33

1
Out of stock

23

SPROCKET, DRIVN 37T

(174-25437-20-33)

1
Out of stock

24

WASHER

148-25412-00-00

1
Out of stock

25

BOLT, WASHER BASED

90105-10005-00

1
Out of stock

26

AXLE, SPROCKET

(174-25387-00-00)

1
Out of stock

27

BEARING (22K)

93306-20446-00

—
Out of stock

28

CIRCLIP(48Y)

99009-47500-00

—
Out of stock

29

OIL SEAL, DD-TYPE

(93106-30008-00)

1
Out of stock

30

COLLAR

(90387-20160-00)

1
Out of stock

31

AXLE, WHEEL

(397-25381-00-00)

1
Out of stock

32

PIN, COTTER

91490-30030-00

—
Out of stock

33

PULLER, CHAIN 2

(174-25389-00-00)

1
Out of stock

34

COLLAR

(90387-26197-00)

1
Out of stock

35

PULLER, CHAIN 1

174-25388-00-00

1
Out of stock

36

NUT, HEXAGON

95380-06600-00

1
Out of stock

37

BOLT HEXAGON 167253790000

90101-06016-00

—
Out of stock

38

NUT, HEXAGON

90170-20167-00

—
Out of stock

39

NUT, CASTLE(2UJ)

90171-14056-00

—
Out of stock

40

BAR, TENSION

(256-25371-00-00)

1
Out of stock

41

NUT (682)

95380-10700-00

1
Out of stock

42

YBS67-12 WASHER,SPRING

92990-12100-00

—
Out of stock

43

958-69527-00 WASHER, PLAIN

92990-10200-00

—
Out of stock

44

CLIP 136253750000

90468-12006-00

—
Out of stock

45

BOLT

90109-08375-00

1
Out of stock

46

NUT(6L2)

95333-08600-00

—
Out of stock

47

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

48

PIN, COTTER

91490-20025-00

—
Out of stock

49

428T 112L

(94514-28112-00)

1
Out of stock

50

GROMMET (397)

90480-10068-00

—
Out of stock

51

BRAKE SHOE PLATE ASSY

(397-25320-10-00)

1
Out of stock

52

GROMMET (397)

90480-10068-00

—
Out of stock

53

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock
