1974 Yamaha RD200 (RD200A) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1974 Yamaha RD200 (RD200A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

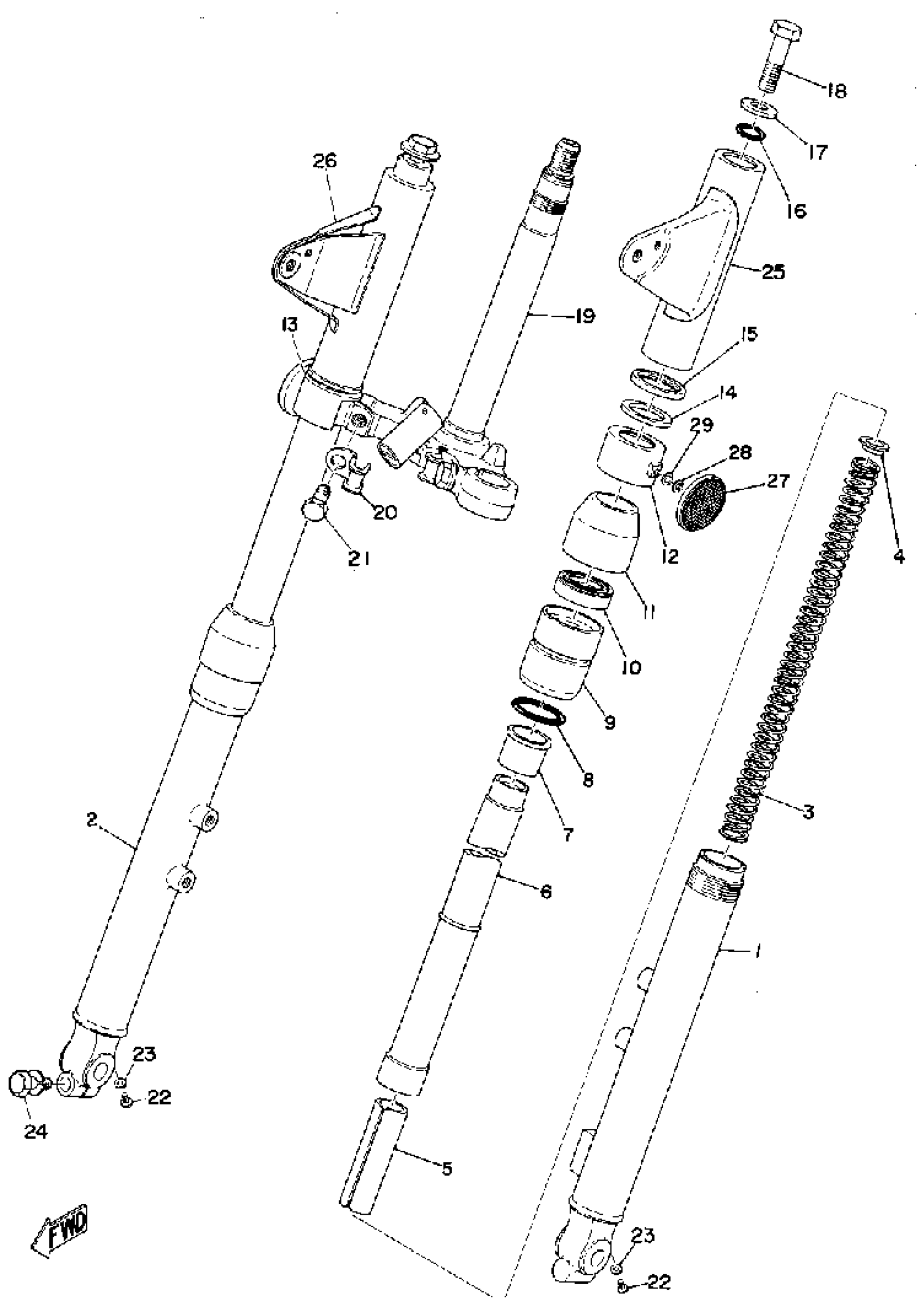

1974 Yamaha RD200 (RD200A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(337-23101-90-00)

1
Out of stock

1

TUBE, OUTER 1

(337-23126-60-93)

1
Out of stock

2

TUBE, OUTER 2

(337-23136-60-93)

1
Out of stock

3

SPRING, FRONT FORK

(337-23141-60-00)

1
Out of stock

4

SEAT, SPRING UPPER

(337-23142-60-00)

1
Out of stock

5

SPACER

(315-23118-50-00)

1
Out of stock

6

TUBE, INNER 1

(337-23124-60-00)

1
Out of stock

7

. METAL, SLIDE 1

(137-23125-01-00)

1
Out of stock

8

. O-RING

137-23147-00-00

1
Out of stock

9

OUTER NUT

(193-23150-40-00)

1
Out of stock

10

OIL SEAL

137-23145-01-00

1

$38.06

In stock

11

SEAL, DUST

248-23144-00-00

1

$28.22

In stock

12

COVER, OUTER 1

(337-23122-50-00)

1
Out of stock

13

COVER, OUTER 2

(337-23132-50-00)

1
Out of stock

14

. GASKET

(437-23163-00-00)

1
Out of stock

15

GUIDE, COVER LOWER

(337-23116-60-00)

1
Out of stock

16

GASKET

(337-23114-60-00)

1
Out of stock

17

WASHER, CAP

207-23112-00-00

—

$21.37

In stock

18

BOLT, CAP

(337-23111-60-00)

1
Out of stock

19

UNDER BRACKET

(337-23340-60-33)

1
Out of stock

20

HOLDER, CABLE 1

(183-23318-00-00)

1
Out of stock

21

BOLT 1

122-23346-02-00

—

$6.25

In stock

22

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

23

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

24

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

25

COVER, UPPER 1

(337-23121-60-75)

1
Out of stock

25

COVER, UPPER 1

(337-23121-60-F7)

1
Out of stock

26

COVER, UPPER 2

(337-23131-60-F7)

1
Out of stock

26

UNAVAILABLE IN PRICE BOOK

337-23136-60-75

1
Out of stock

27

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

28

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

29

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock
