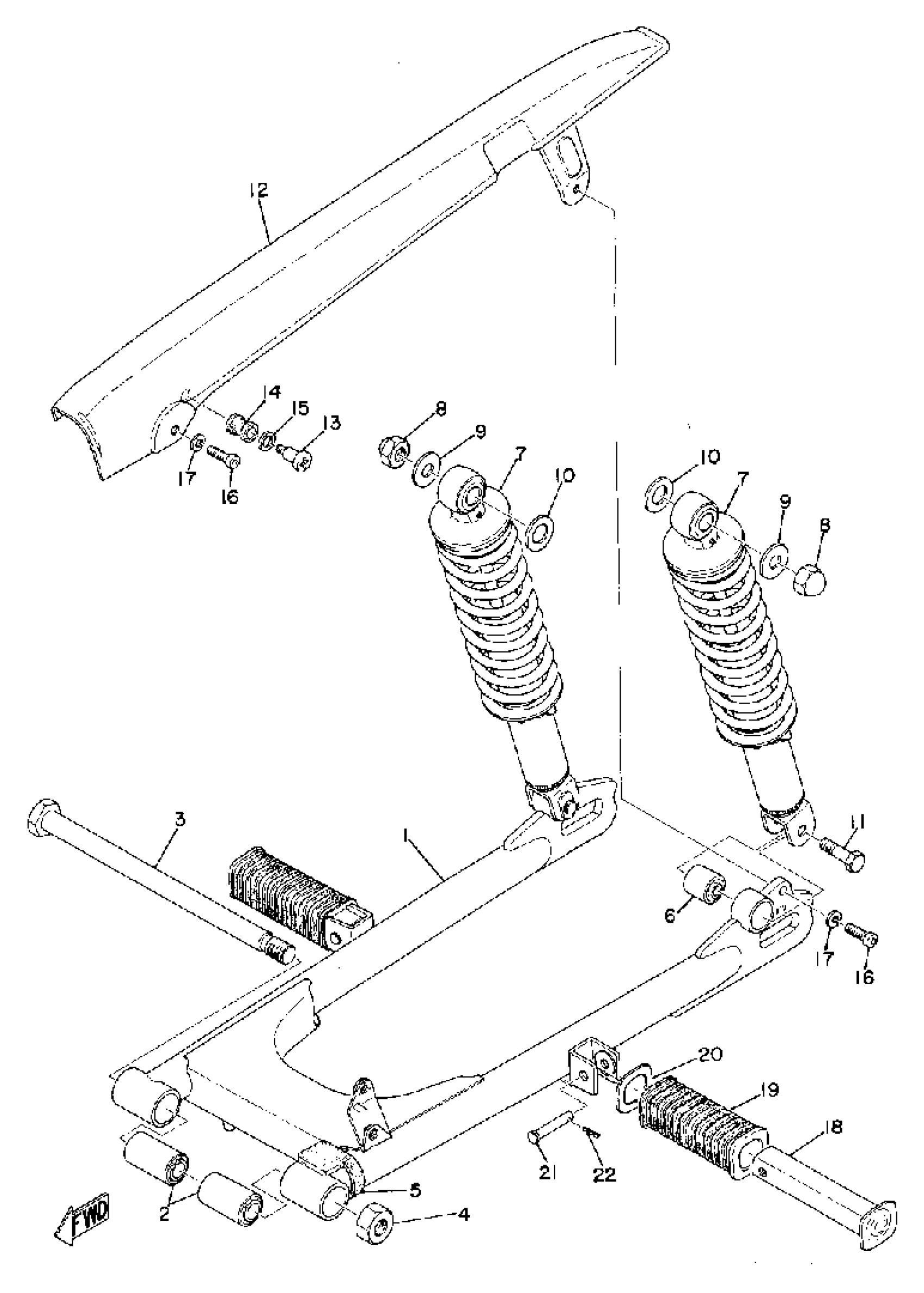

Yamaha RD200A (RD200) 1974 REAR ARM REAR CUSHION CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(337-22110-00-33)

Unavailable

2

BUSH 1

174-22123-00-00

Unavailable

3

SHAFT, PIVOT

(337-22141-00-00)

Unavailable

4

NUT

(95303-14600-00)

Unavailable

5

SEAL, GUARD

(173-22151-00-00)

Unavailable

6

BUSHING, REAR CUSHION

164-22216-00-00

$13.49

7

SHK/ABS ASSEMBLY, REAR

(337-22210-20-00)

Unavailable

8

NUT, CROWN (650)

95380-10800-00

Unavailable

9

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

10

WASHER, PLATE (3X3)

90201-15797-00

$9.49

11

BOLT, DOME HEAD

(90106-08027-00)

Unavailable

12

CASE, CHAIN

(337-22311-00-93)

Unavailable

13

SCREW, SPEC''L SHAPE

(90149-06012-00)

Unavailable

14

DAMPER, CHAIN CASE

(183-22332-01-00)

Unavailable

15

WASHER, PLATE

(90201-07079-00)

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

. FOOTREST, REAR 1

168-27431-10-00

Unavailable

19

. COVER, RR FOOTREST

307-27433-00-00

Unavailable

20

WASHER, SPEC''L SHAP

(90209-21031-00)

Unavailable

21

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

22

PIN, COTTER

91490-16020-00

Unavailable
