Description

Price

1

CRANK,KICK

278-15611-00-00

Unavailable

2

BOSS, KICK CRANK

337-15621-01-00

Unavailable

3

COVER, KICK LEVER

156-15618-01-00

$7.99

4

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

5

WASHER PLATE 278156130000

90201-15234-00

$8.49

6

CIRCLIP

99006-10600-00

$9.49

7

BOLT(3DM)

97024-06020-00

$8.49

8

BALL (12R)

93507-32031-00

$4.73

9

KICK AXLE ASSEMBLY

337-15660-00-00

Unavailable

10

CLIP 315156870000

90468-26048-00

$8.49

11

GEAR, KICK

251-15641-01-00

Unavailable

12

WASHER, PLATE(59W)

90201-253K0-00

$8.49

13

CIRCLIP (256)

93410-25017-00

$3.76

14

GUIDE, KICK SPRING

132-15664-01-00

$10.99

15

SPRING TORSION 304156650000

90508-26136-00

Unavailable

16

COVER, KICK SPRING

132-15676-01-00

Unavailable

17

CIRCLIP(1AR)

99009-15400-00

Unavailable

18

OIL SEAL (15X26X6-102)

93109-15001-00

Unavailable

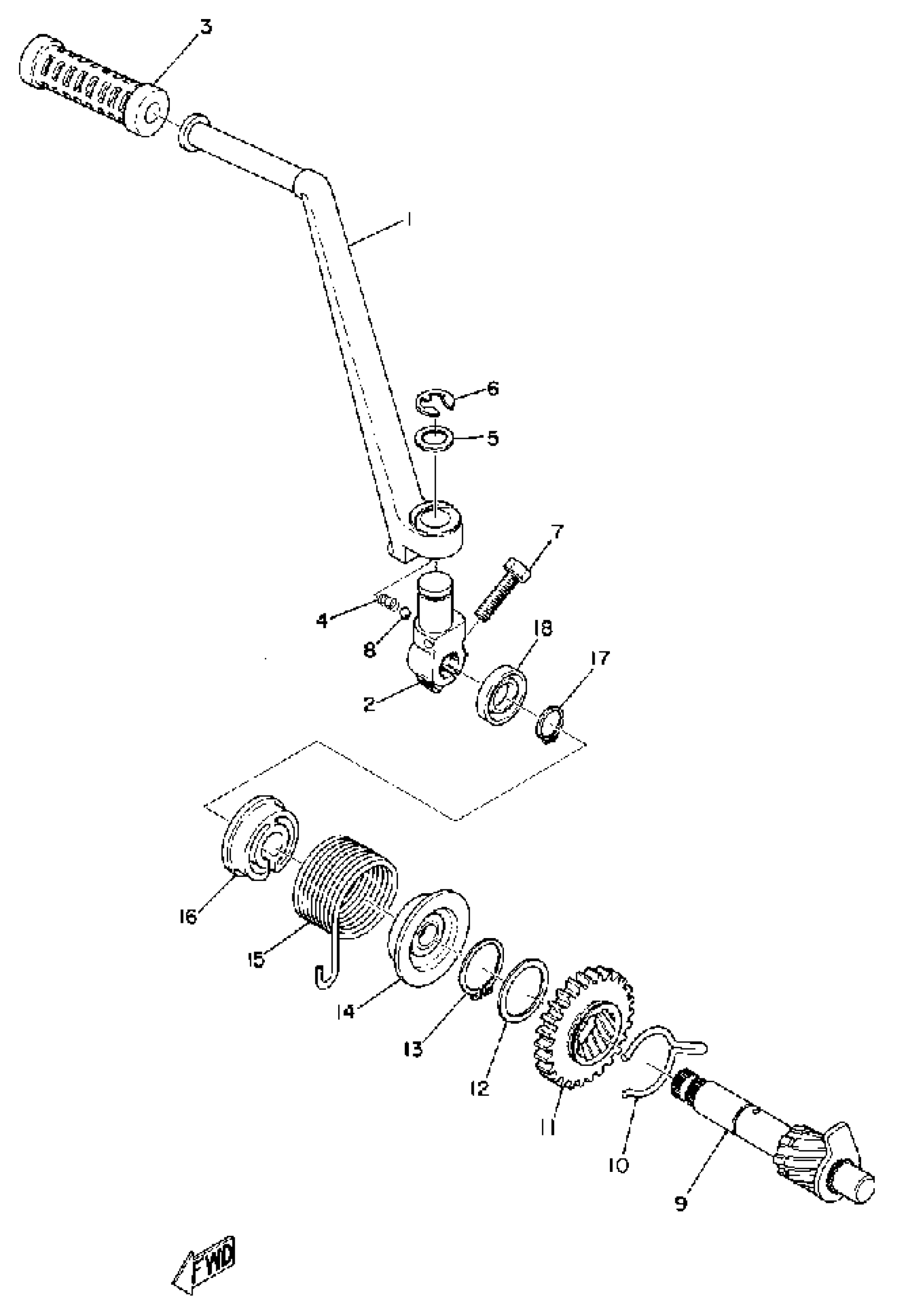

Yamaha RD200A (RD200) 1974 KICK STARTER Diagram

CRANK,KICK

BOSS, KICK CRANK

COVER, KICK LEVER

SPRING COMPRESSION278156220000

WASHER PLATE 278156130000

CIRCLIP

BOLT(3DM)

BALL (12R)

KICK AXLE ASSEMBLY

CLIP 315156870000

GEAR, KICK

WASHER, PLATE(59W)

CIRCLIP (256)

GUIDE, KICK SPRING

SPRING TORSION 304156650000

COVER, KICK SPRING

CIRCLIP(1AR)

OIL SEAL (15X26X6-102)
